Detailed Specifications

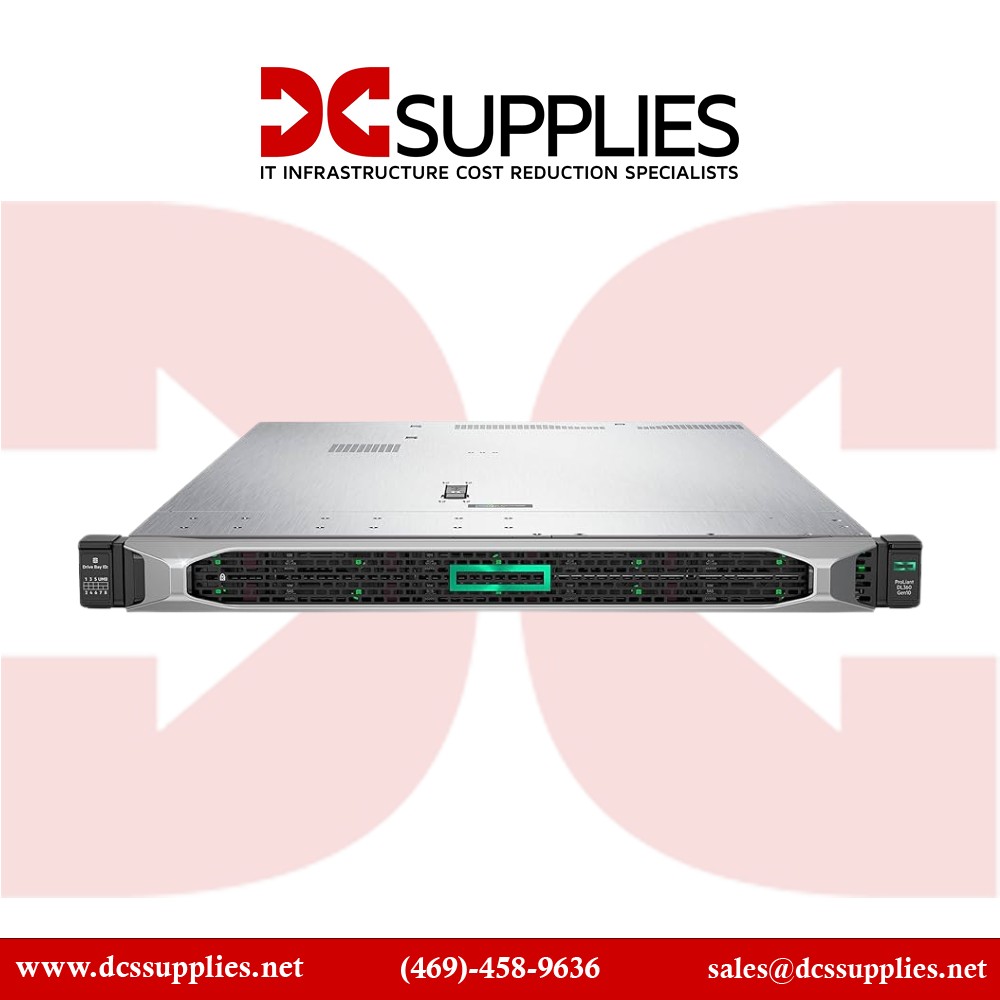

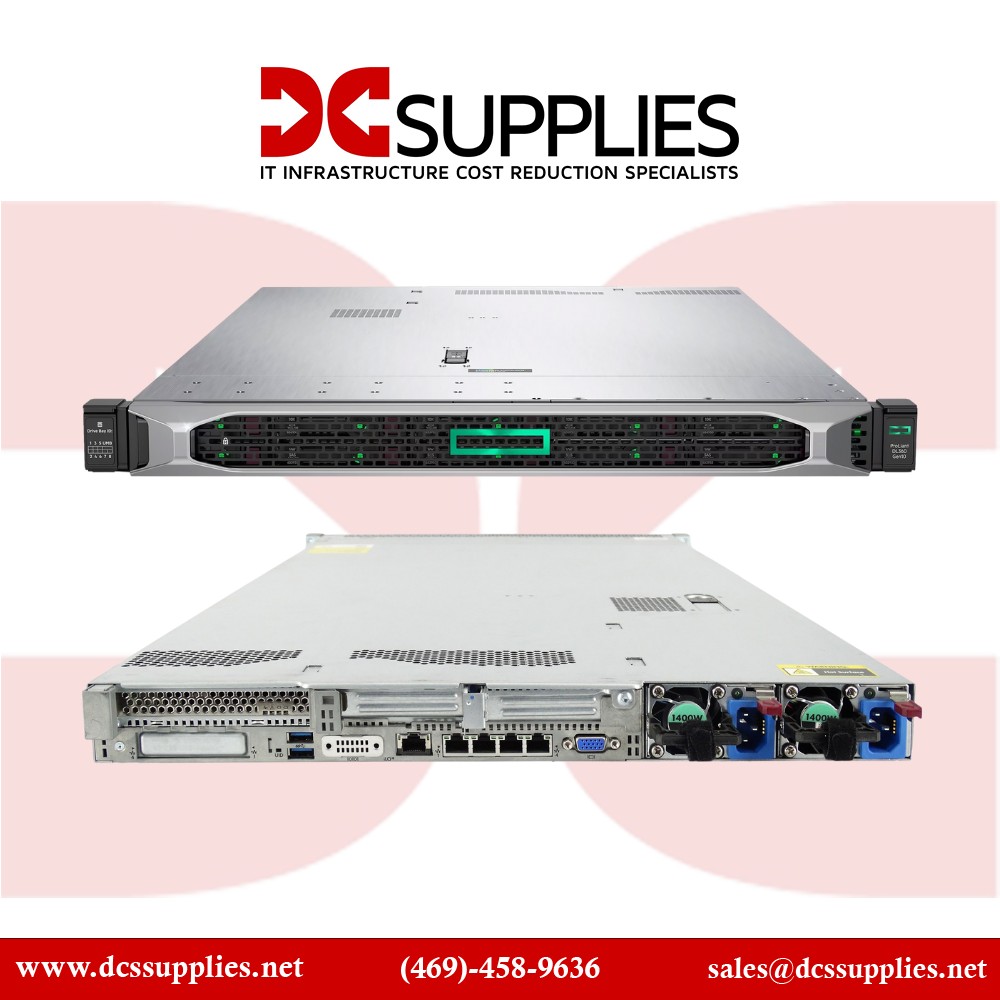

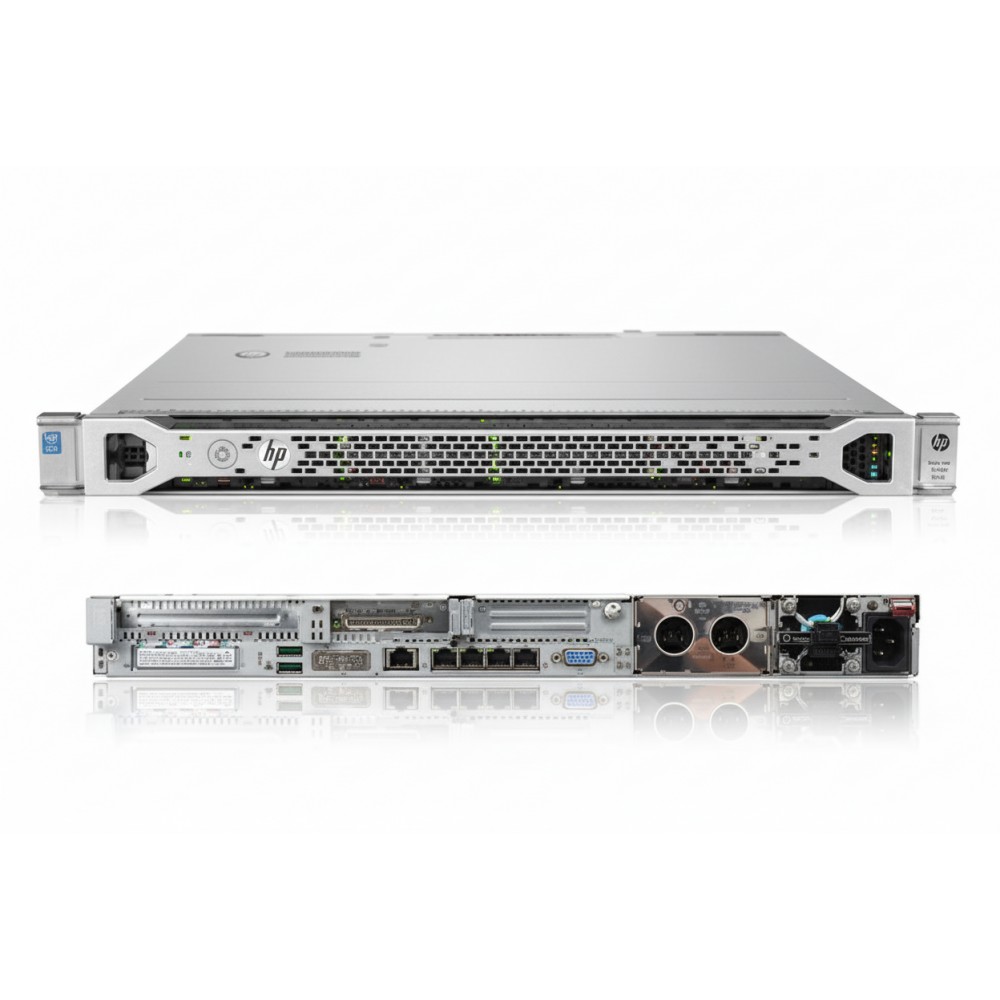

HPE 861540-S01 ProLiant DL360 Gen9 1U Server
Overview
The HPE 861540-S01 is a 1 U rack-mount server built for infrastructure teams requiring dense general-purpose compute in space-constrained environments. This unit ships with a single Intel Xeon E5-2697 v4 18-core processor running at 2.3 GHz and supports dual-processor configurations for scaling. It accommodates up to 24 DIMM slots of DDR4 memory and eight hot-plug 2.5-inch SFF drive bays, making it suitable for virtualization, database and mixed-workload deployments in data centres, campus racks or edge installations. Integrated management via iLO and support for HPE OneView enable systems-management integration within broader infrastructure deployments.
Key Features
18-core Intel Xeon E5-2697 v4 processor installed, supports second socket.
Eight 2.5-inch SFF hot-plug drive bays for SAS/SATA/SSD storage.
Smart Array P440ar controller with 12 Gb/s SAS support.
Up to 24 DIMM slots enabling large DDR4 memory configurations.
Embedded 4-port 1 GbE NIC and iLO management for remote hardware control.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | 861540-S01 |
| Product Type | ProLiant DL360 Gen9 1U Rack Server |
| Installed Processor | Intel Xeon E5-2697 v4 (2.3 GHz, 18-core) |
| Maximum Processors Supported | Up to 2 sockets |
| Memory Slots | 24 DIMM slots |
| Maximum Memory Supported | Up to 3 TB DDR4 |
| Drive Bays | 8 × 2.5-inch SFF hot-plug |
| Storage Controller | Smart Array P440ar (2 GB FBWC) |
| Embedded Network | 4 × 1 Gb Ethernet (331i) |
| Form Factor (H×W×D) | 1.7 in × 17.1 in × 27.5 in |
| Weight (empty/approximate) | ~27.0 lbs |
| Power Supply (typical) | Dual Flex-Slot Platinum hot-plug |
| Rack Units | 1U |
| Platform Management | iLO integrated, OneView compatible |
