Detailed Specifications

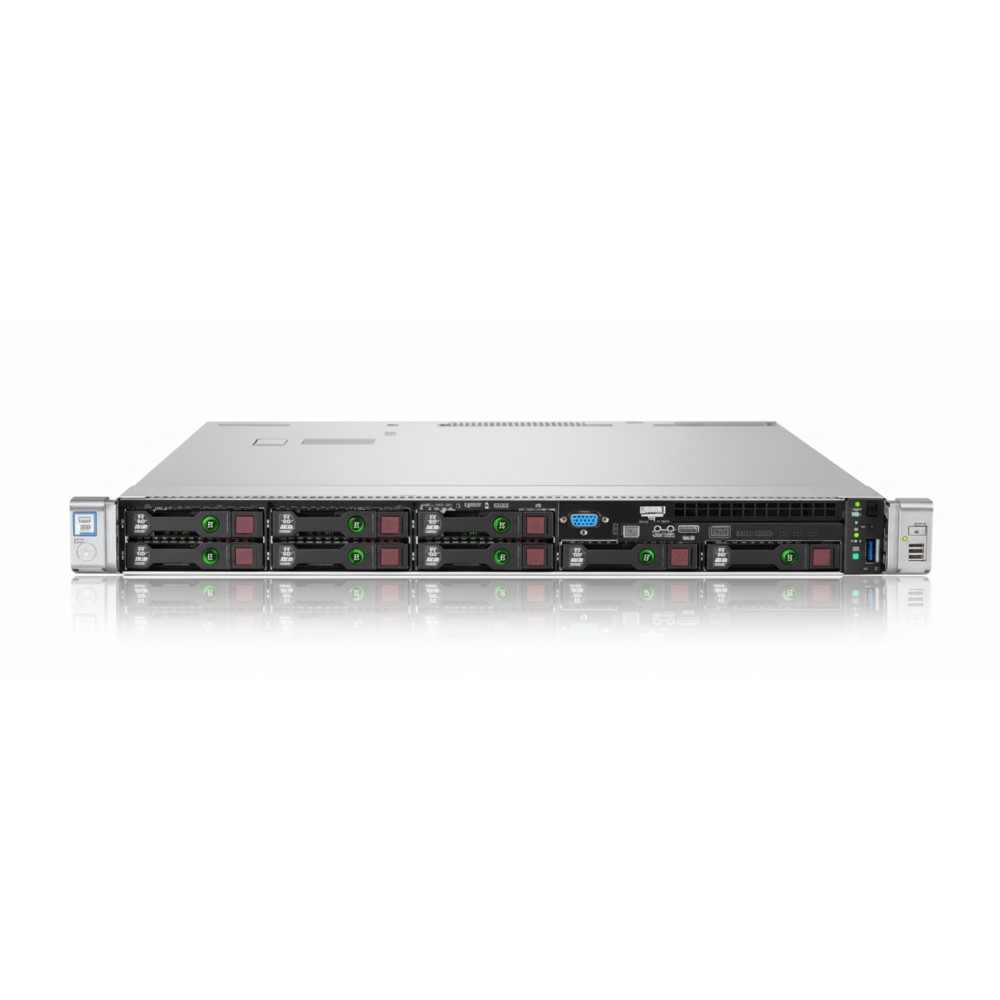

HPE 849455-S01 Rack Server 1U DL360 Gen9
Overview
The HPE 849455-S01 is a 1U rack server from the ProLiant DL360 Gen9 family designed for enterprise IT deployments where density, flexibility and manageability are key. Engineers and IT infrastructure teams use it to deploy general-purpose compute in data centres, virtualisation clusters or IT back-ends, addressing constrained rack space while supporting scalable memory and storage. This particular configuration ships with a single Intel Xeon E5-2620 v4 processor (2.1 GHz, 8-core) and 16 GB of DDR4 registered memory out-of-box, together with an H240ar Smart Host Bus Adapter and a 500 W power supply. It fits standard 19-inch rack rails and is suitable for edge or campus data centre racks where 1U form-factor matters. It integrates remote management via iLO and supports HPE OneView for lifecycle automation, making it usable with existing HPE management infrastructures.
Key Features
Single-processor Intel Xeon E5-2620 v4 (2.1 GHz, 8-core) pre-installed.
16 GB DDR4 Registered memory included; supports up to 24 DIMMs.
Eight small form-factor (SFF) hot-plug drive bays in 1U chassis.
Integrated H240ar 12 Gb/s Smart Host Bus Adapter for SAS/SATA.
Embedded 4×1 GbE network controller plus FlexibleLOM slot for I/O expansion.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | 849455-S01 |
| Product Type | Rack Server / 1U ProLiant DL360 Gen9 |
| Processor (installed) | Intel Xeon E5-2620 v4, 2.1 GHz, 8-core |
| Supported Processors | Up to 2 processors from E5-2600 v4 series |
| Memory (included) | 16 GB DDR4 Registered |
| Maximum Memory Supported | Up to 3 TB |
| Drive Bays | 8 × SFF (2.5-inch) |
| Storage Controller | H240ar Smart Host Bus Adapter |
| Embedded Network | 4×1 GbE + FlexibleLOM slot |
| Power Supply | 500 W Flex-Slot Platinum |
| Form Factor (H×W×D) | 1.7 in × 17.1 in × 27.5 in |
| Weight (approx) | ~33.3 lb (15.31 kg) |
| Rack Units | 1U |
| Warranty | 3-year parts, 3-year labour, on-site (standard) |
