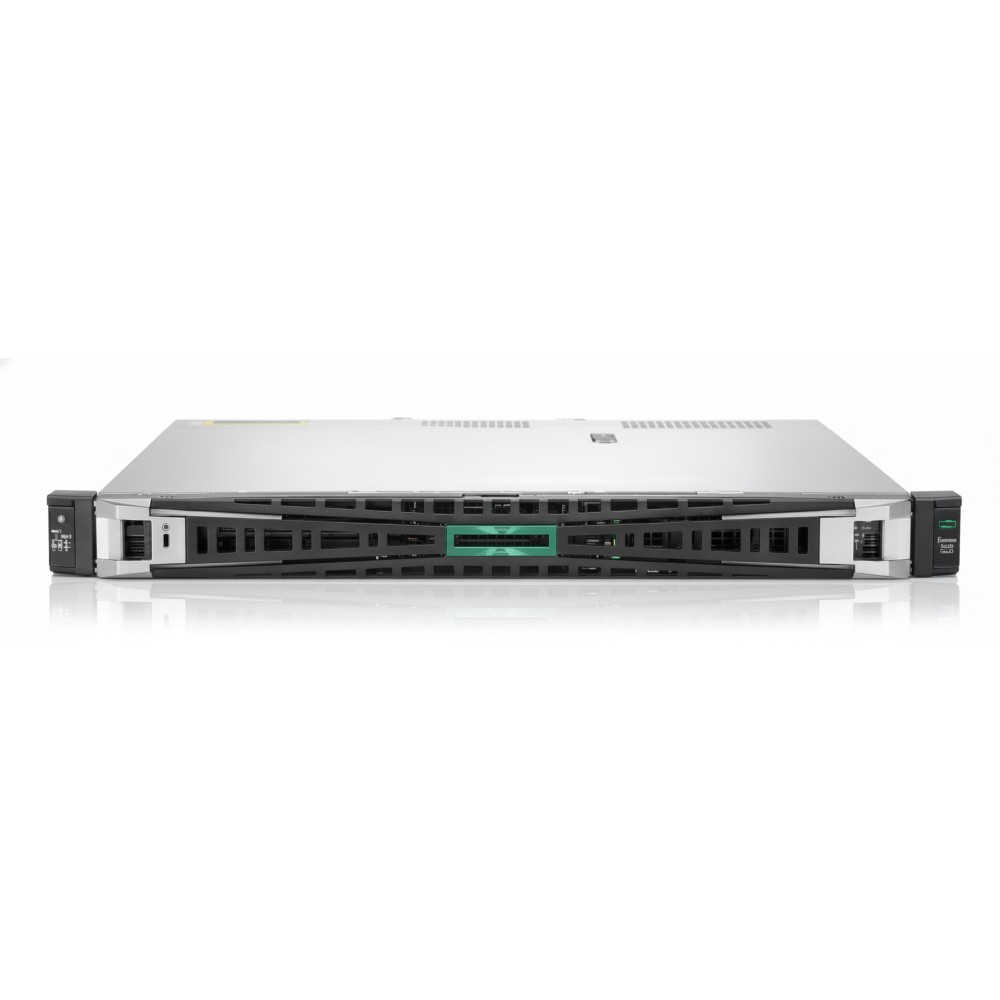

HPE P65396-B21 ProLiant DL20 Gen11 High Performance - rack-mountable Xeon E-2436 2.9 GHz - 16 GB - no HDD View larger

HPE P65396-B21 ProLiant DL20 Gen11 High Performance - rack-mountable Xeon E-2436 2.9 GHz - 16 GB - no HDD

P65396-B21

New

"1U Rack Server with Xeon E-2436 and 16GB RAM"

×




Detailed Specifications

HPE P65396-B21 ProLiant DL20 Gen11 1U Rack Server

Overview

The HPE P65396-B21 is a dense and compact 1U rack server from the ProLiant DL20 Gen11 family, engineered for exceptional value and performance. This server is the ideal platform for growing businesses, enterprise branch offices, and service providers looking for enterprise-class capabilities in a space-constrained footprint. It directly addresses the need for a reliable, secure, and affordable server to run a variety of workloads, from light applications to more demanding business requirements. At its core, this ProLiant DL20 Gen11 configuration is powered by a 6-core Intel Xeon E-2436 processor, providing a robust foundation for essential business applications. It is equipped with 16 GB of high-speed DDR5 ECC memory, which enhances data integrity and system stability. The server leverages a PCIe 5.0 slot for greater I/O bandwidth and features an embedded Intel VROC SATA controller to manage the four internal small form factor (SFF) drive bays, offering flexible storage options. With a short-depth chassis measuring just over 15 inches, this server is perfectly suited for installation in shallow racks or non-traditional IT environments. Deployment and lifecycle management are simplified through the integrated HPE iLO 6 controller, providing secure remote access and control. Security is further hardened by the HPE Silicon Root of Trust, which creates an immutable fingerprint in the silicon to ensure the server only boots verified, untampered firmware.

Key Features

  • Intel Xeon E-2436 6-core 2.90 GHz CPU for SMB tasks.
  • 16 GB of high-speed DDR5-4800 ECC UDIMM memory.
  • Compact 1U short-depth chassis for flexible deployment.
  • Four SFF hot-swap drive bays with Intel VROC support.
  • Integrated HPE iLO 6 for simplified remote management.

Specifications

SpecificationValue
Brand HPE
Part Number P65396-B21
Product Type 1U Rack Server
Processor Intel Xeon E-2436 (6-core, 2.90 GHz, 18MB Cache)
Installed RAM 16 GB DDR5 SDRAM
Maximum RAM 128 GB
Drive Bays 4 x 2.5-inch SFF Hot-Swap SATA
Storage Controller Embedded Intel VROC SATA
Network Controller HPE Embedded 1Gb 4-port BCM5719 Adapter
Management HPE iLO 6 Standard
Power Supply 1 x 500W Flex Slot Platinum Hot Plug
Height 1.70 in
Width 17.11 in
Depth 15.05 in
Weight 22.05 lbs
