Detailed Specifications

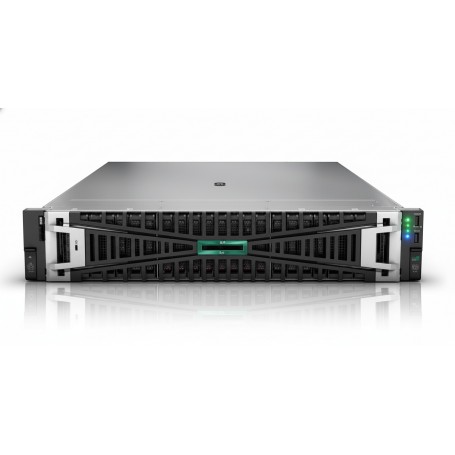

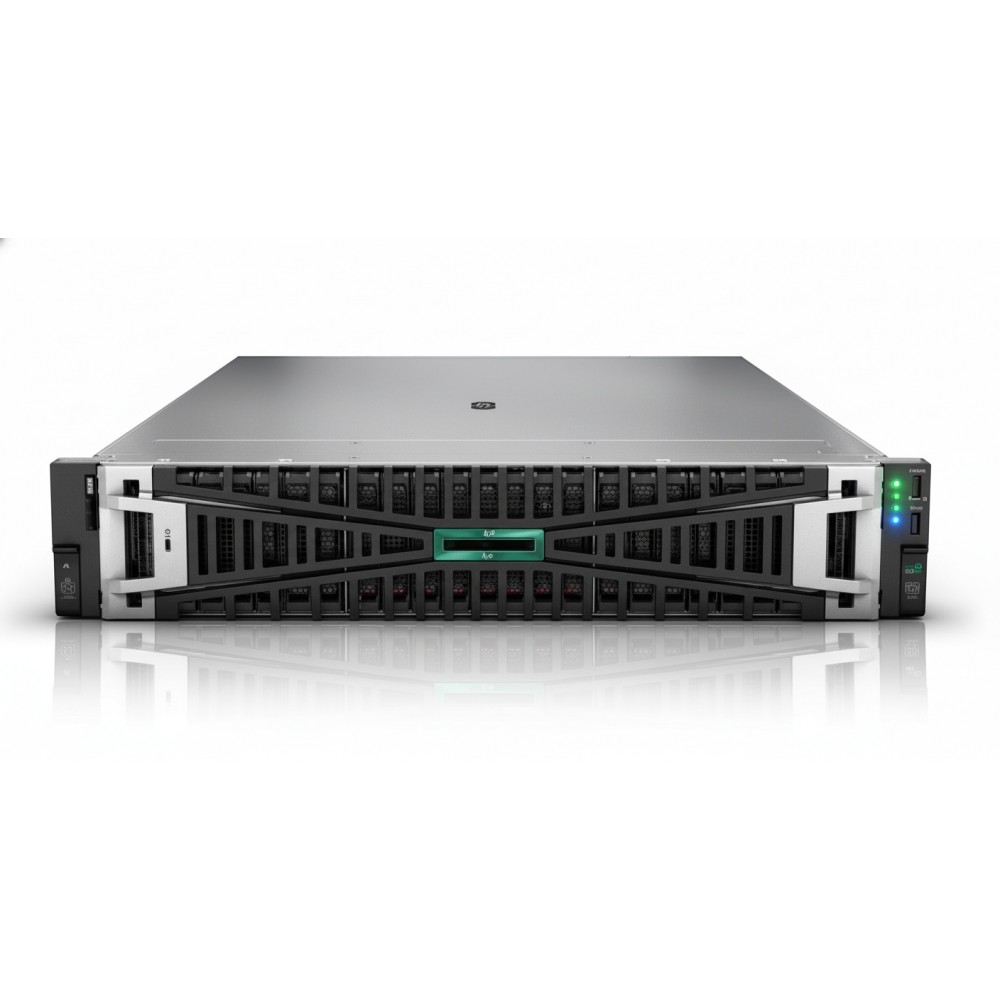

HPE P71681-005 ProLiant DL380 Gen11 Server
Overview
The HPE P71681-005 is a 2-socket-capable ProLiant DL380 Gen11 rack server, configured with a single Intel Xeon Silver 6526Y (16 cores) and 128 GB of DDR5 memory, providing a strong compute base for virtualization, database, or general-purpose enterprise workloads. It includes an NS204i-u Gen11 NVMe boot device, supporting 8 × 2.5″ SFF hot-swap bays, allowing flexible drive configurations. Redundant power is provided by twin 1000 W Flex Slot power supplies for high availability. Management, diagnostics, and firmware control are handled via HPE iLO 6.
Key Features
16-core Intel Xeon Silver 6526Y, Gen11 architecture
128 GB DDR5-4800 Registered (pre-installed)
8 × 2.5″ SFF hot-swap drive bays
NS204i-u Gen11 NVMe boot / storage controller
Dual 1000 W Flex Slot hot-plug power supplies
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | P71681-005 |
| Product Type | Rack Server, 2U |
| Processor Installed | Intel Xeon Silver 6526Y, 16 cores, 2.80 GHz |
| Processor Supported (Max) | Up to 2 × Xeon Scalable (dual-socket) |
| Memory Installed | 128 GB DDR5-4800 |
| Memory Slots | 32 DIMM slots |
| Maximum Memory Supported | 8 TB DDR5 |
| Drive Bays | 8 × 2.5″ SFF |
| Storage Controller | HPE NS204i-u Gen11 NVMe / boot controller |
| Network Adapter | Broadcom BCM5719, 4 × 1 GbE BASE-T |
| Form Factor (H × W × D) | 3.44″ × 17.64″ × 28.62″ |
| Weight | ~72.75 lbs |
| Power Supply | 2 × 1000 W Flex Slot (redundant) |
| Rack Units | 2U |
| Management | HPE iLO 6 |
| Warranty | 3-year parts, labor, on-site |
