Detailed Specifications

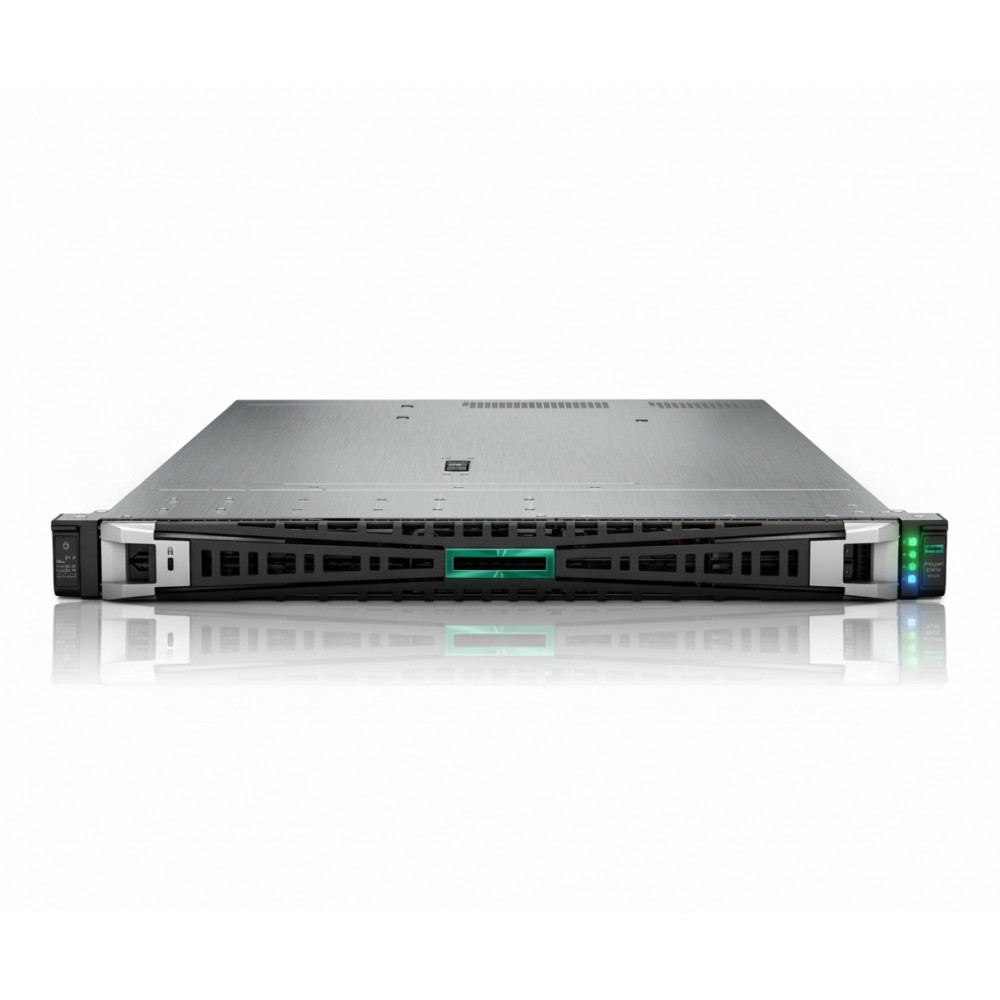

HPE P77246-005 ProLiant DL325 Gen11 Server
Overview
The HPE P77246-005 is a 1U rack-mount ProLiant DL325 Gen11 server powered by a 16-core AMD EPYC 9124 processor. It includes 64 GB of DDR5 memory and dual 480 GB SATA SSDs, offering a balanced platform for virtualization, software-defined workloads, or edge compute. The system leverages high-speed PCIe Gen5 and OCP 3.0 I/O expansion, while redundant power and platform security are handled through hot-plug supplies and Silicon Root of Trust. Integrated HPE iLO 6 provides out-of-band management and remote control.
Key Features
16-core AMD EPYC 9124 CPU @ 3.0 GHz
64 GB DDR5 Smart Memory pre-installed
8 × 2.5″ SFF hot-plug drive bays
2 × 480 GB SATA SSDs included
MR408i-o Gen11 storage controller with OCP SPDM support
10 Gb BASE-T via OCP3 network adapter
2 × 500W Flex Slot Platinum hot-plug power supplies
HPE iLO 6 for remote management and monitoring
Silicon Root of Trust for firmware security
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | P77246-005 |
| Product Type | 1U Rack Server |
| Processor | AMD EPYC 9124 (16 cores, 3.0 GHz) |
| L3 Cache | 64 MB |
| Memory Installed | 64 GB DDR5 Smart Memory |
| Memory Technology | Registered (ECC) DDR5 |
| Maximum Memory Supported | 3 TB |
| Drive Bays | 8 × SFF (2.5") hot-plug |
| Included Storage | 2 × 480 GB SATA SSD |
| Storage Controller | HPE MR408i-o Gen11 (8-lane) |
| Network Controller | Broadcom BCM57416, 2 × 10Gb BASE-T, OCP3 |
| Expansion Slots | PCIe Gen5 + OCP 3.0 (per chassis spec) |
| Power Supplies | 2 × 500 W Flex Slot Platinum, hot-plug |
| Management | HPE iLO 6 |
| Security | Silicon Root of Trust |
| Fans | 7 standard cooling fans |
| Form Factor | 1U |
| Warranty | 3 years parts, labor, and on-site support |
