Detailed Specifications

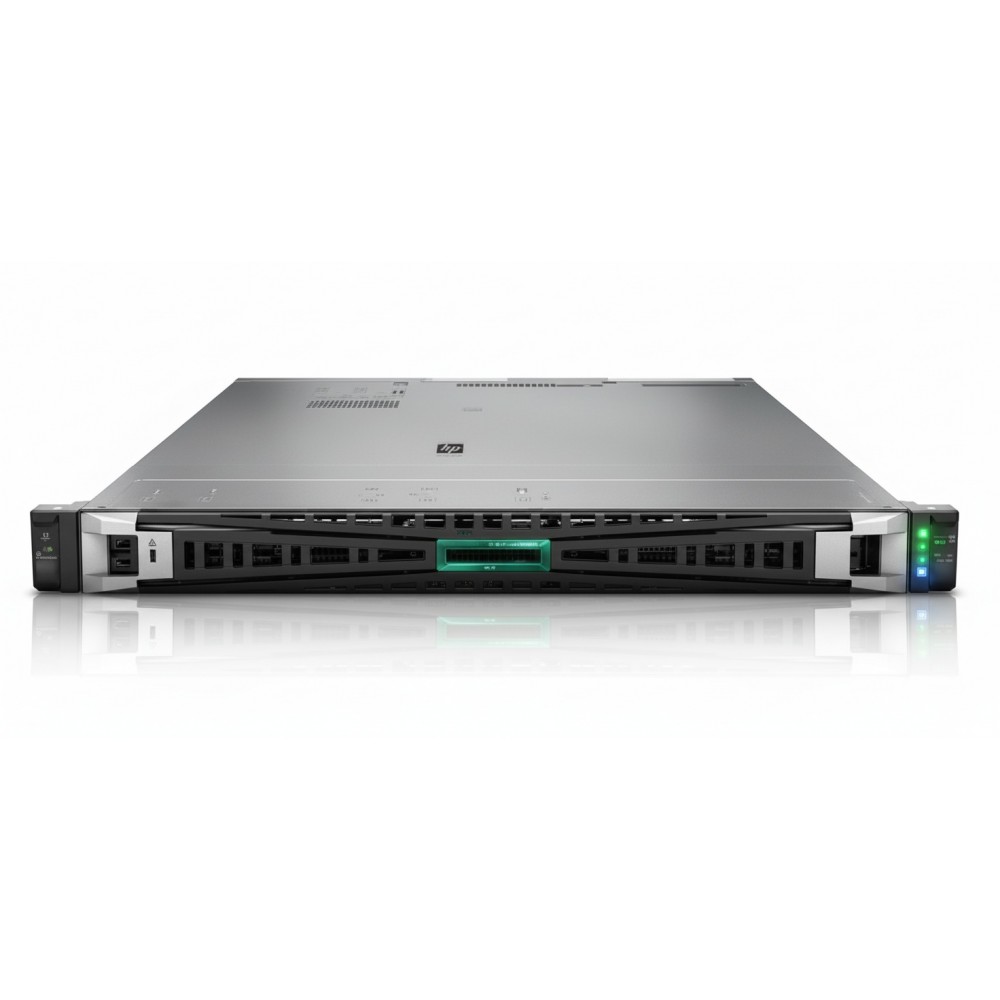

HPE P71686-005 ProLiant DL360 Gen11 Server
Overview
The HPE P71686-005 is a 1U rack-mount ProLiant DL360 Gen11 server designed for enterprise compute needs in dense environments. It uses a single Intel Xeon Silver 4510 CPU with 12 cores. The server comes with 64 GB of DDR5 registered memory and 2 × 480 GB SATA SSDs pre-installed. It supports 8 small-form-factor (2.5″) hot-plug drives and features dual 1000 W Flex Slot Titanium power supplies for redundancy. Management is handled via HPE iLO 6 for secure out-of-band control.
Key Features
12-core Intel Xeon Silver 4510 @ 2.40 GHz
64 GB DDR5 Smart Memory pre-installed
8 × 2.5″ hot-swap drive bays
2 × 480 GB SATA SSDs included
PCIe Gen5 slots + OCP 3.0 expansion capability
Dual 1000 W Flex Slot Titanium power supplies
HPE iLO 6 for remote management
1U form factor for space-efficient deployment
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | P71686-005 |
| Product Type | ProLiant DL360 Gen11 1U Server |
| Processor | 1 × Intel Xeon Silver 4510 (12 cores, 2.40 GHz) |
| L3 Cache | 30 MB |
| Memory Installed | 64 GB DDR5 (2 × 32 GB) |
| Memory Technology | DDR5 Smart Memory |
| Maximum Memory Supported | Up to 8 TB (per DL360 Gen11 spec) |
| Drive Bays | 8 × 2.5″ SFF hot-plug |
| Included Storage | 2 × 480 GB SATA SSD |
| Storage Controller | HPE MR408i-o Gen11 (OCP) |
| Network | 4-port 1 Gb BASE-T via OCP3 adapter (Broadcom BCM5719) |
| Expansion Slots | 2 × PCIe Gen5 + 2 × OCP 3.0 |
| Power Supplies | 2 × 1000W Flex Slot Titanium, hot-plug |
| Management | HPE iLO 6 |
| Security | Silicon Root of Trust, TPM support |
| Form Factor | 1U Rack-mount |
| Operating Temperature | Standard data-center range |
| Warranty | 3-year parts, labor, and next-business-day onsite |
