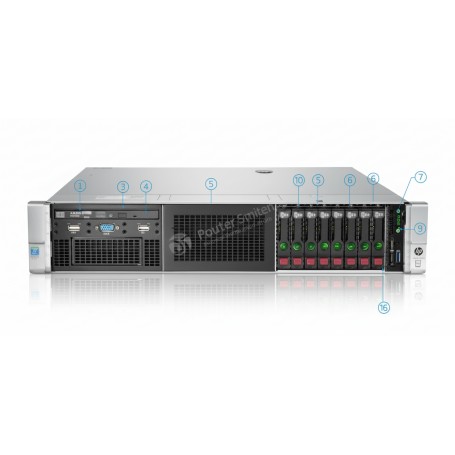

HPE ProLiant 752688-B21 DL380 Gen9 Xeon E5-2620V3 16 GB Rack Mountable Server View larger
Previous Next

HPE ProLiant 752688-B21 DL380 Gen9 Xeon E5-2620V3 16 GB Rack Mountable Server

New

In Stock

HPE ProLiant

×




$784.90

  • Refurbished

Detailed Specifications

HPE 752688-B21

ProLiant DL380 Gen9(752688‑B21)–2U Rack Server(1×Xeon E5‑2620 v3, 16 GB)

The HPE ProLiant DL380 Gen9 (752688‑B21) is a reliable 2U single-processor rack server designed for enterprise environments. Equipped with an Intel Xeon E5‑2620 v3 and 16 GB DDR4 memory,

Features

it’s ideal for SMB virtualization, file services, and general business applications. This server features twelve hot-swappable LFF bays accommodating flexible storage options—perfect for bulk data, backups, or SAN gateways. The Smart Array P440ar controller with 2 GB flash-based write cache ensures data integrity and performance across multiple RAID levels.

Advanced Options

Dual 800 W Platinum power supplies and six hot-swap fans offer uptime and support extended ambient operation Management tools like iLO4 streamline automated deployment and remote troubleshooting. Engineered for enterprise resilience, the DL380 Gen9 offers modular,

Product Key Features

  •  Intel Xeon E5‑2620 v3 (6‑core, 2.4 GHz) – Balanced performance for core workloads

  •  16 GB DDR4 Registered Memory – Upgradable up to 384 GB (RDIMM) or 768 GB (LRDIMM)

  • 12× Hot-Swap 3.5″ LFF Bays – Versatile storage for SAS/SATA HDDs or SSDs

  • Smart Array P440ar (2 GB FBWC) – Supports RAID 0/1/5/6/10/50/60 for robust data protection

Reliability & Performance

 redundant components—PSUs, cooling fans, storage bays, and memory. Its Intel C610 chipset and Xeon CPU provide ECC memory support and high throughput. With up to 24 DIMM slots and six PCIe 3.0 slots, it's future-proof for workloads such as virtualization, databases, or analytics. ASHRAE A3/A4 compliance ensures efficient operation even under demanding data-center conditions

Key Features (Bullet List)

  • Intel Xeon E5‑2620 v3 CPU (6 cores, 2.4 GHz)

  • 16 GB DDR4-2133 Registered memory (1×16 GB)

  • 12× hot-swap 3.5″ LFF drive bays

  • HPE Smart Array P440ar RAID controller (2 GB FBWC)

  • Dual 800 W Platinum Flex Slot redundant PSUs

  • Integrated 4×1 GbE; FlexibleLOM supports additional NICs

  • iLO4 remote management, hot-swap fans

Specification :

SpecificationDetails
Model Number 752688‑B21
Server Type HPE ProLiant DL380 Gen9, 2U Rack
Processor 1× Intel Xeon E5‑2620 v3 (6 cores, 2.4 GHz, 15 MB L3 cache, 85 W)
Memory Installed 16 GB DDR4‑2133 Registered (1×16 GB)
Memory Capacity (Max) 384 GB RDIMM / 768 GB LRDIMM
Drive Bays 12× hot-swap 3.5″ LFF (optional SFF configurations)
RAID Controller Smart Array P440ar, 2 GB FBWC, 12 Gb/s, RAID 0/1/5/6/10/50/60
Network Embedded 4×1 GbE 331i; supports FlexibleLOM 10/25/40 GbE
Expansion Slots 3× PCIe 3.0 (up to 6 with second CPU installed)
Power Supply 2× 800 W Flex Slot Platinum, hot-swappable, ~94% efficient
Cooling 6× hot-swap redundant fans, extended ambient support
Management HPE iLO4, Intelligent Provisioning
Dimensions (W×D×H) 17.5″ × 28.7″ × 3.4″ (2U)
Weight ~32.5 lb (14.8 kg)
Certifications ASHRAE A3/A4, Energy Star
Warranty Vendor dependent (1–3 years), often 1-year parts replacement
