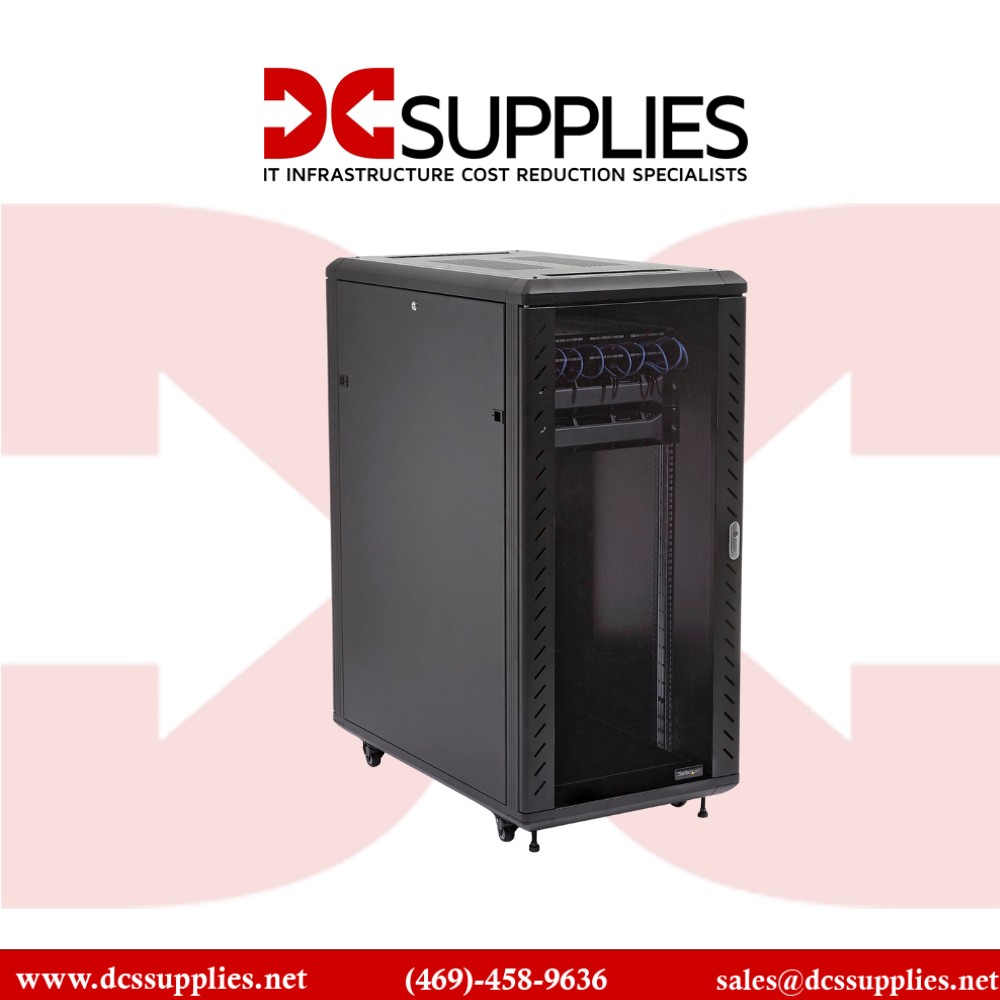

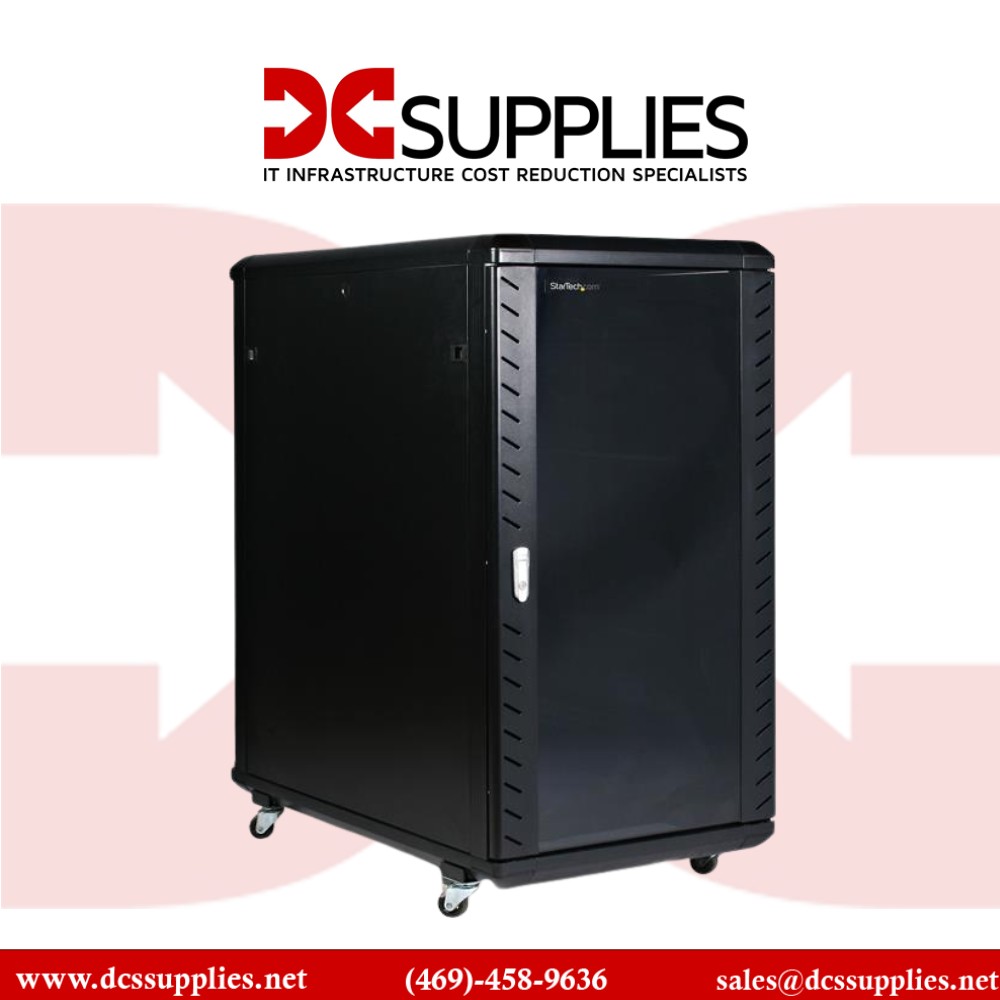

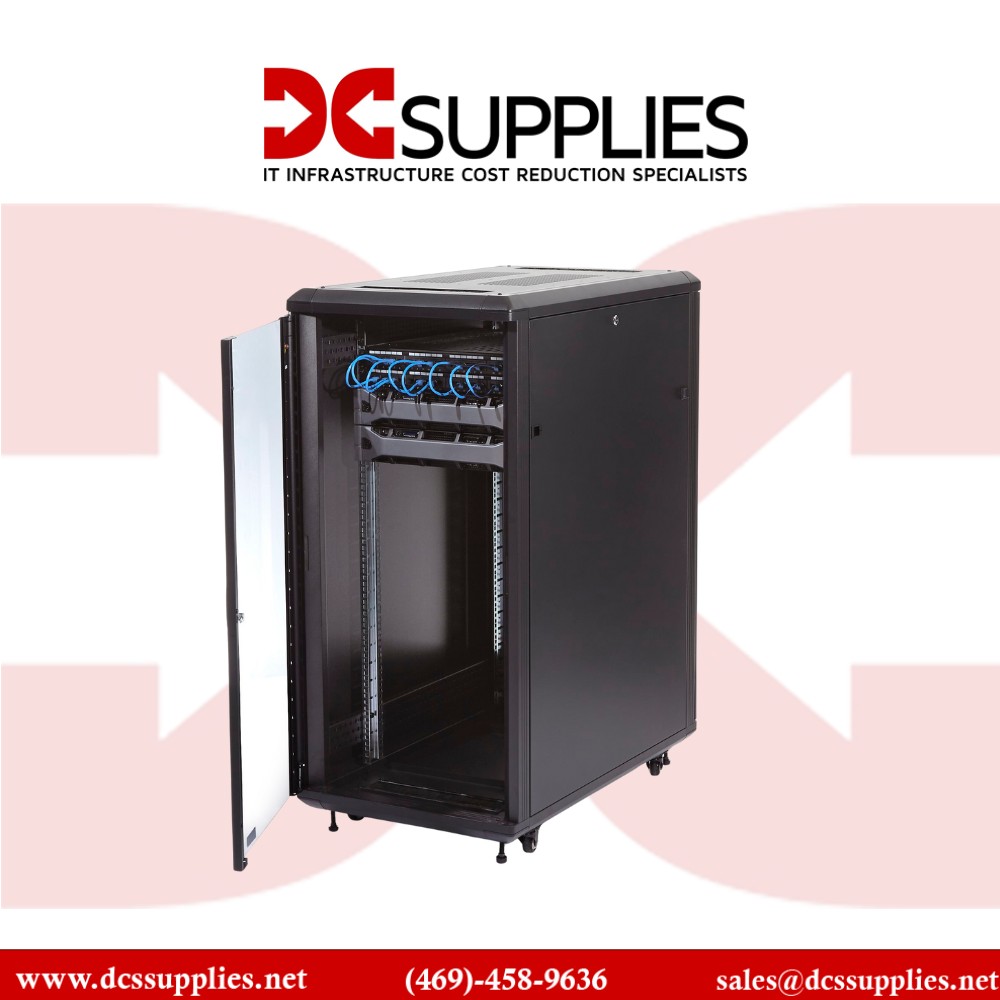

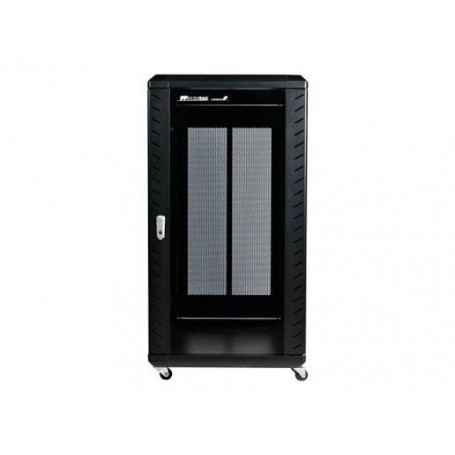

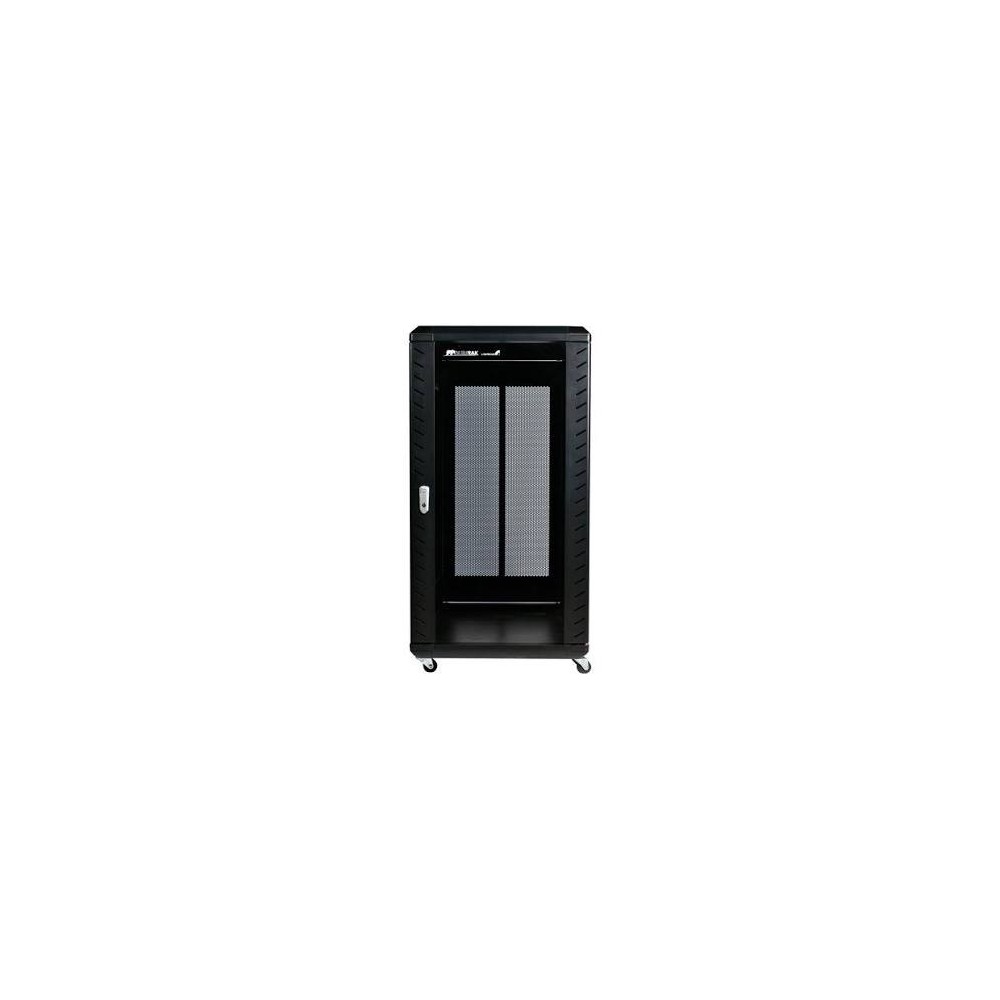

StarTech.com 22U 36 inch Knock Down Server Rack Cabinet with Caster View larger
Previous Next

StarTech RK2236BKF 22U 36 inch Knock Down Server Rack Cabinet

New

In Stock

Efficiently mount and secure your rack gear with the StarTech

×




$844.00

  • New

Detailed Specifications

StarTech RK2236BKF

22U 36″ Deep Knock-Down Server Rack Cabinet – Enclosed with Casters

The StarTech RK2236BKF 22U Server Rack Cabinet is a robust, enclosed 4-post rack designed for data centers, IT closets, and AV installations. Combining secure locking doors, adjustable rail depth, and portable casters, it offers a flexible, high-capacity solution for mounting and protecting 19″ EIA-310 rack equipment.

Features

This 22U cabinet accommodates a wide variety of IT devices—from servers and storage to routers and AV gear—with its versatile depth range of 5.7″ to 28.7″ . Lockable front and rear doors, along with removable side panels, enhance security and ease of access. Brush-style cable entry ports on the top and bottom panels streamline cable routing, helping maintain clean, organized installations.

Advanced Options

Engineered with steel-aluminum construction, the rack supports up to 800 kg (~1,764 lb) of equipment when stationary and offers passive cooling via vented panels, minimizing noise and failure points Its flat-packed design ensures cost-effective shipping, while included casters and leveling feet allow easy repositioning and stabilization.

Product Key Features

  • 300GB enterprise-grade storage capacity

  • 10,000 RPM for high-speed performance

  • SAS 6Gb/s interface ensures fast data transfer

  • Hot-swappable for zero-downtime maintenance

  • Compatible with HP ProLiant and enterprise servers

  • Durable, energy-efficient design for 24/7 uptime

Reliability & Performance

Certified to standards like DIN41491, EIA RS310-D, and IEC297-2, it aligns with global rack compatibility

Key Features :

    • Lockable vented glass front door

    • Lockable mesh rear door

    • Adjustable mounting rails (5.7″–28.7″)

    • Flat-packed with casters and leveling feet

    • Passive cooling with brush ports and mesh panels

    • Heavy-duty construction supporting 800 kg

    • EIA/ECA-310 compliant

    • Removable, locking side panels

    • Lifetime warranty with free technical support

SpecificationDetails
Model Number RK2236BKF
Product Type 22U Enclosed Server/Network Rack Cabinet
Rack Units 22U
Adjustable Depth 5.7″–28.7″ (145–730 mm)
External Dimensions (W×H×D) 23.6″ × 43.6″ × 35.4″ (600 × 1,107 × 900 mm)
Height with Casters 46.4″ (1,179 mm)
Load Capacity (Stationary) 800 kg / 1,763.7 lb
Doors Lockable vented glass front; lockable mesh rear
Side Panels Removable with independent locks
Cooling Vented top, mesh panels, brush cable access ports
Mobility 2 fixed + 2 brake casters; leveling feet
Material Steel & aluminum
Certifications DIN41491 Part I, EIA RS310-D, IEC297-2
Cable Management Brush ports on top & bottom
