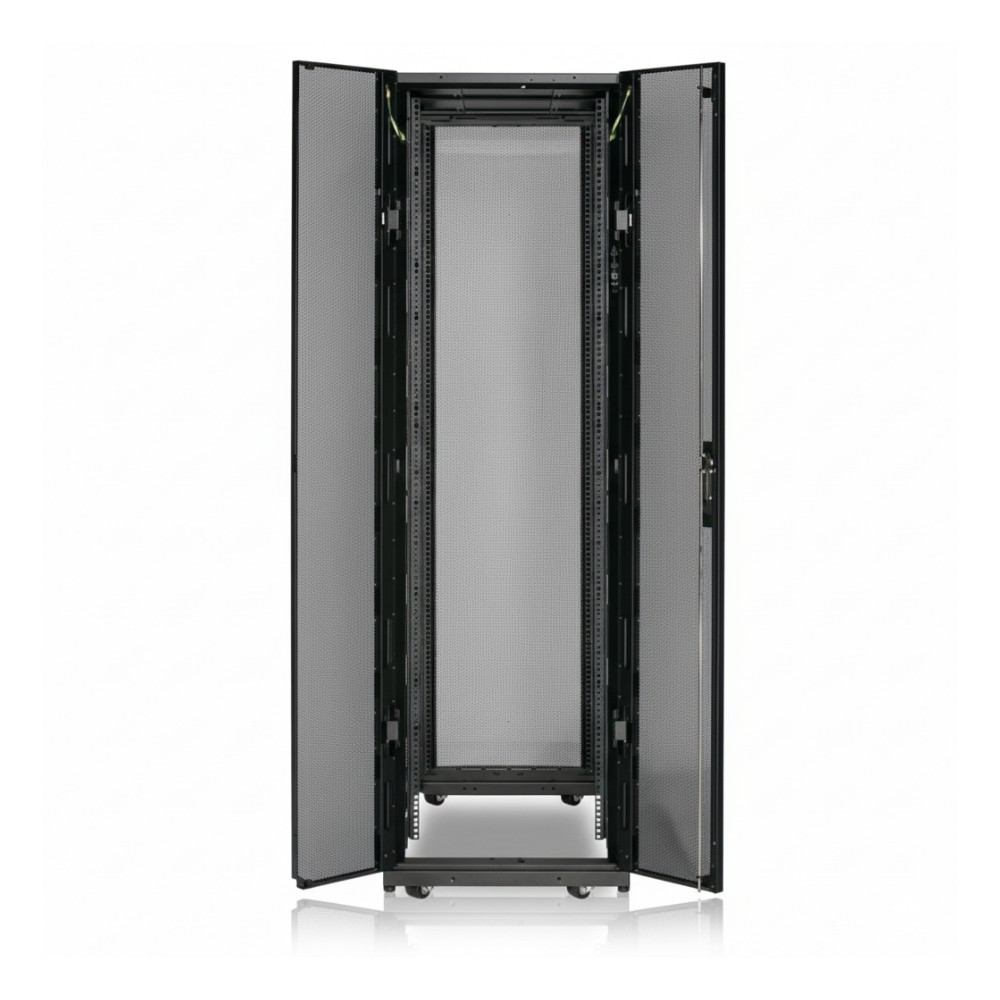

APC AR3105 NetShelter SX, Server Rack Enclosure, 45U, Black, View larger

APC AR3105 45U NetShelter SX 600mm x 1070mm Enclosure with Sides

New

APC AR3105 45U Server Rack Enclosure

×




  • New

Detailed Specifications

APC AR3105 - NetShelter SX 45U Rack Enclosure

Overview :

The APC AR3105 is a 45U server rack enclosure designed for high-density IT environments. It offers a static load capacity of 3750 lbs and a dynamic load capacity of 2250 lbs. The enclosure features adjustable mounting rails, lockable doors, and integrated cable management solutions. Ideal for data centers, network closets, and server rooms.

Key Features :

  • Supports up to 3750 lbs static load

  • Adjustable 14-gauge EIA-310 mounting rails

  • Lockable front and rear doors

  • Integrated cable management with brush strips

Specifications :

SpecificationDetails
BrandAPC by Schneider Electric
Part NumberAR3105
Product TypeServer Rack Enclosure
Rack Height45U
Rack Width19" (EIA-310)
Height2124 mm (83.6")
Width600 mm (23.6")
Depth1070 mm (42.1")
Static Load Capacity1700.97 kg (3750 lbs)
Dynamic Load Capacity1020.58 kg (2250 lbs)
Mounting Rail Gauge14 gauge
Front Door Gauge16 gauge
Rear Door Gauge18 gauge
Side Panel Gauge18 gauge
MaterialSteel
ColorBlack
Warranty5 years
