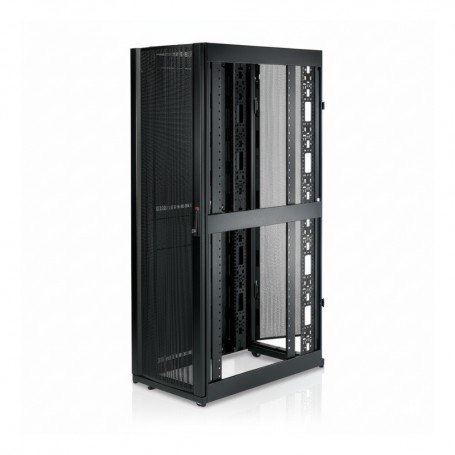

APC AR3100 - NetShelter SX 42U Rack Enclosure
Overview
The APC AR3100 is a full-height 42U NetShelter SX steel rack enclosure, built for housing servers, switches, UPS units, and networking gear in data centers, server rooms, or telecom closets. It offers 600 mm width and 1070 mm depth with front and rear perforated doors and support for front-to-rear airflow. Ideal in medium to large installations, it supports standard 19″ equipment with sturdy mounting rails and modular accessories. Compatible with APC cooling, cable, and power accessories for an integrated rack ecosystem.
Key Features
42U usable rack space with 600 mm × 1070 mm internal footprint for deep equipment
Perforated steel front and rear doors (~65 % open area) for effective airflow
Robust steel construction with 14-gauge mounting rails and side panels
Front-to-rear airflow orientation, compatible with roof-mounted or base fan trays
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (by Schneider Electric) |
| Part Number | AR3100AR3100 |
| Product Type | Server / Network Rack Enclosure (NetShelter SX) |
| Key Specification 1 | 42U rack capacity (usable vertical space) |
| Key Specification 2 | 600 mm width × 1070 mm depth internal dimensions |
| Key Specification 3 | Front and rear perforated doors for airflow |
| Management | Passive enclosure (no active elements) |
| Power Requirements | N/A (requires external power for accessories) |
| Dimensions & Weight | 1991 mm (H) × 600 mm (W) × 1070 mm (D); 122 kg net weight |
