APC AR3300 - NetShelter SX 42U Server/Rack Enclosure
Overview

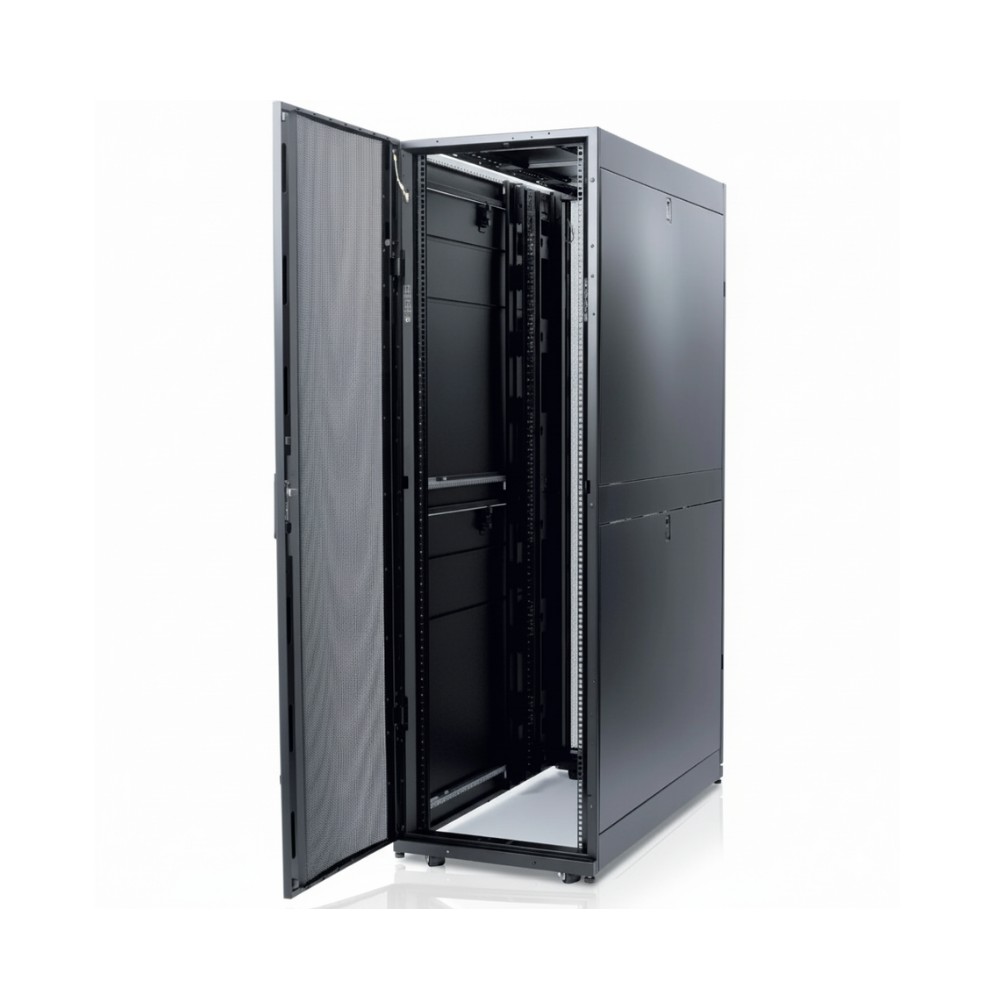

The APC AR3300 is a full-height 42U NetShelter SX rack enclosure built for data centers and enterprise infrastructure. It has a 600 mm width and 1,200 mm depth, supporting heavy equipment loads and allowing for robust cable and airflow routing. This cabinet accommodates servers, switches, UPS units, PDUs and more, with mounting on 19″ EIA rails. It comes with locking doors, removable side panels, and is compatible with APC accessories like brush strips, blanking panels, and cable management.
Key Features
42U, 600 mm × 1,200 mm footprint supports deep chassis servers and modular hardware
3,000 lb (≈ 1,360 kg) static load capacity supports heavy power and battery equipment
14-gauge front rails, 16-gauge doors & side panels ensure structural strength and airflow consistency
Removable side panels, locking front/rear doors, and full cable access openings simplify service and cable routing
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC / Schneider Electric |
| Part Number | AR3300 |
| Product Type | 42U Rack / Server Enclosure (NetShelter SX) |
| Key Spec 1 | Rack Height: 42U (≈ 1,991 mm / 78.4 in) |
| Key Spec 2 | Width × Depth: 600 mm × 1,200 mm (≈ 23.6 in × 47.2 in) |
| Key Spec 3 | Load Capacity (Static): 3,000 lb (≈ 1,360 kg) |
| Management | Passive enclosure (no active electronics) |
| Power Requirements | N/A (no integrated power) |
| Dimensions & Weight | Net weight ~155.96 kg (343.1 lb) |
