Detailed Specifications

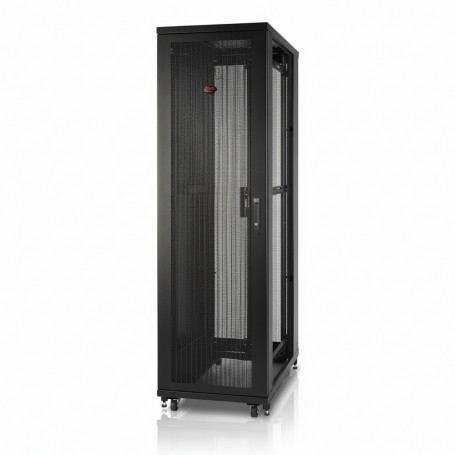

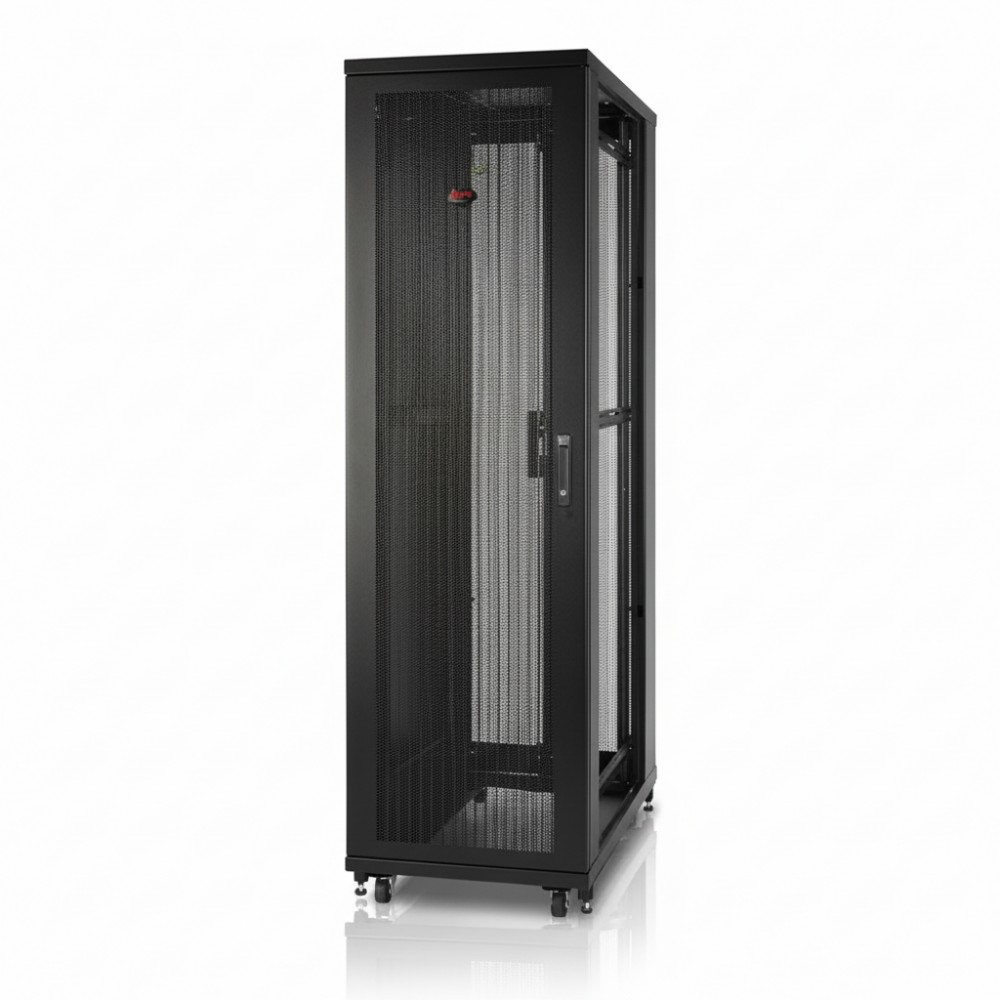

APC AR2400FP1 - NetShelter SV 42U Rack Enclosure
Overview
The APC AR2400FP1 is a 42U server rack enclosure from the NetShelter SV series, built to deliver reliable and flexible rack-mounting options for data centers, telecom facilities, and enterprise IT environments. With a 600 mm width and 1060 mm depth, it provides ample space for standard 19-inch equipment. The enclosure ships unassembled for easier transport through narrow doorways and includes adjustable mounting rails, casters, leveling feet, and baying hardware for modular setup. Designed for strength and convenience, it supports a static load capacity of up to 1000 kg (2205 lb) and complies with EIA-310E standards. This cabinet ensures efficient cable management, easy access with removable side panels, and secure equipment protection with perforated front and rear doors.
Key Features
42U capacity with 600 mm width and 1060 mm depth
Ships unassembled for easy transport and installation
Adjustable mounting rails and preinstalled casters for flexibility
Perforated front and rear doors enhance airflow
Supports up to 1000 kg static load for dense IT deployments
Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | AR2400FP1 |
| Product Type | Server Rack Enclosure |
| Rack Units | 42U |
| Width | 600 mm |
| Depth | 1060 mm |
| Height | 2057 mm |
| Rack Width Standard | 19 inches (EIA-310 compliant) |
| Static Load Capacity | 1000 kg (2205 lb) |
| Dynamic Load Capacity | 460 kg (1014 lb) |
| Frame Type | Fully enclosed, steel |
| Doors | Perforated front and split rear doors |
| Side Panels | Detachable, lockable |
| Mounting Rails | Adjustable, 10 mm increments |
| Casters & Leveling Feet | Included |
| Color | Black |
