Detailed Specifications

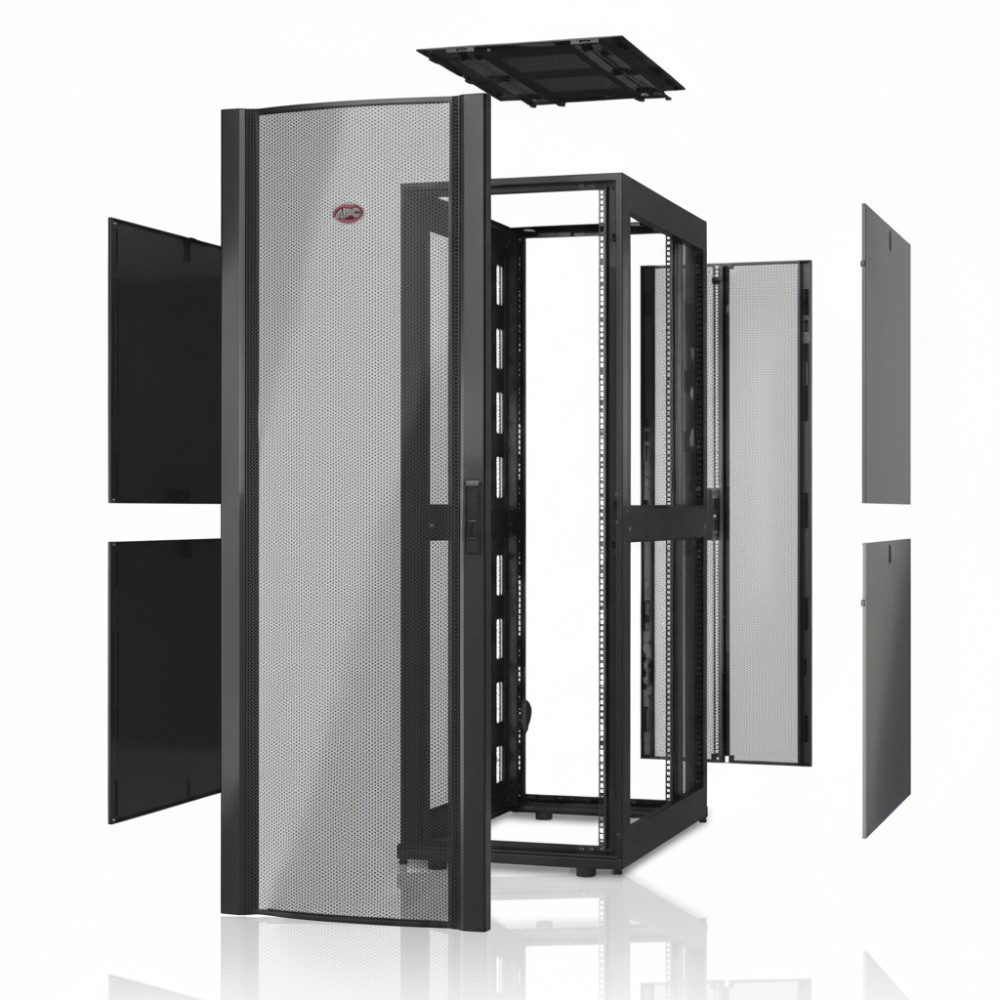

APC AR3150X617 - NetShelter SX 42U Server Rack Enclosure
Overview
The APC AR3150X617 is a 42U freestanding server rack enclosure designed for high-density IT environments. With a 19" rack width and a depth of 1070 mm, it accommodates a wide range of equipment, including servers, networking gear, and storage devices. The enclosure features a spacious design, ensuring optimal airflow and cooling efficiency. Its robust all-steel construction supports a static load capacity of up to 4000 lbs, providing secure housing for critical infrastructure.
Key Features
Spacious design for enhanced airflow
Supports up to 4000 lbs static load capacity
Includes baying hardware, keys, leveling feet, mounting hardware, and pre-installed casters
Compliant with UL 2416, UL 60950-1, EIA-310E, REACH, and RoHS standards
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AR3150X617 |
| Product Type | Server Rack Enclosure |
| Rack Height | 42U |
| Rack Width | 19" |
| Rack Depth | 1070 mm |
| Height | 2258 mm |
| Width | 750 mm |
| Depth | 1070 mm |
| Weight | 152.13 kg |
| Static Load Capacity | 4000 lbs |
| Dynamic Load Capacity | 2250 lbs |
| Mounting Depth Range | 286 mm to 914.9 mm |
| Construction | All-steel |
| Color | Black |
| Compliance | UL 2416, UL 60950-1, EIA-310E, REACH, RoHS |
