Detailed Specifications

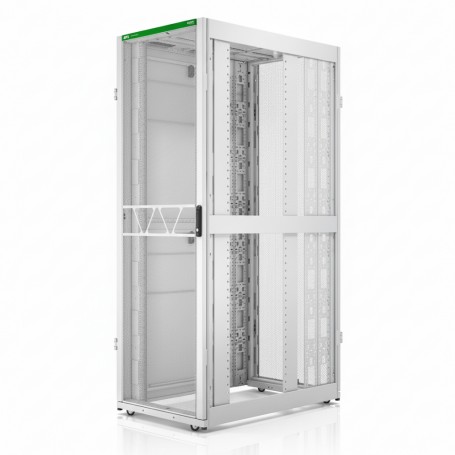

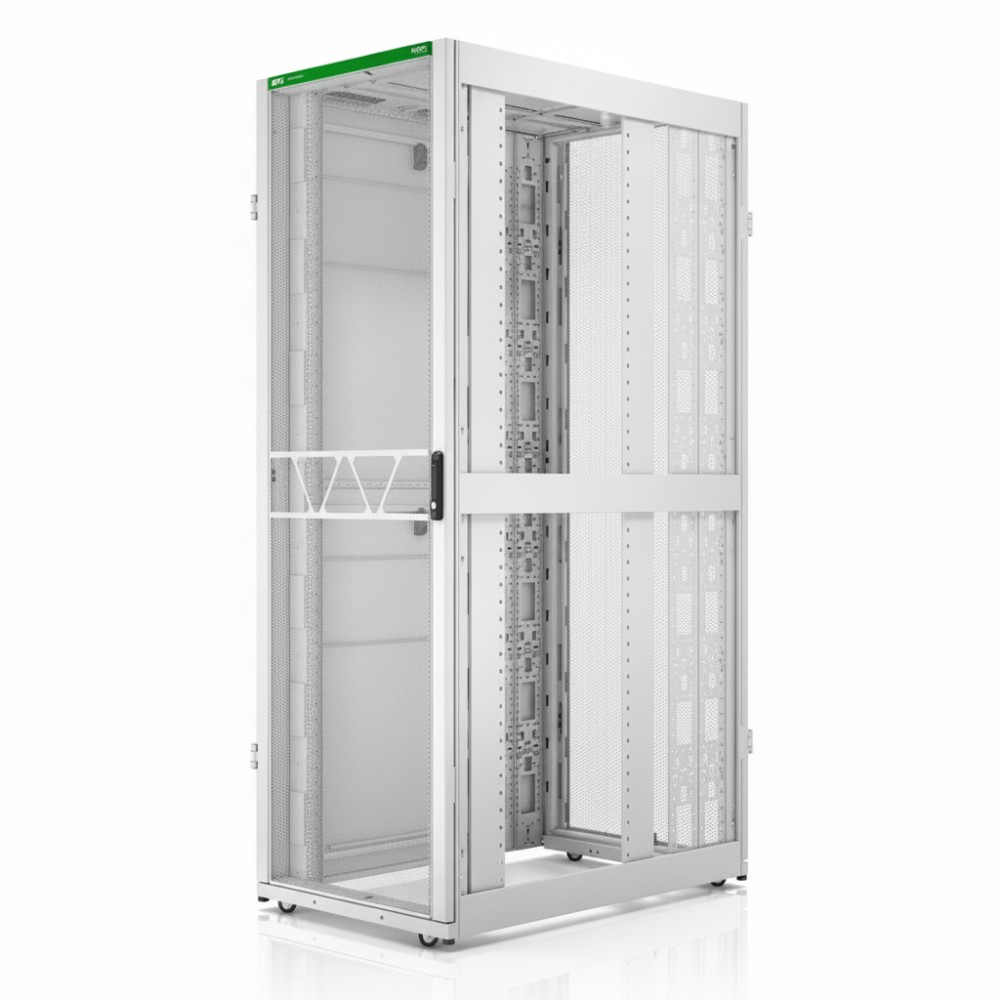

APC AR3357W2 NetShelter SX Gen2 48U Rack Enclosure (White)
Overview
The APC AR3357W2 is a 48U NetShelter SX Gen2 rack enclosure designed for enterprise IT environments, featuring a 750 mm width and 1,200 mm depth. Built for high-density server and networking deployments, it provides excellent cable management, optimized airflow, and durable load capacity. The enclosure includes perforated front and rear doors for enhanced ventilation, adjustable mounting rails for flexible equipment depth, and split rear doors for convenient access in tight spaces. Its white powder-coated finish provides a clean, modern aesthetic suited for contemporary data centers and controlled environments.
Key Features
48U rack enclosure with 750 mm width
Perforated doors for improved airflow
Split rear doors and lockable side panels
Adjustable mounting rails for flexibility
White finish for high-visibility data centers
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AR3357W2 |
| Product Type | Rack Enclosure / Cabinet |
| Rack Units | 48U |
| Height | 2,258 mm (88.90 in) |
| Width | 750 mm (29.53 in) |
| Depth | 1,200 mm (47.24 in) |
| Net Weight | 177.25 kg (390.77 lb) |
| Maximum Mounting Depth | 1,048 mm (41.26 in) |
| Minimum Mounting Depth | 286 mm (11.26 in) |
| Static Load Rating | 1,814 kg (4,000 lb) |
| Dynamic Load Rating | 1,020 kg (2,250 lb) |
| Frame Construction | Welded steel frame |
| Mounting Rails | 14-gauge EIA-310 compliant |
| Door Type | Perforated front and rear |
| Warranty | 5-year repair or replace |
