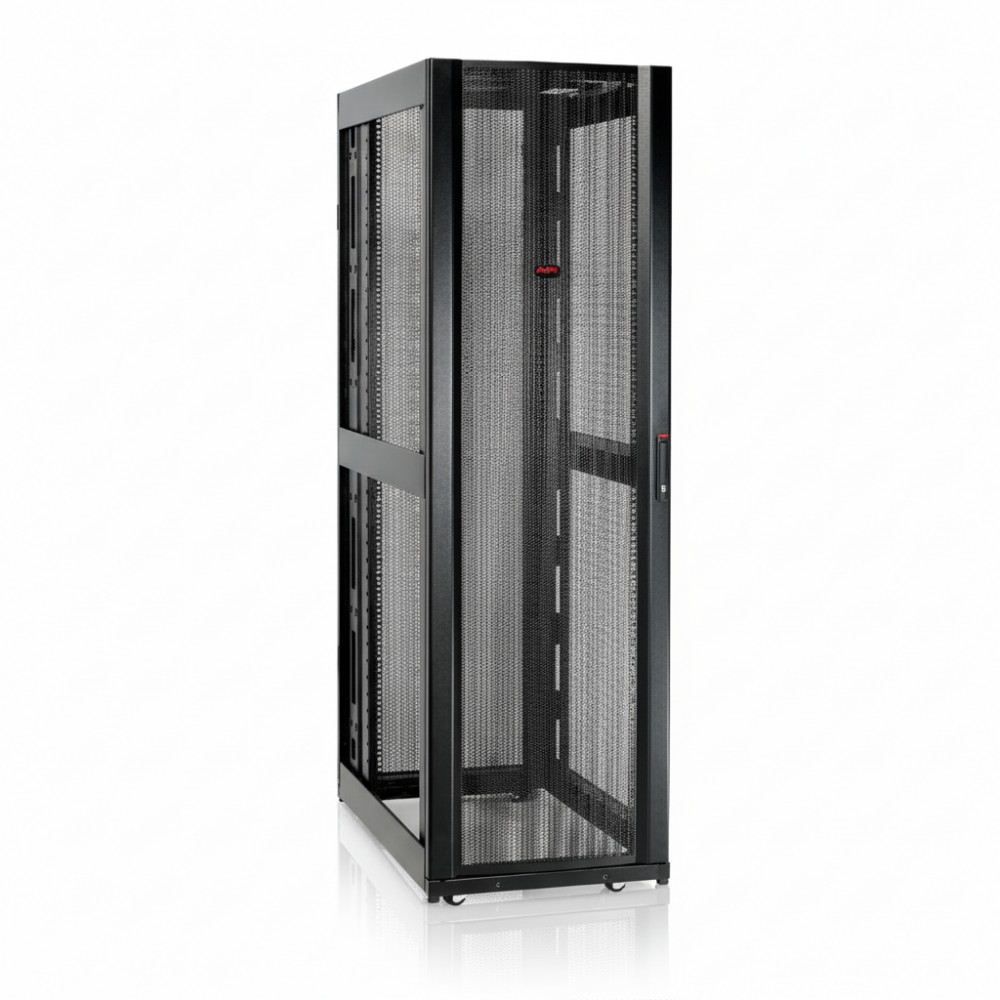

APC AR3107 NetShelter SX 48U Enclosure
Overview
The APC AR3107 is a full-height 48U server rack enclosure from the NetShelter SX family, designed for enterprise IT deployments where space efficiency, cable management, and structural integrity matter. It features a 600 mm internal width and 1,070 mm depth to accommodate deep equipment and accessories. The frame supports heavy loads with static and dynamic ratings suitable for dense rack gear, making it suitable for core, distribution, or edge data centers. Integrated features include adjustable mounting rails, full-height rear accessory channels, and interchangeable doors and side panels. The AR3107 is offered as a factory standard enclosure with multiple accessory integration points, making it a reliable base for customized rack deployments in mission-critical environments.
Key Features
Supports 48U EIA-310 rack space
600 mm × 1,070 mm internal footprint
Heavy-duty rails and load capacity
Split rear doors for service access
Zero-U accessory mounting channels
Interchangeable flat & curved doors
Technical Specifications
| Specification | Value |
|---|
| Brand | APC (by Schneider Electric) |
| Part Number | AR3107 |
| Product Type | Server Rack Enclosure (48U) |
| Mounting Standard | EIA-310 19-inch rails |
| Width (internal) | 600 mm |
| Depth (internal) | 1,070 mm |
| Height | 2,258 mm (88.9 in) |
| Net Weight | 138.23 kg |
| Static Load Capacity | 1,700 kg (3,750 lb) |
| Dynamic Load Capacity | 1,023 kg (2,250 lb) |
| Minimum Mounting Depth | 191 mm |
| Maximum Mounting Depth | 915 mm |
| Frame / Rail Gauge | 14 gauge mounting rails |
| Doors / Panels Gauge | Front door 16 gauge, rear door 18 gauge, sides 18 gauge |
| Accessory Channels | Factory-installed rear 0U vertical channels |
| Warranty | 5 years (repair or replace) |
