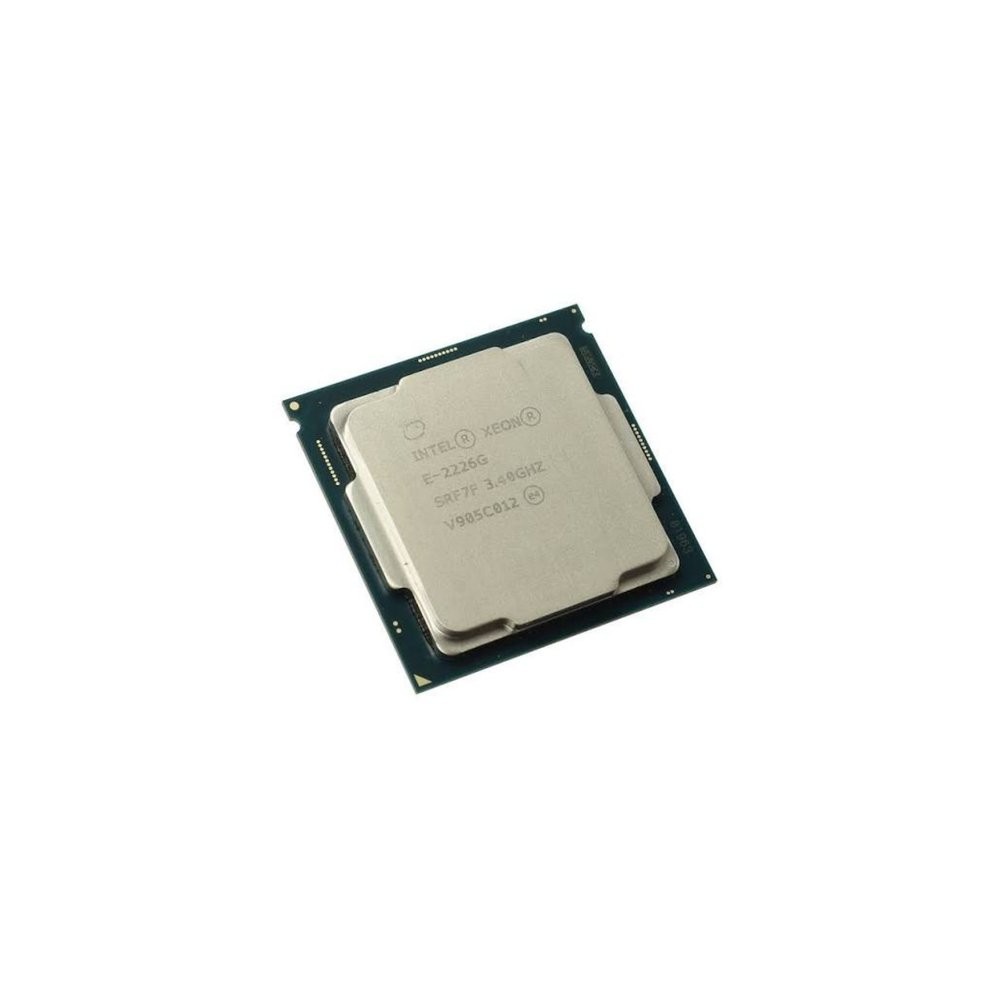

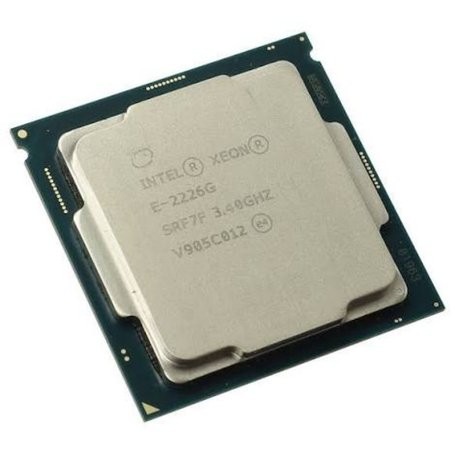

INTEL CM8068404174503 Server Processors View larger

INTEL CM8068404174503 Server Processors

CM8068404174503

New

Intel Xeon E-2226G Processor (12M Cache, 3.40 GHz) FC-LGA14C, Tray - Max Resolution (HDMI): 4096x2160@24Hz, Max Resolution (DP): 4096x2304@60Hz, Max Resolution (eDP - Integrated Flat...
×




Detailed Specifications

Primary Information
Processor / TypeXeon
Total Threads6
Thermal Design Power (TDP)80 Watt
Vertical SegmentServer
Lithography14 nm
RAM / Max Supported Size128 GB
RAM TypeDRAM
Channel QtyMax of Memory Channels: 2
Graphics ControllerIntel UHD Graphics P630
Graphics Base Frequency350 MHz
Graphics Max Dynamic Frequency1.2 GHz
Max Resolution (external)Max Resolution (HDMI): 4096x2160@24Hz, Max Resolution (DP): 4096x2304@60Hz, Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
Processor / Clock Speed3.4 GHz
Max Turbo Frequency4.7 GHz

Processor
Multi-Core Technology6-Core
Processor / NumberE-2226G
Processor / ManufacturerIntel
Processor / Clock Speed3.4 GHz
Max Turbo Frequency4.7 GHz
Processor / Installed Qty1
Processor / Socket TypeFCLGA1151

Cache
Cache Memory TypeSmart Cache
Cache Memory Installed Size12 MB

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43201503
