Detailed Specifications

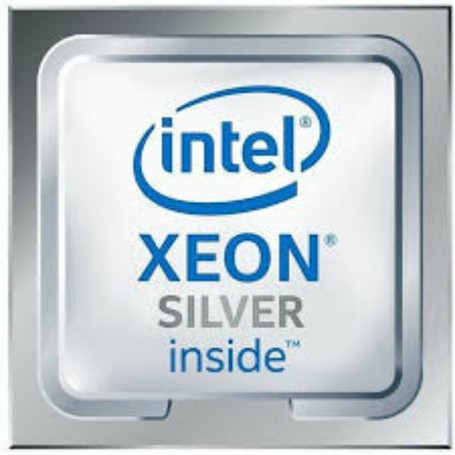

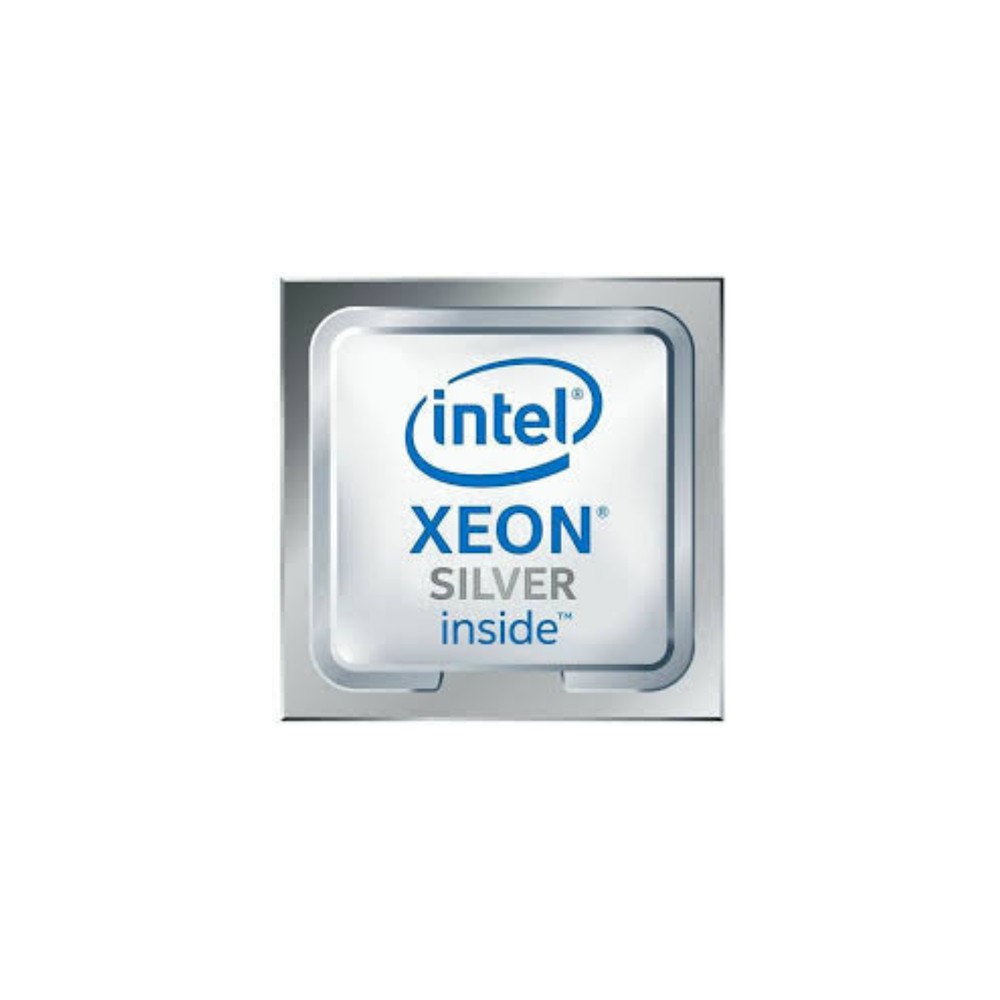

Intel CD8069504344500S Server Processor
Overview :
The Intel CD8069504344500S is an enterprise-grade 2nd Generation Intel Xeon Scalable Silver 4210R server processor. Engineered for entry-level data center compute nodes, network routing appliances, and hyperconverged storage systems, this processor handles high-density multi-tenant workloads. It provides infrastructure engineers and hardware procurement teams with a reliable platform for virtualization layers and web hosting applications.
Architected on a 14nm lithography node using the Cascade Lake microarchitecture, the processor runs at a 2.40GHz baseline frequency and reaches up to 3.20GHz via Intel Turbo Boost Technology 2.0.Operating with 10 physical cores and 20 execution threads, the CPU utilizes 13.75MB of Intel Smart Cache to stabilize data pipeline execution loops. The integrated memory controller supports up to 1TB of six-channel DDR4 error-correcting code (ECC) system memory running at a maximum frequency of 2400MHz.
The component seats securely into standard FCLGA3647 (Socket P) server interfaces on compatible multi-socket enterprise platforms.System virtualization and machine protections are driven by integrated Intel Deep Learning Boost (DL Boost) vector execution units, Intel vPro platform validation, and hardware-level VT-x/VT-d abstraction layers. Do not deploy this processor in compute clusters requiring high-bandwidth Intel Optane DC Persistent Memory modules, or in server configurations requiring base operational clock seeds above 3.00GHz.
Key Features :
Deca-core processing with 20 computing threads optimizes dense virtualization.
2.40GHz base frequency steps up dynamically to 3.20GHz under high loads.
Hexa-channel DDR4 controller handles up to 1TB of error-correcting RAM.
Integrated Intel DL Boost hardware engine accelerates entry AI applications.
Standard FCLGA3647 package drops directly into existing rackmount servers.
Specifications :
| Specification Field | Technical Data |
| Brand | Intel |
| Part Number | CD8069504344500S |
| Product Type | Server Processor |
| Processor Number | Xeon Silver 4210R |
| Product Collection | 2nd Generation Intel Xeon Scalable Processors |
| Microarchitecture | Cascade Lake |
| Total Physical Cores | 10 |
| Total Execution Threads | 20 |
| Baseline Clock Speed | 2.40 GHz |
| Max Turbo Speed | 3.20 GHz |
| Cache Architecture | 13.75 MB Intel Smart Cache |
| Thermal Design Power (TDP) | 100 Watts |
| Interface Socket | FCLGA3647 (Socket P) |
| Memory Support | Six-Channel DDR4-2400 ECC |
| Max Memory Capacity | 1.0 TB (System Dependent) |
| Expansion Bus | PCI Express 3.0 (Up to 48 Lanes) |
| Multi-Processor Scalability | 2S (Up to Two Sockets) |
