Detailed Specifications

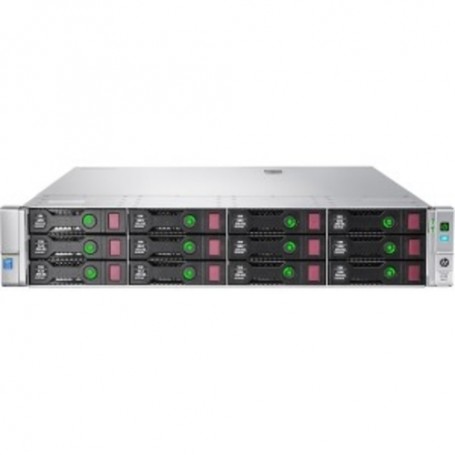

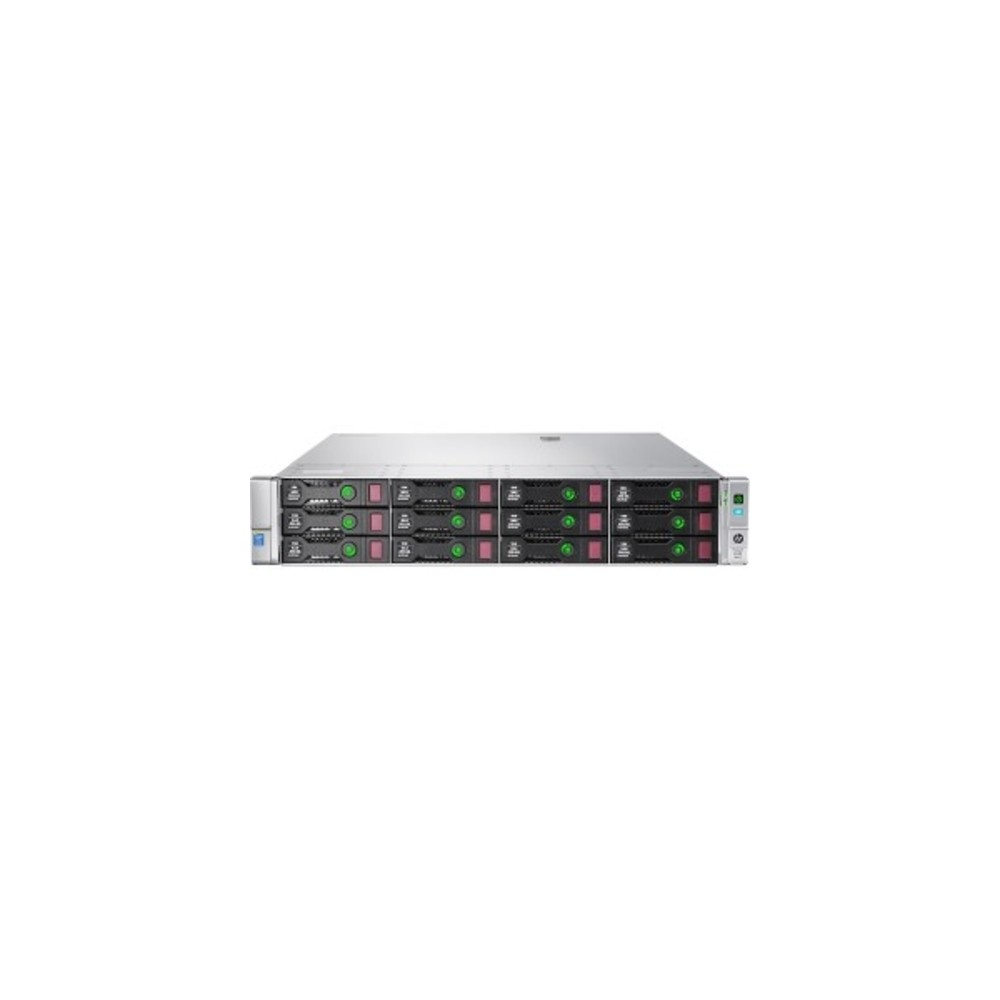

HPE ProLiant 752688-B21 DL380 Gen9 Xeon E5-2620V3 16 GB Rack Mountable Server
Overview:
The HPE ProLiant DL380 Gen9 Server delivers the latest performance and expandability. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, makes it ideal for any server environment. Deploy the data center standard.HPE 752688-B21,Designed to reduce costs and complexity, leveraging Intel’s latest E5-2600 v4 processors with 21% performance gain, plus the latest HPE 2400 MHZ DDR4 SmartMemory supporting 3.0 TB and up to 23% performance increase. Supporting 12 Gb/s SAS, 40 Gb NIC with broad range compute options. HPE Persistent Memory, the world’s first NVDIMM optimized on ProLiant, offering unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and can be deployed with confidence.
Specifications:
| General Information |
|---|
| Brand Name: |
HPE |
| Manufacturer: |
Hewlett Packard Enterprise |
| Manufacturer Part Number: |
752688-B21 |
| Product Line: |
ProLiant |
| Product Name: |
ProLiant DL380 Gen9 E5-2620v3 1P 16GB-R P440ar 12LFF 2x800W PS Base Server |
| Product Series: |
DL380 G9 |
| Product Type: |
Server |
| I/O Expansions |
|---|
| Number of 3.5" Bays: |
12 |
| Number of PCI Express x16 Slots: |
2 |
| Number of PCI Express x8 Slots: |
1 |
| Number of Total Expansion Slots: |
3 |
| Interfaces/Ports |
|---|
| Network (RJ-45): |
Yes |
| Number of USB 3.0 Ports: |
5 |
| Remote Management: |
Yes |
| Total Number of USB Ports: |
5 |
| Memory |
|---|
| Memory Card Reader: |
Yes |
| Memory Card Supported: |
microSD |
| Memory Standard: |
DDR4-2133/PC4-17000 |
| Memory Technology: |
DDR4 SDRAM |
| Number of Total Memory Slots: |
24 |
| Standard Memory: |
16 GB |
| Ethernet Technology: |
Gigabit Ethernet |
| Physical Characteristics |
|---|
| Depth: |
28.7" |
| Form Factor: |
Rack |
| Height: |
3.4" |
| Rack Height: |
2U |
| Weight (Approximate): |
32.61 lb |
| Width: |
17.5" |
| Power Description |
|---|
| Input Voltage: |
120 V AC |
|
230 V AC |
| Maximum Power Supply Wattage: |
800 W |
| Number of Power Supplies Installed: |
2 |
| Processor & Chipset |
|---|
| 64-bit Processing: |
Yes |
| Cache: |
15 MB |
| Chipset Manufacturer: |
Intel |
| Chipset Model: |
C610 |
| Hyper-Threading: |
Yes |
| Maximum Turbo Speed: |
3.20 GHz |
| Number of Processors Installed: |
1 |
| Number of Processors Supported: |
2 |
| Processor Core: |
Hexa-core (6 Core) |
| Processor Manufacturer: |
Intel |
| Processor Model: |
E5-2620 v3 |
| Processor Speed: |
2.40 GHz |
| Processor Type: |
Xeon |
| QuickPath Interconnect: |
8 GT/s |
