SUPERMICRO COMPUTER PWS-654-1R Server Power Supplies View larger

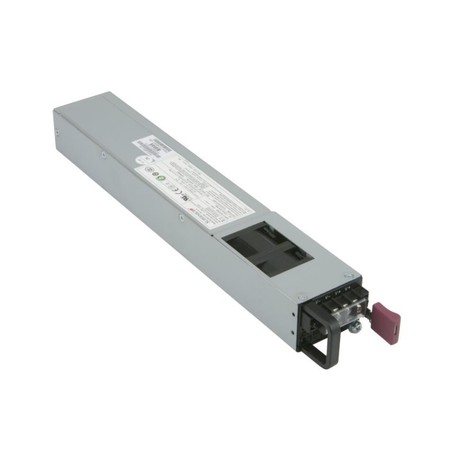

SUPERMICRO COMPUTER PWS-654-1R Server Power Supplies

PWS-654-1R

New

Supermicro 650W 1U -48V DC Input Power Supply (PWS-654-1R) - Output Type Gold Finger - Energy Efficiency 90% Peak - MTBF 150000 hours - 1 year warranty
×




Detailed Specifications

Primary Information
Power / Device TypePower Supply
Power Device / Form Factor1U
Power / Voltage Required-44Vdc to -72Vdc
Power / Provided (W)650 Watt
Output Connector(s)Gold Finger
Efficiency90%
MTBF>150000 hours
For Use WithCSE-815TQ-R654CB
ModelPWS-654-1R
Width54.5 Mm
Depth320 Mm
Height40 Mm
Service & Support Type1 year warranty
Features-48V DC Input Support; Designed for Supermicro 1U Server; Compatible DC -48V Option for PWS-704P-1R, PWS-504P-1R, and PWS-706P-1R Platforms; Supermicro Certified
Min Operating Temperature0 Celsius
Max Operating Temperature45 Celsius
Humidity Range Operating5% to 90% (non-condensing)

Green Product Information
Proposition 65 WarningY

Special Feature
COOTAIWAN
TAA complianceYes

UNSPSC Code
UNSPSC Code39121004
