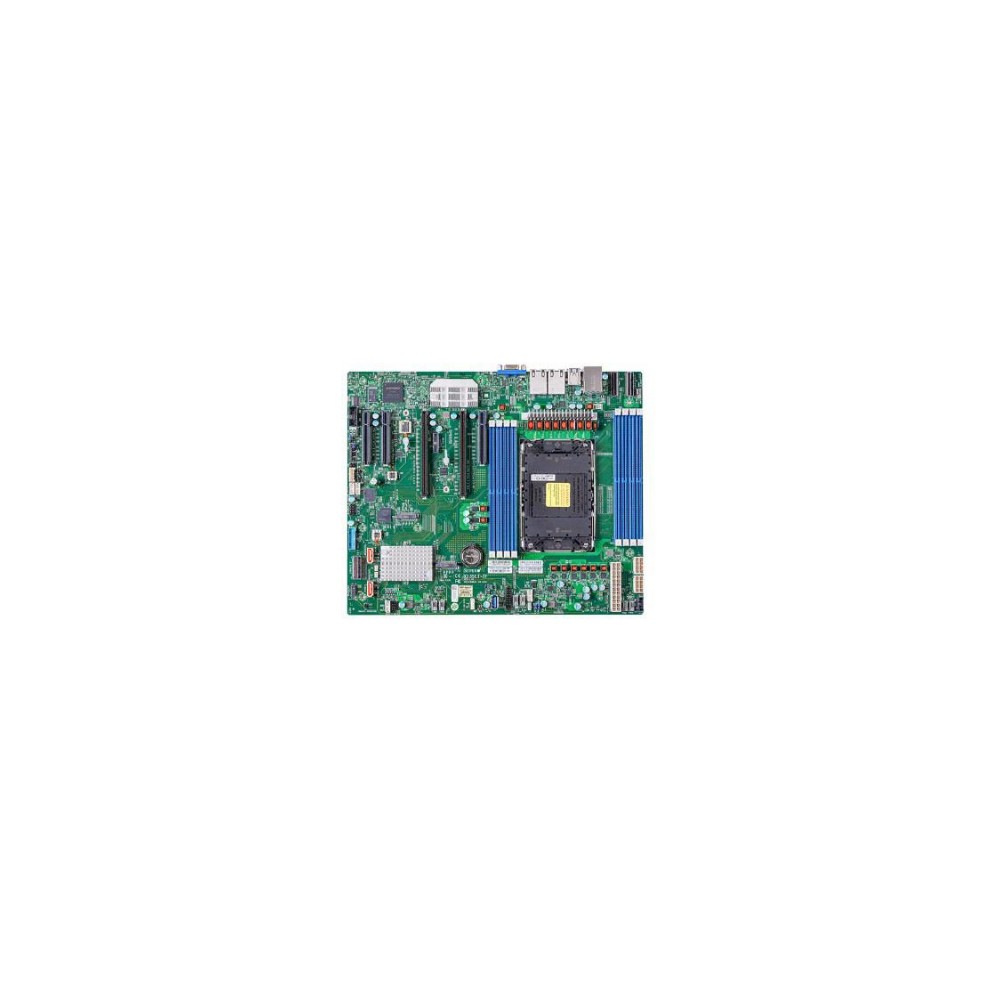

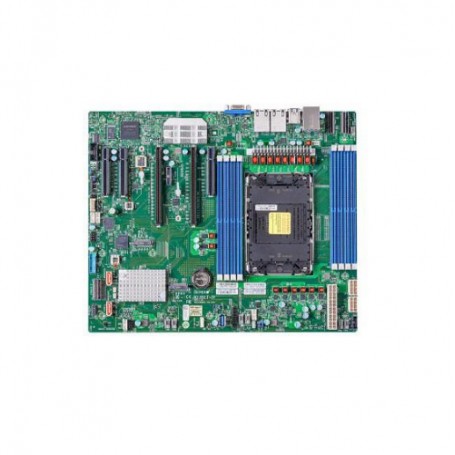

SUPERMICRO COMPUTER MBD-X13SEI-TF-O Server Motherboards View larger

SUPERMICRO COMPUTER MBD-X13SEI-TF-O Server Motherboards

MBD-X13SEI-TF-O

New

X13SEI-TF, LGA-4677-E, Intel EBG PCH, 8x DDR5 4800MHz
×




Detailed Specifications

Dimensions&Miscellaneous
ModelX13SEI-TF
Width12.3 Inch
Depth10.1 Inch

Primary Information
Mainboard Form FactorATX
Networking TypeDual LAN with 10GBase-T with Intel X550
Multi GPU Supported1 Aspeed AST2600 BMC port(s)
Features4th Gen Intel Xeon Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP Intel C741 Chipset Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots 2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs

Processor
Processor / Max Supported Qty1
Processor / Socket TypeFCLGA4677

Memory
RAM / TechnologyDDR5
Data Integrity CheckECC
RAM / Max Supported Size2 TB

Expansion
Expansion Slots Total (Free)PCIe 2 PCIe 5.0 x16, 3 PCIe 5.0 x8, 2 PCIe 5.0 x8 PCIe5.0 MCIO connector M.2 M.2 Interface: 2 PCIe 5.0 x4 Form Factor: 2280/22110 Key: M-Key
Interfaces & ConnectionsSATA 10 SATA3 (6Gbps) port(s) LAN 2 RJ45 10 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 2 port(s) (2 rear) 4 USB 3.2 Gen1 port(s) (2 rear; 1 type A; 1 via header) Video Output 1 VGA D-Sub Connector port(s) Serial Port 1 COM Port(s) (1 header) DOM 2 SATA DOM (Disk on Module) power connector support TPM 1 TPM Header

Special Feature
COOTAIWAN
TAA complianceYes

UNSPSC Code
UNSPSC Code43201513
