Image or description may not match product.

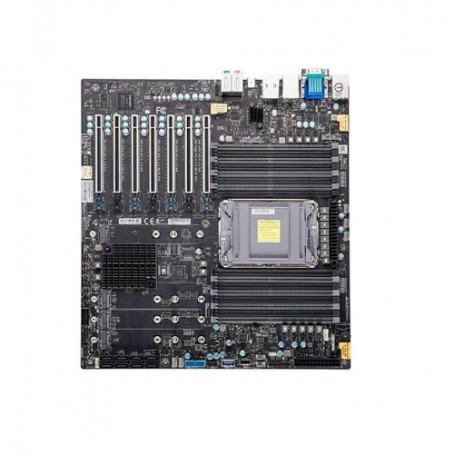

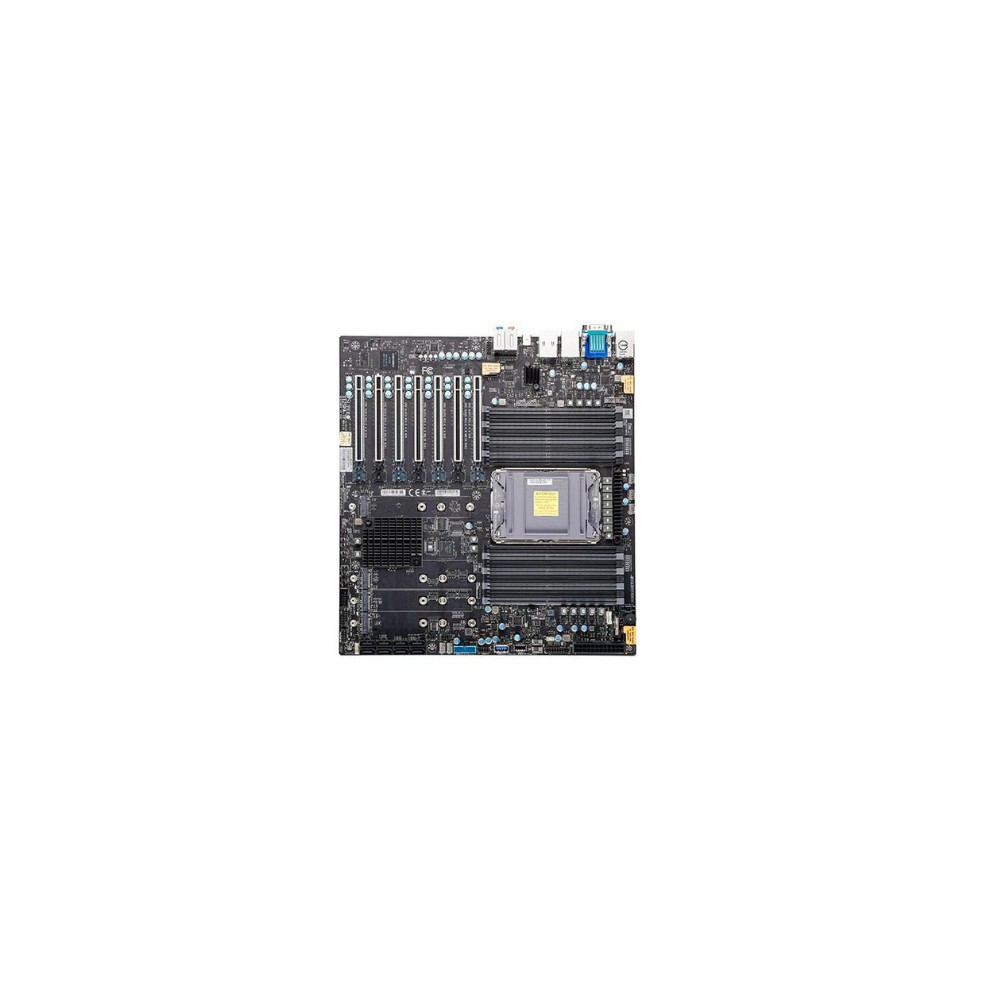

SUPERMICRO COMPUTER MBD-X12SPA-TF-O Server Motherboards View larger

SUPERMICRO COMPUTER MBD-X12SPA-TF-O Server Motherboards

MBD-X12SPA-TF-O

New

Supermicro Flagship Mainboard Intel X12 Chipset
×




Detailed Specifications

Dimensions&Miscellaneous
ModelX12SPA-TF
Width13 Inch
Depth12 Inch

Primary Information
Mainboard Form FactorE-ATX
Mainboard / Chipset TypeIntel C621A
Compatible Processors3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor
Networking TypeSingle LAN with Intel Ethernet Controller I210-AT Single LAN with Realtek RTL8211F PHY (dedicated IPMI) Single LAN with Marvell AQC113
FeaturesBIOS Features ACPI 3.0 / 4.0 SMBIOS 2.7 PCI FW 3.0 RTC (Real Time Clock) Wakeup

Processor
Processor / Socket TypeLGA4189

Memory
RAM / TechnologyDDR4
Data Integrity CheckECC
RAM / Max Supported Size4 TB

Expansion
Expansion Slots Total (Free)PCI-E 4 PCI-E 4.0 x16, 3 PCI-E 4.0 x8 (in x16 slot) PCI-Ex16 Slot 1 shares with M.2, Slot 2 shares with Slot 3(NA/16,8/8), Slot 4 shares with Slot 5(NA/16,8/8), Slot 6 shares with Slot 7(NA/16,8/8) M.2 M.2 Interface: 4 PCI-E 4.0 x4 Form Factor: 2260/2280/22110 Key: M-Key M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
Interfaces & ConnectionsLAN 1 RJ45 Dedicated IPMI LAN port 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports USB 4 USB 2.0 port(s) (2 rear; 2 via header) 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) 1 USB 3.2 Gen2x2 port(s) (1 rear type C) 2 USB 3.2 Gen2 port(s) (1 type A; 1 type C) Video Output 1 VGA port(s) Serial Port 2 COM Port(s) (1 header; 1 rear) DOM 1 SATA DOM power connector (Disk on Module) port TPM 1 TPM Header

Special Feature
COOTAIWAN
TAA complianceYes

UNSPSC Code
UNSPSC Code43201513
