Image or description may not match product.

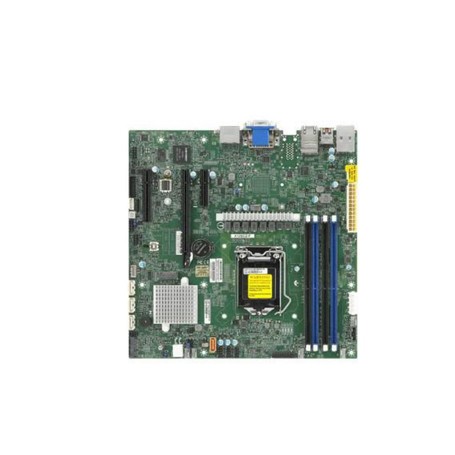

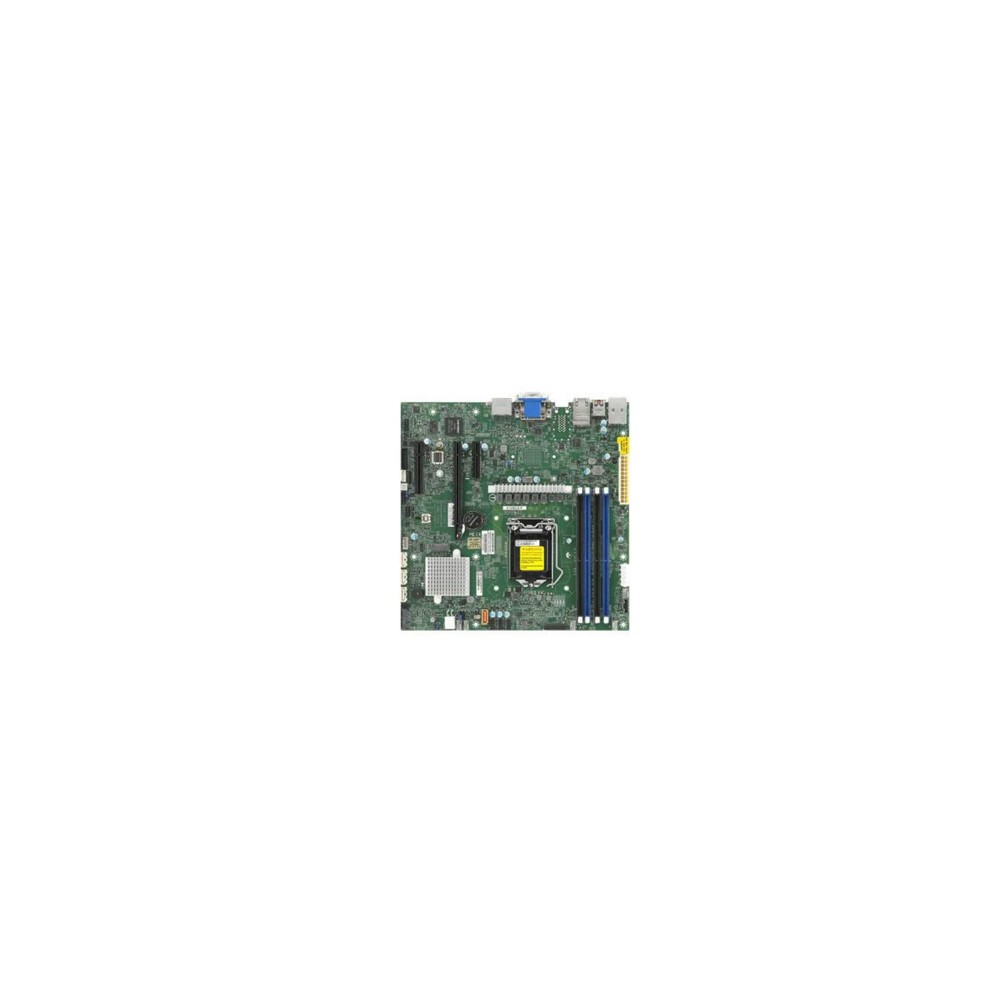

SUPERMICRO COMPUTER MBD-X12SCZ-QF-O Server Motherboards View larger

SUPERMICRO COMPUTER MBD-X12SCZ-QF-O Server Motherboards

MBD-X12SCZ-QF-O

New

Socket H5 / LGA 1200-1 ( to TDP 125W ) CPU(s) Max.-Intel Q470 Chipset-4 RAM Slots-Max. 128GB DDR4 Non-ECC-Aspeed AST2500 Graphics-1x DVI-D Ports-1x VGA Ports-2x DisplayPort Ports-1x...
×




Detailed Specifications

Dimensions&Miscellaneous
ModelX12SCZ-QF
Width9.6 Inch
Depth9.6 Inch

Primary Information
Mainboard Form FactorMicro ATX
Mainboard / Chipset TypeIntel Q470E
Compatible Processors10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Audio Output1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Networking TypeSingle LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet Controller I210-AT
FeaturesUID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source

Processor
Processor / Max Supported Qty1
Processor / Socket TypeLGA1200

Memory
RAM / TechnologyDDR4
Data Integrity CheckNon-ECC
RAM / Max Supported SizeUp to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz GB

Expansion
Expansion Slots Total (Free)PCI-E 1 PCIe 3.0 x4, 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 CNVi/PCIe 3.0 x1 Form Factor: 2280/22110, 2230 Key: M-Key, E-Key
Interfaces & ConnectionsSATA 4 SATA3 (6Gbps) port(s) LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header) 6 USB 2.0 port(s) (6 via header) Video Output 1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s) Serial Port 1 COM Port(s) (1 header) DOM 1 SATA DOM (Disk on Module) power connector support TPM 1 TPM Header & Chip both

Special Feature
RoHSY
COOTAIWAN
TAA complianceYes

UNSPSC Code
UNSPSC Code43201513
