Image or description may not match product.

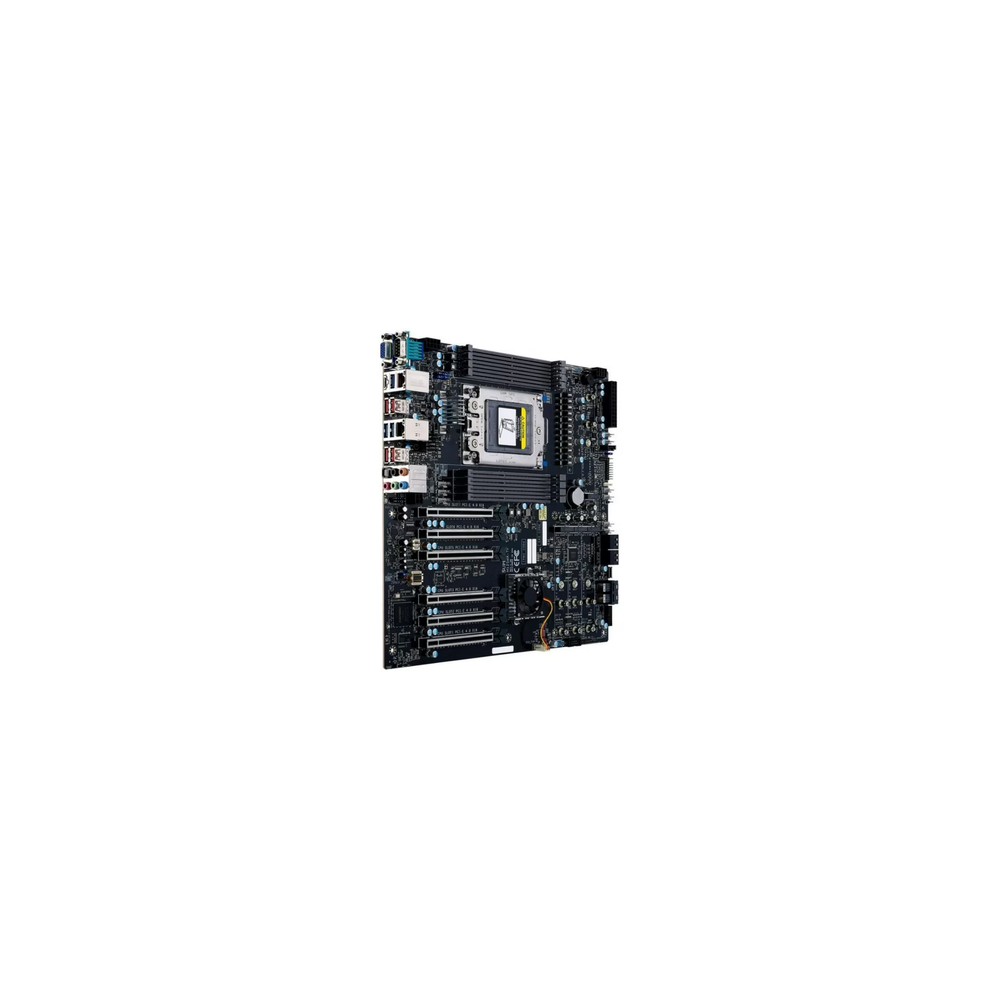

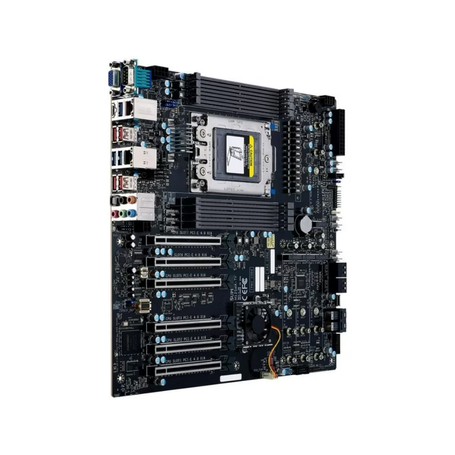

SUPERMICRO COMPUTER MBD-M12SWA-TF-O Server Motherboards View larger

SUPERMICRO COMPUTER MBD-M12SWA-TF-O Server Motherboards

MBD-M12SWA-TF-O

New

WS FLAGSHIPMB EATX AMD TRPRO OLGA409
×




Detailed Specifications

Dimensions&Miscellaneous
ModelM12SWA-TF
Width12 Inch
Depth13 Inch

Primary Information
Mainboard Form FactorE-ATX
Mainboard / Chipset TypeAMD WRX80 Chipset
Compatible ProcessorsAMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor, up to 64 Cores
Audio OutputALC4050H + ALC1220 7.1 Channel HD Audio
FeaturesAMI 256Mb Flash EEPROM

Processor
Processor / Socket TypeSocket SP3

Memory
Data Integrity CheckECC; Non-ECC
RAM / Max Supported SizeUp to 2TB (RDIMM) / 256GB (UDIMM) TB

Storage
Controller Interface TypeSATA III

Expansion
Expansion Slots Total (Free)PCI-Express 6 PCI-E 4.0 x16 slots M.2 Interface: 4 PCI-E 4.0 x4 Form factor: 2280, 22110 Key: M-key Software RAID 0,1,5,10 support U.2 Interface: 2 U.2 Sockets Software RAID 0,1 support
Interfaces & ConnectionsSATA 4 SATA3 (6 Gbps) ports LAN 1 RJ45 10GBase-T LAN port 1 RJ45 GbE LAN port (shared with IPMI) USB 1 USB 3.2 Gen2x2 port (Type C, 20Gbps) 5 USB 3.2 Gen2 ports (4 Type A, 1 Type C header, 10Gbps) 5 USB 3.2 Gen1 ports (3 Type A, 1 via header) 2 USB 2.0 via header VGA 1 VGA port (dedicated for IPMI) Others 1 COM port (rear) 1 TPM 2.0 header

Special Feature
RoHSNone
COOTAIWAN

UNSPSC Code
UNSPSC Code43201513
