Detailed Specifications
Eaton B078-101-USB-8 - NetCommander USB SIU 8-Pack
Overview
The Eaton B078-101-USB-8 is a bulk pack of eight USB Server Interface Units (SIU) intended for use with Eaton/Tripp Lite NetCommander Cat5 KVM switches. These SIUs are deployed by datacenter infrastructure teams and system administrators to simplify physical KVM connections on rack-mounted systems by converting traditional triple-lead KVM connections to a consolidated Cat5e link. They address cable bulk, distance limitations, and deployment complexity inherent to thick proprietary KVM leads.

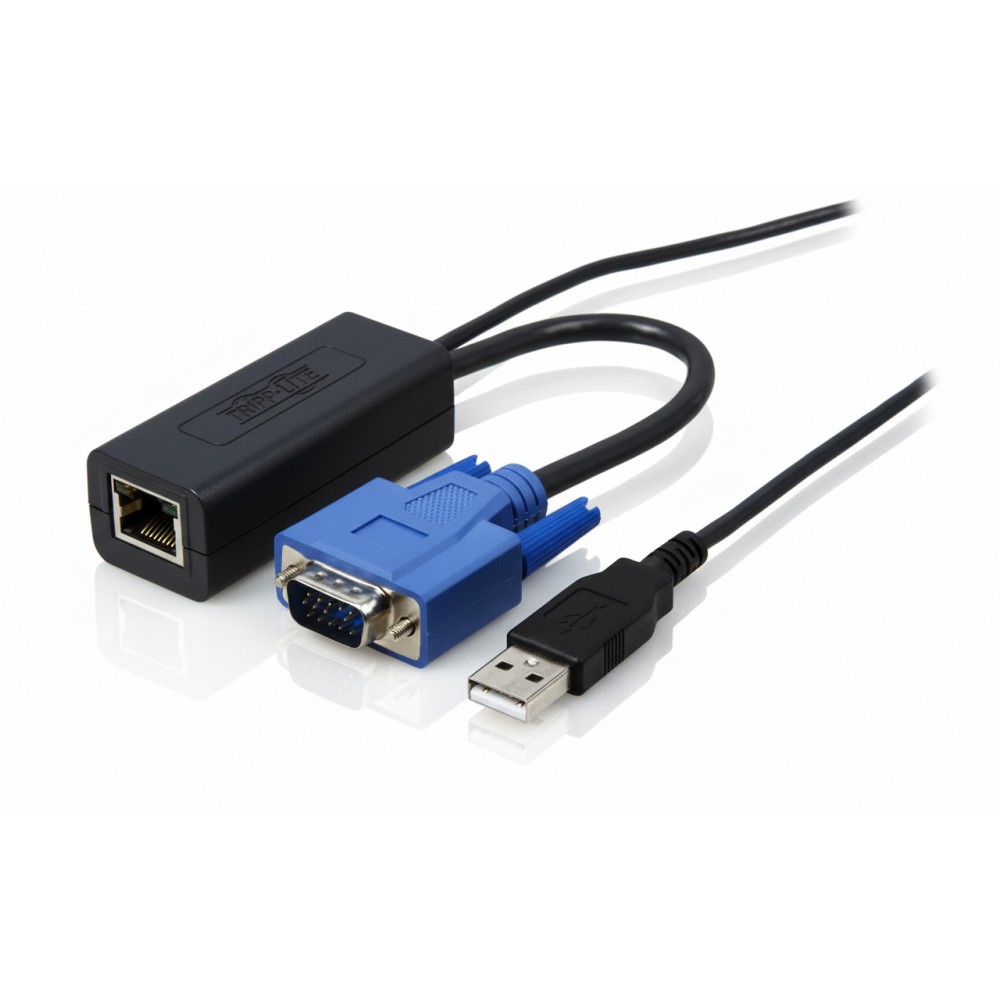

Each SIU unit connects to a server's HD-15 VGA port and USB port, aggregating video and USB keyboard/mouse signaling over a single RJ-45 jack that mates to a NetCommander KVM switch via standard Cat5e cabling. This arrangement enables patch-panel style cabling discipline and reduces cable congestion in dense rack environments.
Mechanically compact and lightweight, the SIUs attach directly to the server's VGA and USB ports without requiring a separate power supply or software drivers. They support a recommended maximum Cat5e cable length of 100 ft (30 m) between the SIU and the KVM switch, helping maintain signal integrity across medium-sized wiring closets or IDF racks.
This pack is designed specifically for NetCommander B070 and B072-series Cat5 KVM switches; it is not compatible with the IP-enhanced ("-IP") variants of those switches. Ensure the target servers possess both VGA and USB ports before deployment; servers with Digital-only video outputs require appropriate adapters.
For typical deployment, use this 8-pack where multiple servers in a cabinet require controlled local KVM access via Cat5e infrastructure. It should not be used as a universal VGA/USB extender beyond the specified KVM ecosystem or for connections exceeding 100 ft without active extenders.
Key Features
- Pack of 8 USB Server Interface Units (SIU) for NetCommander KVM
- Converts server VGA + USB to single RJ45 Cat5e connection
- Supports up to 100 ft (30 m) Cat5e link to KVM switch
- Plug-and-play; no drivers or external power required
- Reduces thick KVM cable bulk in rack deployments
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | B078-101-USB-8 |
| Product Type | KVM Server Interface Unit Pack |
| Pack Quantity | 8 SIUs |
| Compatibility | NetCommander B070/B072 Cat5 KVM Switches |
| Server Interfaces | HD15 (VGA, male), USB-A (male) |
| Remote Link Connector | RJ45 (female) |
| Distance Support | Up to 100 ft Cat5e/6 |
| Connectivity | VGA, USB keyboard/mouse, Cat5e/6 |
| Installation | Plug-and-play; no software/power |
| Material | ABS plastic housing |
| Color | Gray |
| Certifications/Compliance | RoHS, CE, FCC, REACH, TAA |
| Operating Temp. | Typical room rack range (0 - 40 °C) inferred from ecosystem standards |
| Weight (Pack) | ~0.08 lb each approx; pack weight nominal |
| Country of Origin | Taiwan |
| Warranty | 3-year limited (manufacturer standard |
