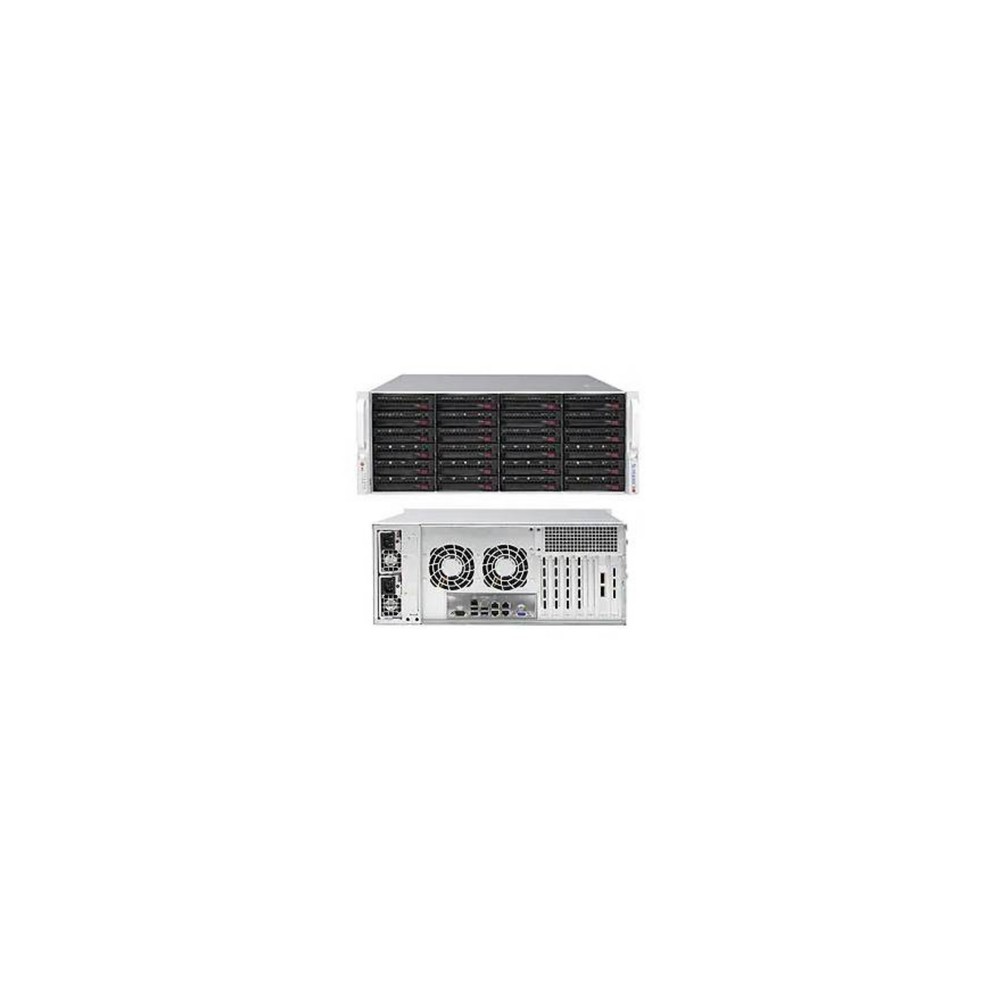

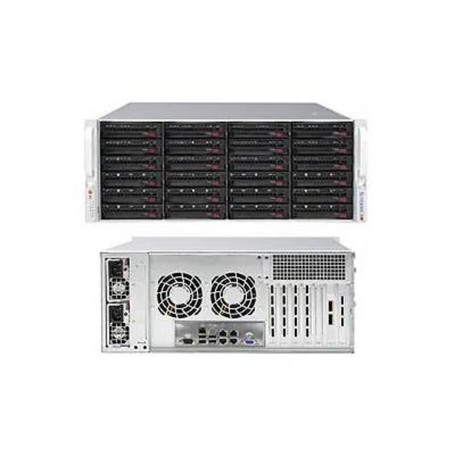

SUPERMICRO COMPUTER CSE-846BE1C-R1K28B Server Chassis View larger

SUPERMICRO COMPUTER CSE-846BE1C-R1K28B Server Chassis

CSE-846BE1C-R1K28B

New

CSE-846BE1C-R1K28B - Chassis - 4U - E-ATX,EE-ATX,ATX - 24 x 3.5 hot-swap drive bay - Power Supply - 1280Watt - Black
×




Detailed Specifications

Cabinet
Cabinet TypeChassis
Cabinet Form Factor4U
Mainboard Form FactorEE-ATX; ATX; E-ATX
Hot-Swap Bays Qty24 x 3.5" hot-swap drive bay
Number of Fans Supported3 x 8cm hot-swap redundant PWM cooling fan(s) 10.5K RPM Upgrade for X11: FAN-0185L4 2 x 80mm rear hot-swap exhaust PWM fan(s)
Features24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD; 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus

Power
Redundant Power SupplyYes
Power / Device TypePower Supply
Power / Provided (W)1280 Watt
Power / Voltage Required180 - 240 VAC

Expansion
Expansion Slots Total (Free)7 full-height & full-length expansion slot(s)

Dimensions&Miscellaneous
ColorBlack
Width17.2 Inch
Depth26 Inch
Height7 Inch

Primary Information
ModelCSE-846BE1C-R1K28B

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43201601
