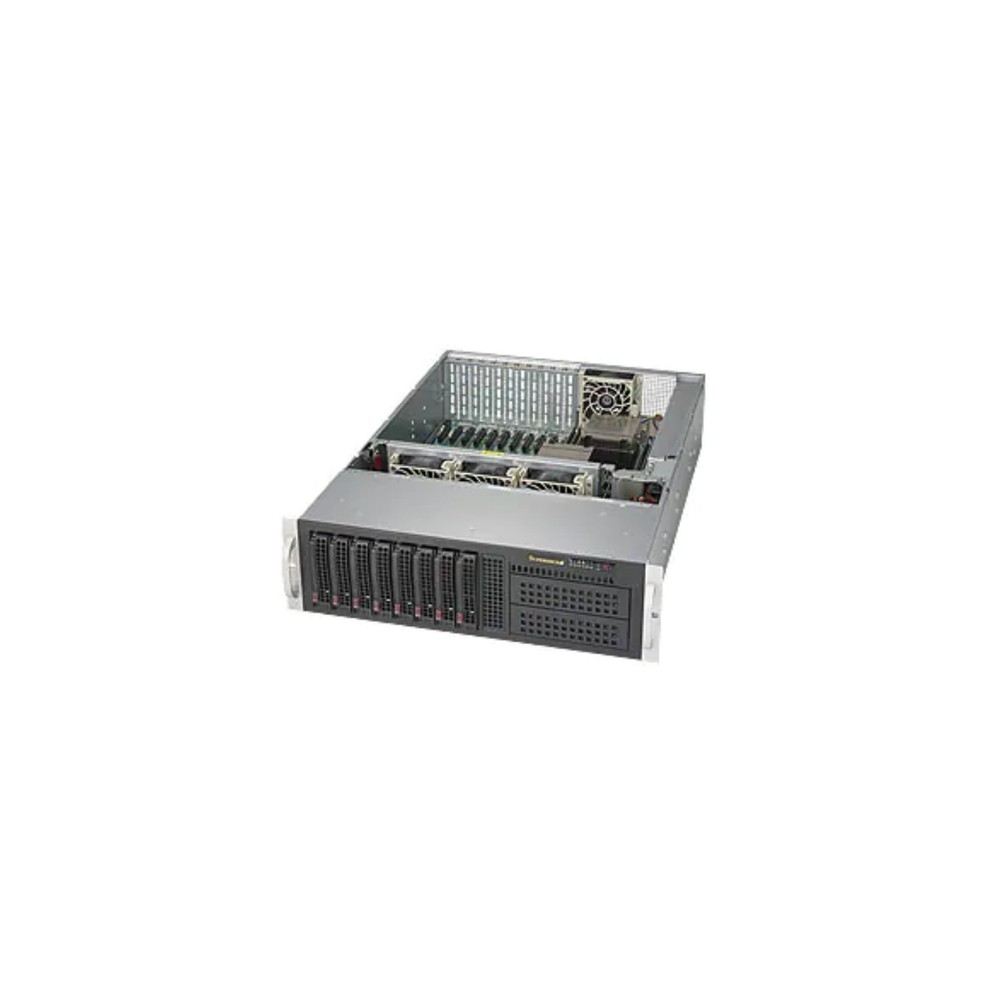

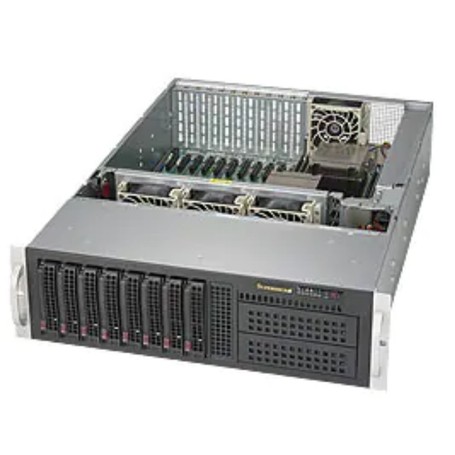

SUPERMICRO COMPUTER SYS-6038R-TXR Server Barebones View larger

SUPERMICRO COMPUTER SYS-6038R-TXR Server Barebones

SYS-6038R-TXR

New

CSE-835XTQ-R982B-Server Barebone-3U-Xeon-10 Gigabit Ethernet-Power Supply-Redundant-8x 3.5 Hot-swap drive bays.Others :2x 5.25 drive bays.
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor3U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty8
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA-3
Hard Drive / Bays Qty3
RAID LevelRAID 0, 1, 5
Data Link Protocol10 Gigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1600 Watt
Power / Voltage Required180- 240Vac
Interfaces & ConnectionsSerial ATA : 10x SATA3 (6Gbps) ports, LAN : 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB : 5x USB 3.0 ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 ports (2 rear, 2 via headers), Serial Port / Header : 2x COM ports (1 rear, 1 Header). VGA : 1x VGA port. DOM : 2x SuperDOM (Disk on Module) ports. TPM : 1x TPM 1.2 20-pin Header.
Expansion Bays Total (Free)8x 3.5" Hot-swap drive bays. Others : 2x 5.25" drive bays.
Expansion Slots Total (Free)10x PCI-E 3.0 x8 slots, 1x PCI-E 2.0 x4 (in x8) slot
ModelCSE-835XTQ-R982B
Width17.2 Inch
Depth25.5 Inch
Height5.2 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
