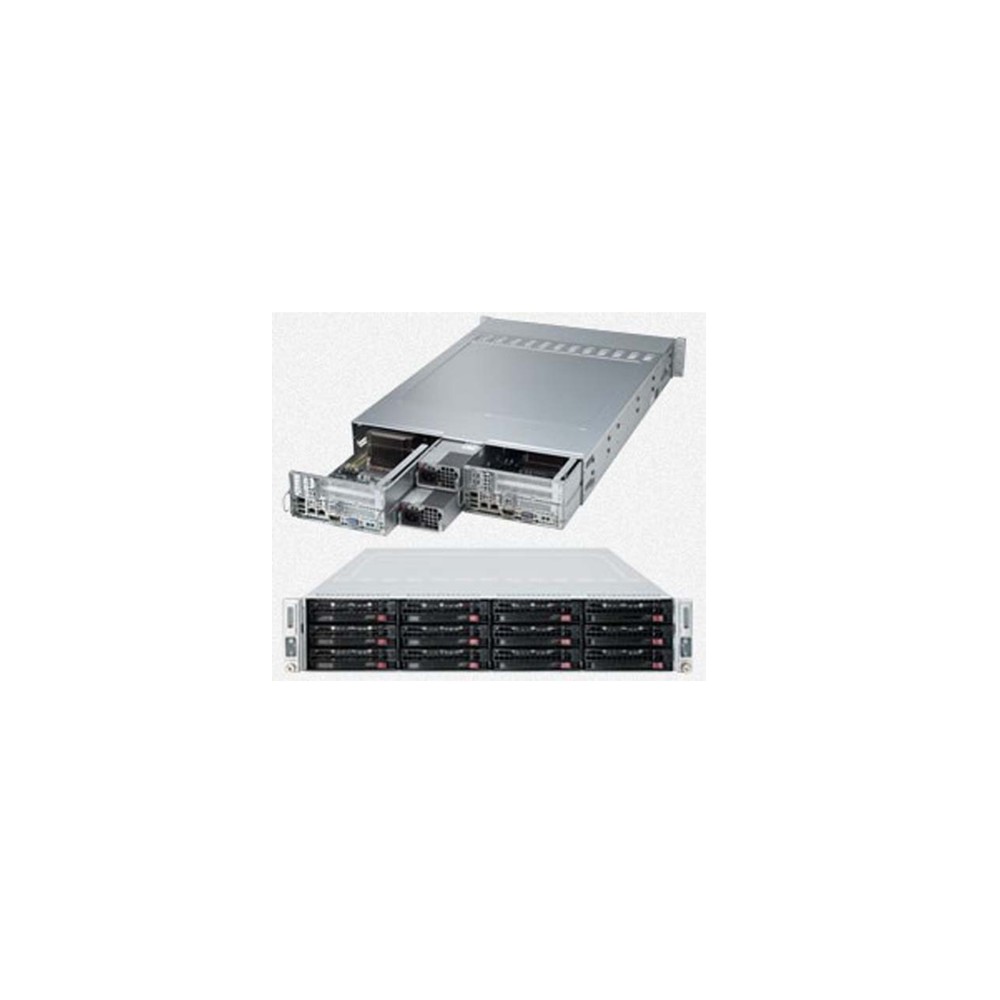

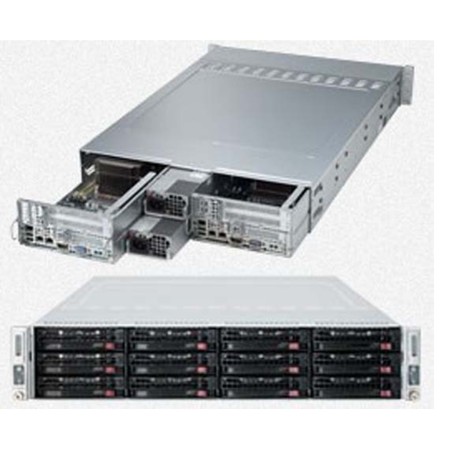

SUPERMICRO COMPUTER SYS-6027TR-D71RF Server Barebones View larger

SUPERMICRO COMPUTER SYS-6027TR-D71RF Server Barebones

SYS-6027TR-D71RF

New

CSE-827HD-R1K28B-Server Barebone-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-6x 3.5 Hot-swap SATA3/SAS2 HDD trays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C602
RAM / TechnologyDDR3
RAM / Total Slots Qty8
RAM / Max Supported SizeUp to 512 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS; SATA-3
Hard Drive / Bays Qty6
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1280 Watt
Power / Voltage Required180-240V
Interfaces & ConnectionsSerial ATA 2x SATA 3.0 ports (6Gbps), 5x SATA 2.0 ports (3Gbps), SAS 8x SAS2 ports (6Gbps), LAN 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB 3x USB 2.0 ports total, (2x rear + 1x Type A), VGA 1x VGA port, Serial Port / Header 1x Fast UART 16550 port / 1 Header.
Expansion Bays Total (Free)6x 3.5" Hot-swap SATA3/SAS2 HDD trays
Expansion Slots Total (Free)3x PCI-E 3.0 (x8) slots (1x Low-profile and 2x Full-height half-length)
ModelCSE-827HD-R1K28B
Width17.25 Inch
Depth28.5 Inch
Height3.47 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
