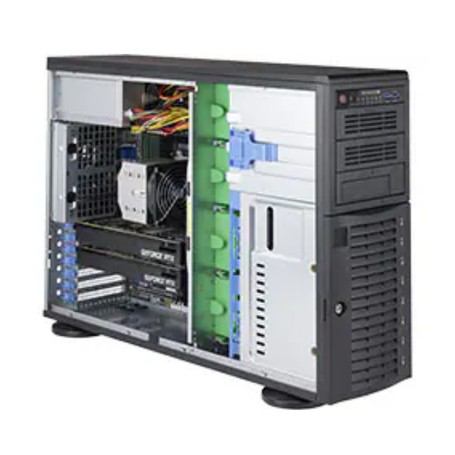

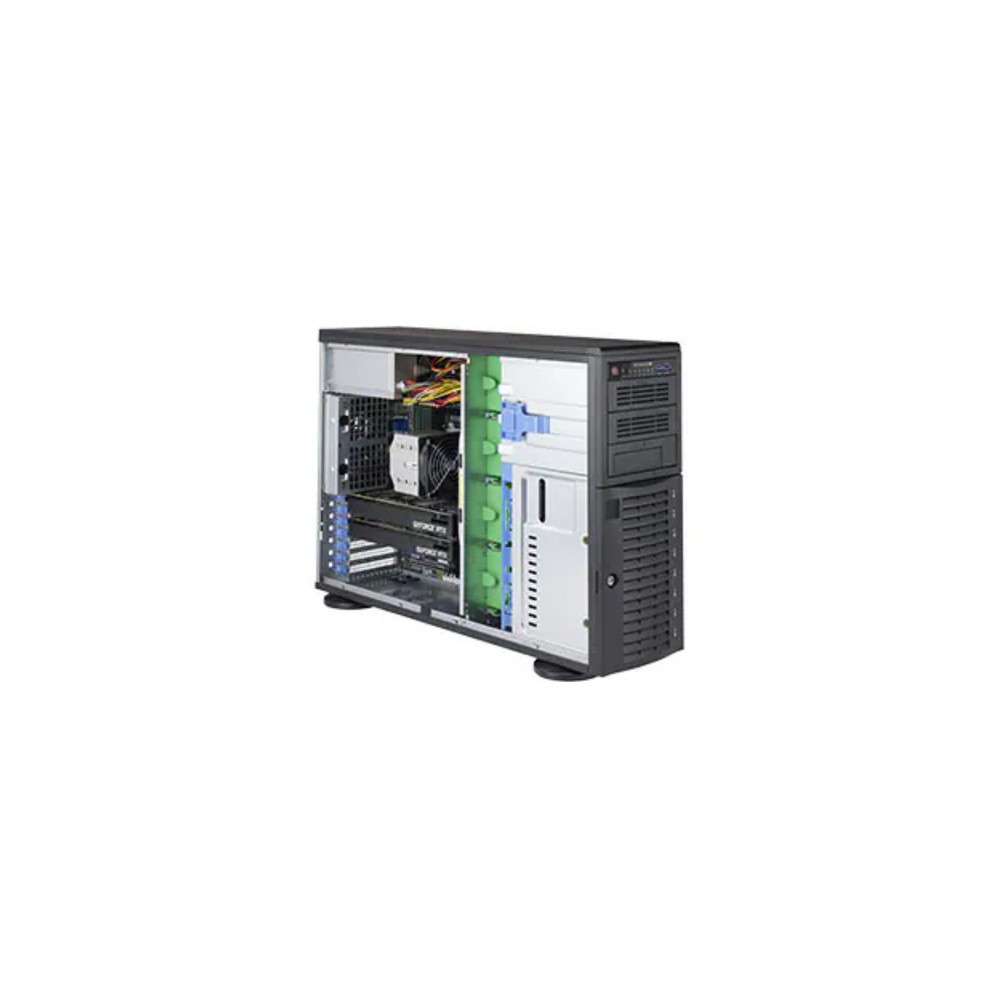

SUPERMICRO COMPUTER SYS-5049A-T Server Barebones View larger

SUPERMICRO COMPUTER SYS-5049A-T Server Barebones

SYS-5049A-T

New

SuperWorkstation 5049A-T -Server-4U-Xeon-Gigabit Ethernet-Power Supply-8 Hot-swap 3.5 SAS3/SATA3 drive bays(SATA3 default),3x 5.25 drive bays.
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty1
Mainboard / Chipset TypeIntel C621
RAM / TechnologyDDR4
RAM / Total Slots Qty12
RAM / Max Supported Size3 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty11
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)1200 Watt
Power / Voltage Required120 - 240Vac
Interfaces & Connections8 SATA3 (6Gbps) ports, 1 RJ45 Gigabit Ethernet LAN port, 1 RJ45 10GBase-T Ethernet LAN port, 1 RJ45 Dedicated IPMI LAN port, 6 USB 3.1 Gen1 ports (4 rear, 2 headers), 4 USB 3.1 Gen2 ports (1 rear Type A, 1 rear Type C, 1 Type A header, 1 Type C header), 2 USB 2.0 ports (2 headers, Type A), 7.1 HD Audio with optical S/PDIF, 1 VGA port via AST2500 BMC, 2 COM ports (1 rear, 1 header), 1 TPM 2.0 Header.
Expansion Bays Total (Free)8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default), 3x 5.25" drive bays.
Expansion Slots Total (Free)4 PCI-E 3.0 x16 slots, 3 PCI-E 3.0 x8 (in x16 slot).
ModelSuperWorkstation 5049A-T
Width7 Inch
Depth25.5 Inch
Height17.8 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
