| Primary Information |
|---|

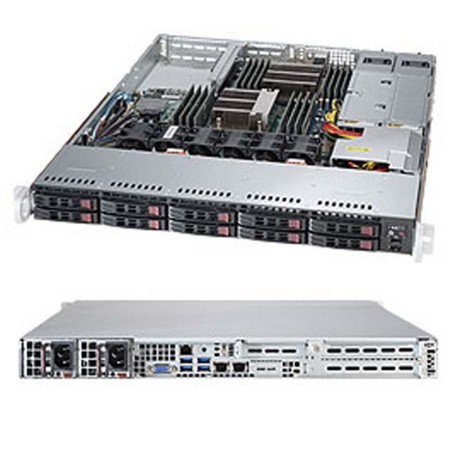

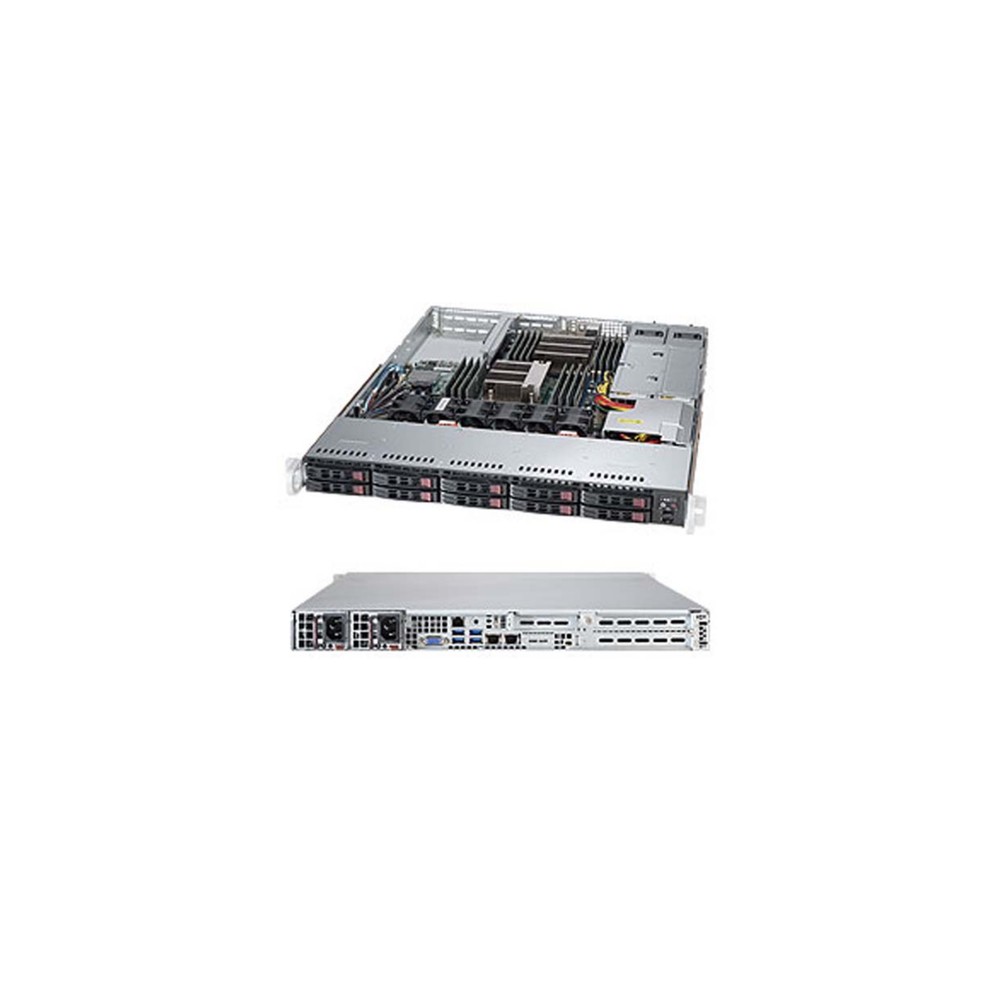

| System Type | Server Barebone |
| Cabinet Form Factor | 1U |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Max Supported Qty | 2 |
| Mainboard / Chipset Type | Intel C612 |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 16 |
| RAM / Max Supported Size | 2 TB |
| Hard Drive / Size | 2.5" |
| Hard Drive / Interface Type | SAS/SATA |
| Storage Controller Type | PCI Express |
| RAID Level | RAID 0, 1; RAID 0, 1, 5, 6, 10, 50, 60 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply - Redundant |
| Interfaces & Connections | Serial ATA: 2 SATA3 (6Gbps) ports, SAS ;8 SAS3 (12Gbps) ports, LAN :2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port, USB:6 USB 3.0 ports (4 rear + 2 via header), VGA :1 VGA port, Serial Port / Header ;1 Fast UART 16550 header, DOM :2 SuperDOM (Disk on Module) ports. |
| Expansion Bays Total (Free) | 10 Hot-swap 2.5" SAS/SATA HDD trays (Default 8 SAS3, 2 SATA3) |
| Expansion Slots Total (Free) | 2 PCI-E 3.0 x16 full-height, Half-length slots |
| Model | CSE-116AC2-R706WB |
| Width | 17.2 Inch |
| Depth | 23.5 Inch |
| Height | 1.7 Inch |
| Enclosure Color | Black |
| Features | 1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 2 PCI-E 3.0 x16 (FHHL) slots 4. 10 Hot-swap 2.5" SAS/SATA drive bays; (default 8 SAS3, 2 SATA3) 5. SAS3 (12Gbps) via Broadcom 3108 6. Intel i350 Dual port GbE LAN 7. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front) 8. Optional 2x 2.5" NVMe drives support 9. 750W Redundant Power Supplies Platinum Level High-efficiency |
| RoHS | Y |
