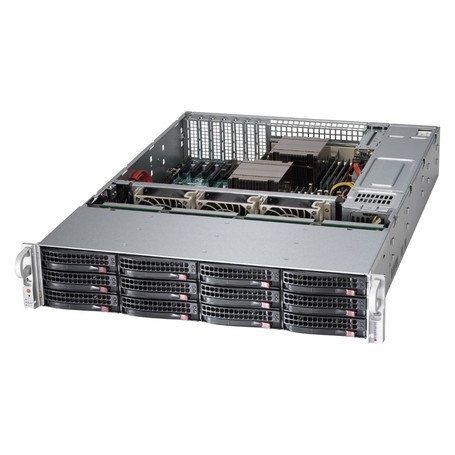

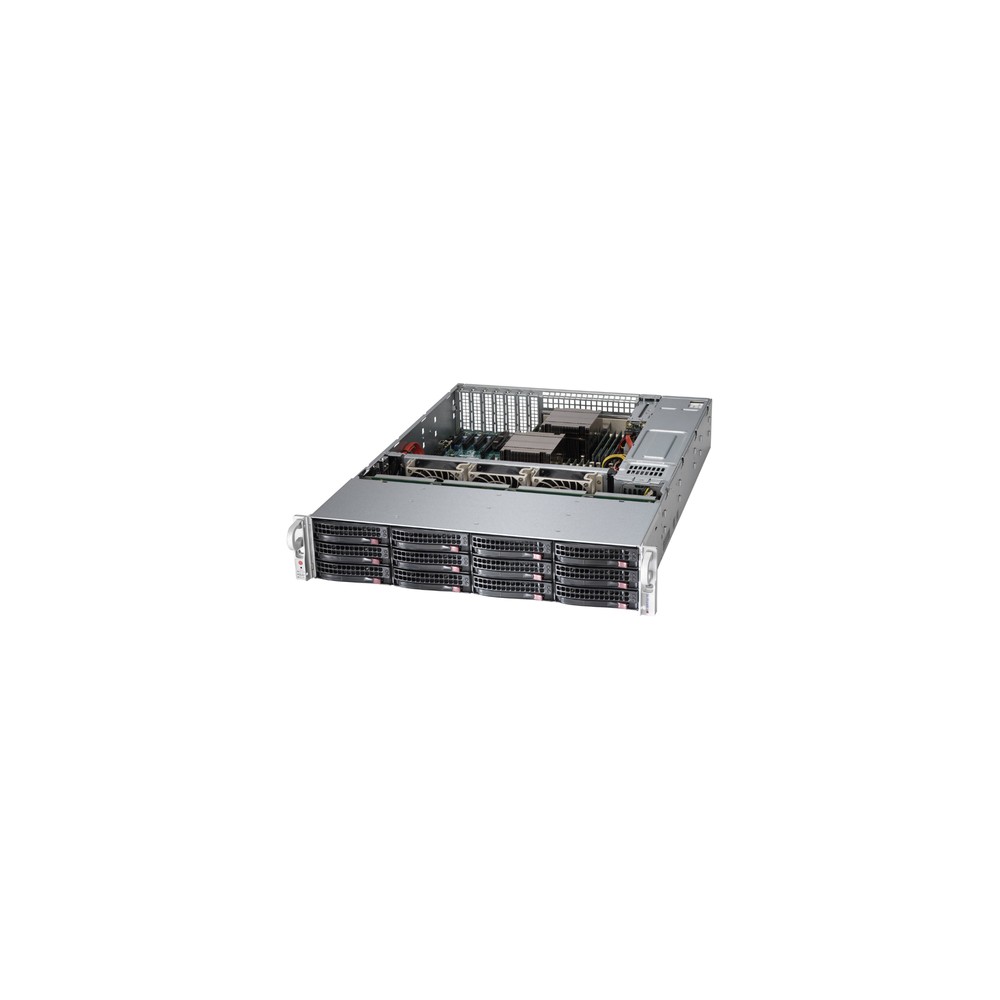

SUPERMICRO COMPUTER SSG-6028R-E1CR12H Server Barebones

Name: SUPERMICRO COMPUTER SSG-6028R-E1CR12H Server Barebones
Brand: SUPERMICRO COMPUTER
SKU: SSG-6028R-E1CR12H

Part No: SSG-6028R-E1CR12H

Condition: New

Short Description: Super Server-Intel, X10DRH-IT, CSE-826BTS-R920LPBP-1, Black

Quantity

Name ^*

Email ID ^*

Contact Number ^*

Country ^*

Enter Inquiry Details ^*

Verification Code^*

Primary Information
System Type	Server
Model	SSG-6028R-E1CR12H
Cabinet Form Factor	2U
Processor / Manufacturer	Intel
Processor / Type	Xeon
Processor / Number	E5-2600
Multi-Core Technology	22-Core
Mainboard / Chipset Type	Intel C612
RAM / Technology	DDR4
RAM Form Factor	DIMM 288-pin
RAM / Total Slots Qty	16
Hot-Swap Bays Qty	12
Controller Interface Type	SATA 6 Gb/s; SAS 12 Gb/s
Graphics Controller	ASPEED AST2400 BMC
Power / Voltage Required	100-240 V, 50-60 Hz, 11-4.5 Amp
Interfaces & Connections	LAN :2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port USB :2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) 1 Type A VGA :1 VGA port Serial Port / Header 1 Fast UART 16550 port / 1 Header
Width	17.2 Inch
Depth	3.5 Inch
Height	25.6 Inch
Min Operating Temperature	10 Celsius
Max Operating Temperature	35 Celsius
Humidity Range Operating	8% to 90% (non-condensing)

Storage
Hot-Swap Bays Qty	12

Video
Graphics Controller	ASPEED AST2400 BMC

Power
Power / Voltage Required	100-240 V, 50-60 Hz, 11-4.5 Amp

Expansion
Interfaces & Connections	LAN :2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port USB :2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) 1 Type A VGA :1 VGA port Serial Port / Header 1 Fast UART 16550 port / 1 Header

UNSPSC Code
UNSPSC Code	43211502
