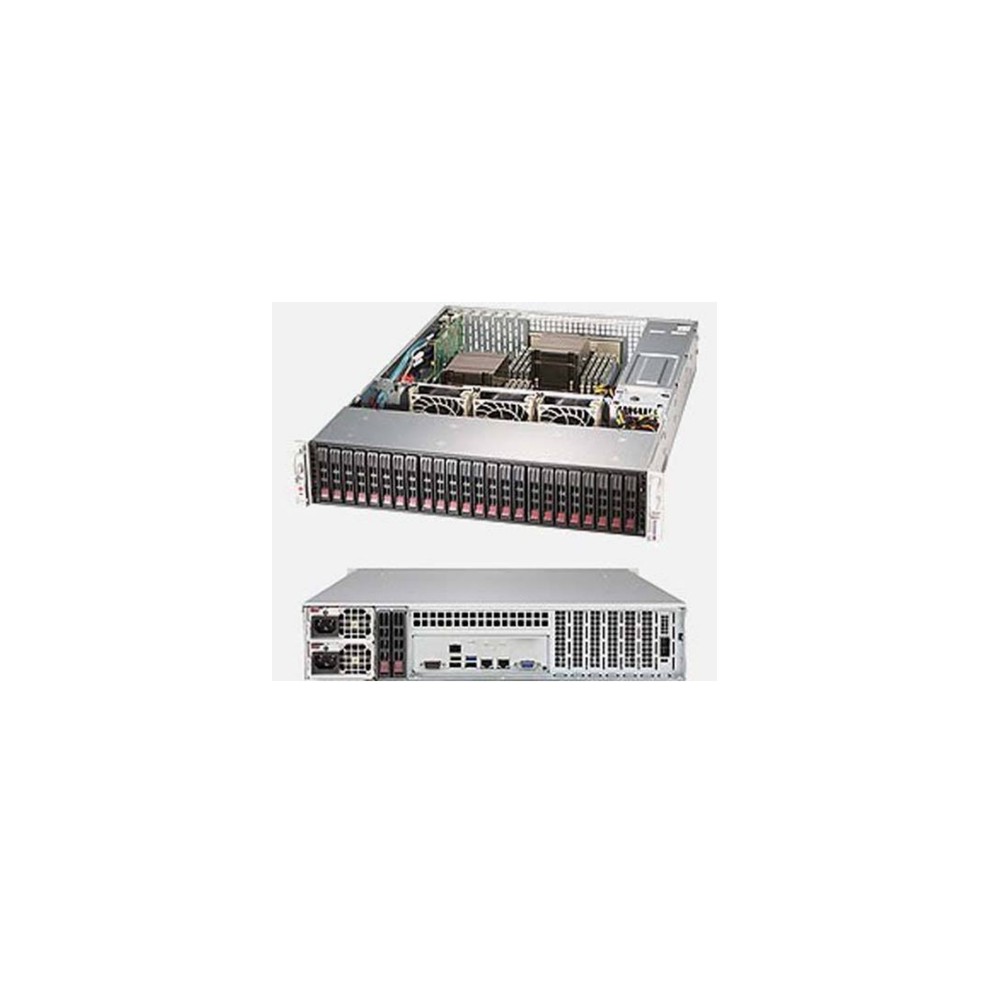

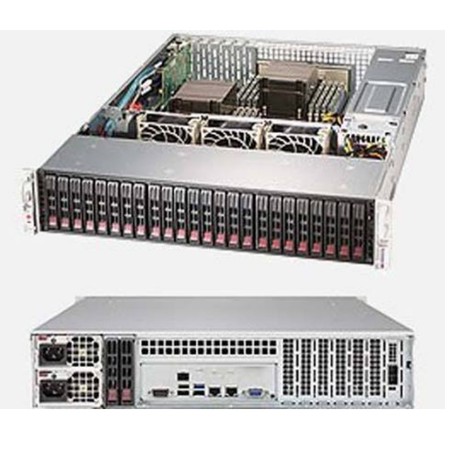

SUPERMICRO COMPUTER SSG-2028R-E1CR24L Server Barebones View larger

SUPERMICRO COMPUTER SSG-2028R-E1CR24L Server Barebones

SSG-2028R-E1CR24L

New

SuperStorage 2028R-E1CR24L, Black - 2U - Gigabit Ethernet - Intel Xeon processor E5-2600 v4/ v3 family - 16x 288-pin DDR4 DIMM slots - Intel C612 chipset - Power Supply 100-240 V
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS 3; SATA 3
Hard Drive / Bays Qty24
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)920 Watt
Power / Voltage Required100-240 V
Interfaces & Connections2 RJ45 10GBase-T LAN ports; 1 RJ45 Dedicated IPMI LAN port; 2 USB 3.0 ports (rear); 2 USB 2.0 ports (rear); 1 Type A; 1 VGA port; 1 Fast UART 16550 port / 1 Header
Expansion Slots Total (Free)1 PCI-E 3.0 x16 slot, 6 PCI-E 3.0 x8 slots
ModelSSG-2028R-E1CR24L
Width17.2 Inch
Depth24.8 Inch
Height3.5 Inch
Enclosure ColorBlack
FeaturesDual 10GBase-T LAN w/ Intel X540; SAS3 via Broadcom 3008 controller; IT mode; 920W Redundant Power Supplies Platinum Level (94%)

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
