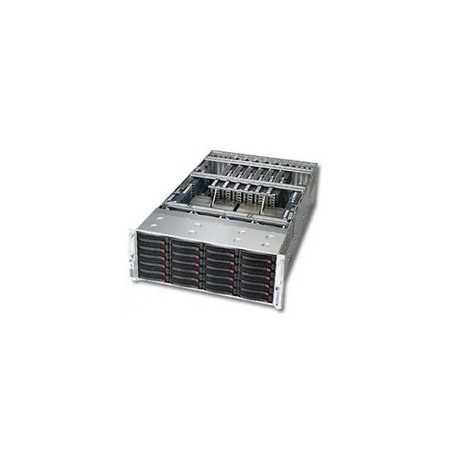

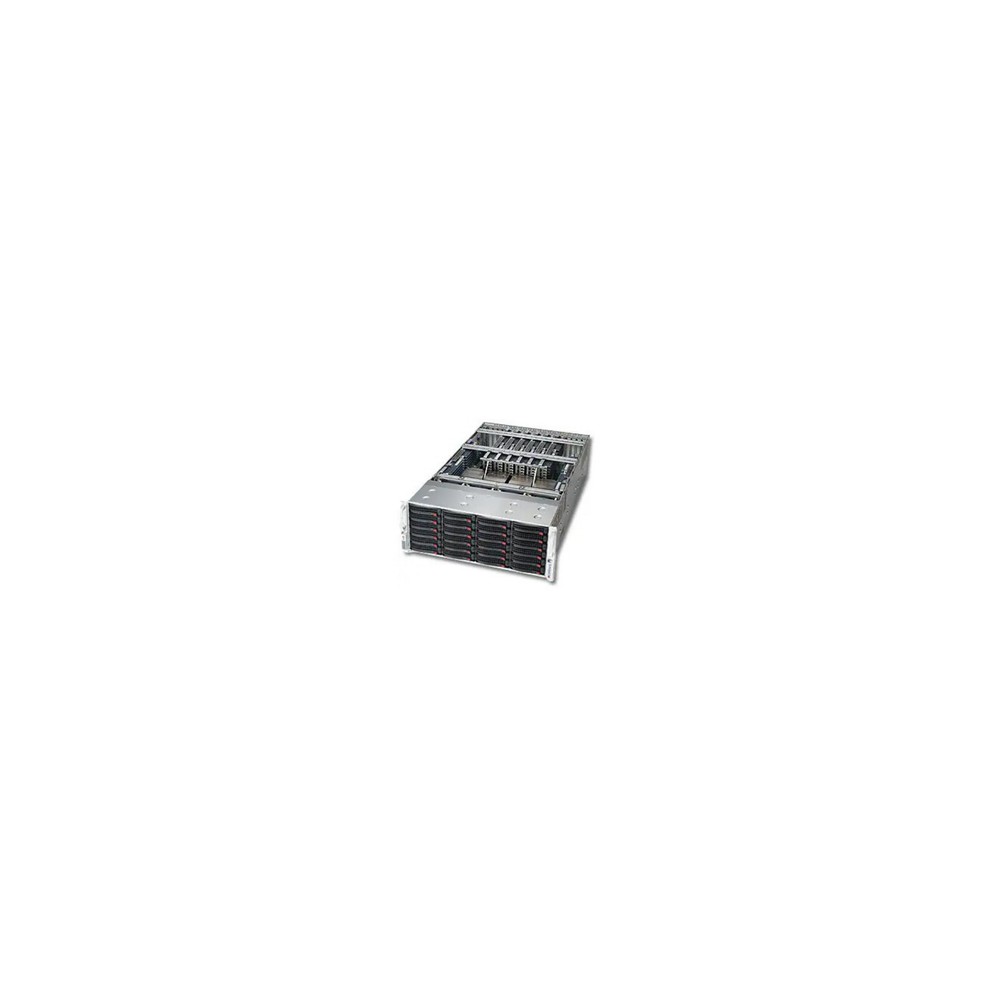

SUPERMICRO COMPUTER SYS-8048B-TRFT Server Barebones View larger

SUPERMICRO COMPUTER SYS-8048B-TRFT Server Barebones

SYS-8048B-TRFT

New

SYS-8048B-TRFT - Server Barebone - 4U - Xeon - Gigabit Ethernet - Power Supply - 2x SATA3 (6Gbps) ports, 4x SATA2 (3Gbps) ports, 2x RJ45 10GBase-T ports on AOM, 1x dedicated LAN port for...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty4
Mainboard / Chipset TypeIntel C602J
RAM / TechnologyDDR4
RAM / Total Slots Qty96
RAM / Max Supported Size6 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA 3; SAS 2
Hard Drive / Bays Qty24
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)1620 Watt
Power / Voltage Required180-240V
Interfaces & Connections2x SATA3 (6Gbps) ports, 4x SATA2 (3Gbps) ports, 2x RJ45 10GBase-T ports on AOM, 1x dedicated LAN port for IPMI on AOM, 2x USB 2.0 ports, 2x Fast UART 16550 ports: 1 rear and 1 header, 1 DOM (Disk on Module) power connector
Expansion Slots Total (Free)11x PCI-E 3.0 slots w/ 48 memory slots (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8) 8x PCI-E 3.0 slots w/ 96 memory slots (4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)
ModelSYS-8048B-TRFT
Width17.2 Inch
Depth32.1 Inch
Height7 Inch
Enclosure ColorBlack
FeaturesQuad socket R1 (LGA 2011) supports Intel Xeon processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
