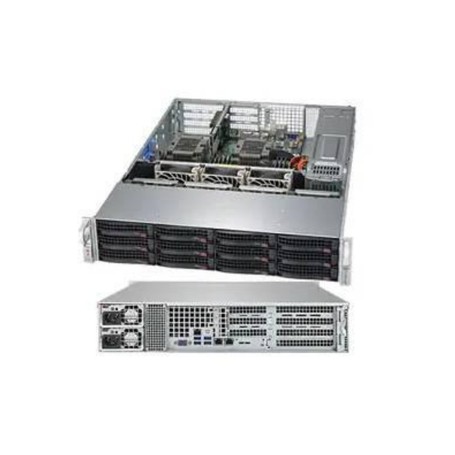

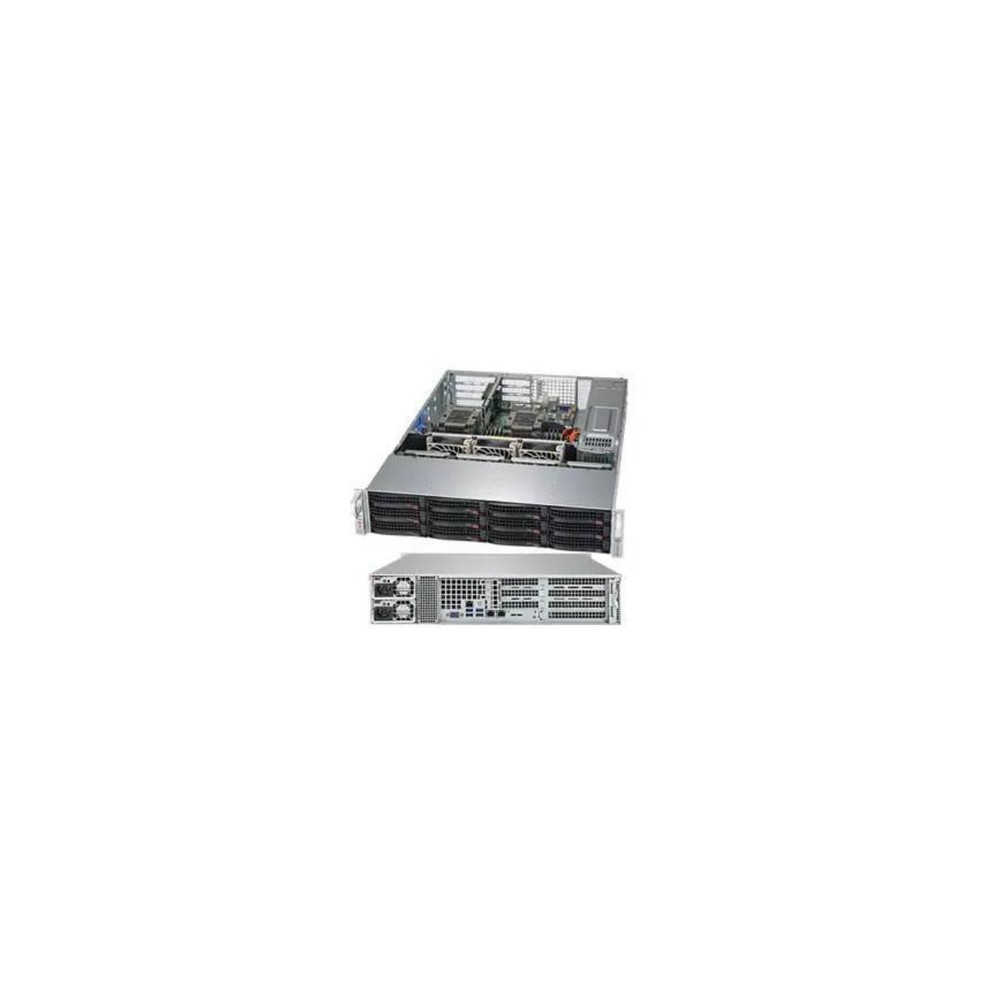

SUPERMICRO COMPUTER SYS-6029P-WTRT Server Barebones View larger

SUPERMICRO COMPUTER SYS-6029P-WTRT Server Barebones

SYS-6029P-WTRT

New

CSE-826BAC4-R1K23WB-Server Barebone-2U-Xeon-10 Gigabit Ethernet-Power Supply-Redundant-12 Hot-swap 3.5 SAS/SATA drive bays with SES2 and Mini-i-Pass(SFF 8087)connectivity
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C622
RAM / TechnologyDDR4
RAM / Total Slots Qty12
RAM / Max Supported Size3 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA-3
Hard Drive / Bays Qty12
Storage Controller TypeNVMe
RAID LevelRAID 0, 1, 5, 10
Data Link Protocol10 Gigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1200 Watt
Interfaces & ConnectionsSATA : 12 SATA3 (6 Gbps) ports. LAN : 2 RJ45 10GBase-T ports. 1 RJ45 Dedicated IPMI LAN port. USB : 4 USB 3.0 ports (rear). Video : 1 VGA port. DOM : 2 SuperDOM (Disk on Module) ports.
Expansion Bays Total (Free)12 Hot-swap 3.5" SAS/SATA drive bays with SES2 and Mini-i-Pass (SFF 8087) connectivity
Expansion Slots Total (Free)1 PCI-E 3.0 x16 (FHHL) slot, 2 PCI-E 3.0 x8 (FHHL) slots, 2 PCI-E 3.0 x8 (LP) slots, 1 PCI-E 3.0 x16 for Add-on-Module (AOM), 1 PCI-E 3.0 x4 NVMe M.2 slot
ModelCSE-826BAC4-R1K23WB
Width17.2 Inch
Depth25.5 Inch
Height3.5 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
