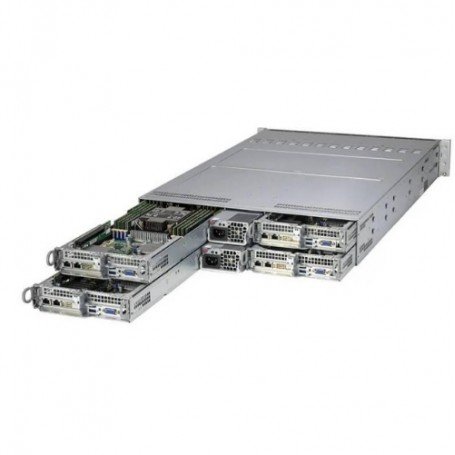

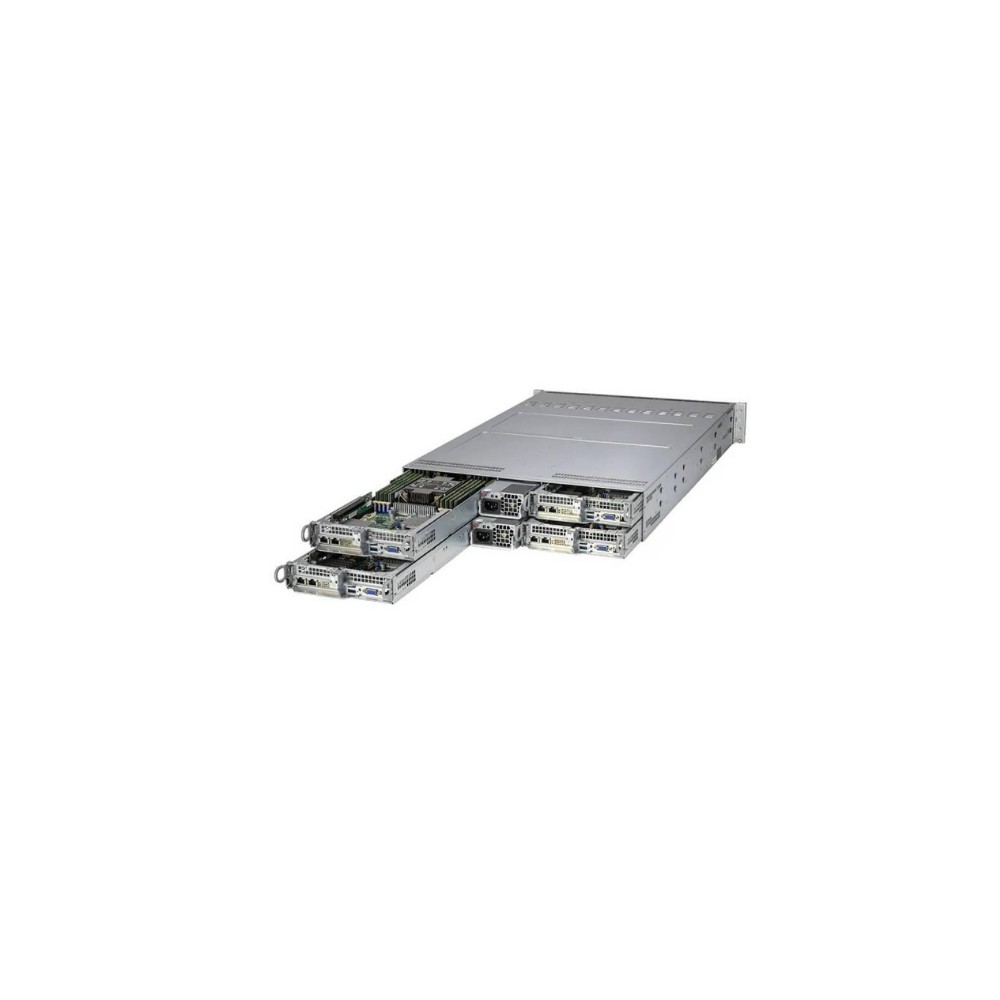

SUPERMICRO COMPUTER SYS-220TP-HTTR Server Barebones View larger

SUPERMICRO COMPUTER SYS-220TP-HTTR Server Barebones

SYS-220TP-HTTR

New

X12DPT-PT6, CSV-217HQ+-R2K20BP3, BPN-ADP-6SATA3P
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form FactorRack-Mountable
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported QtyNot Included
Mainboard / Chipset TypeIntel C621A
RAM / TechnologyDDR4 RDIMM
RAM / Total Slots Qty16
RAM / Max Supported Size4 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSerial ATA
Hard Drive / Bays Qty6
Power / Device TypePower Supply - Redundant
Power / Provided (W)2200 Watt
Power / Voltage Required100 - 240V ac, 50-60Hz
Interfaces & Connections1 RJ45 Dedicated IPMI LAN port 2 USB 3.0 port(s) (2 rear) 1 VGA port(s) 2 SuperDOM (Disk on Module) port
Expansion Slots Total (Free)2 PCIe 4.0 x16 LP slot(s)
ModelSYS-220TP-HTTR
Width17.25 Inch
Depth28.75 Inch
Height3.47 Inch
EPEAT LevelNot Included
Energy Star CompliantNot Included
Climate Savers CompliantNot Included

Special Feature
COOTAIWAN
TAA complianceYes

UNSPSC Code
UNSPSC Code43211502
