SUPERMICRO COMPUTER SYS-2029TP-HC1R Server Barebones View larger

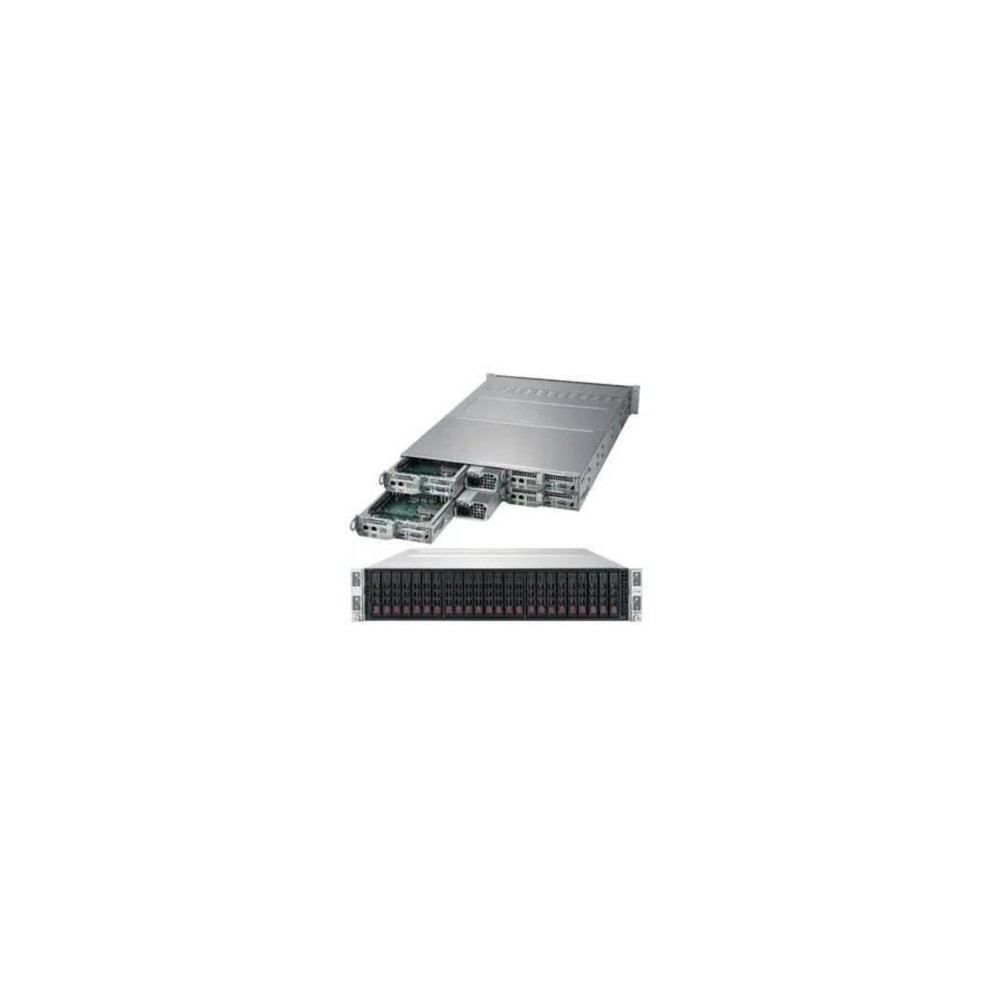

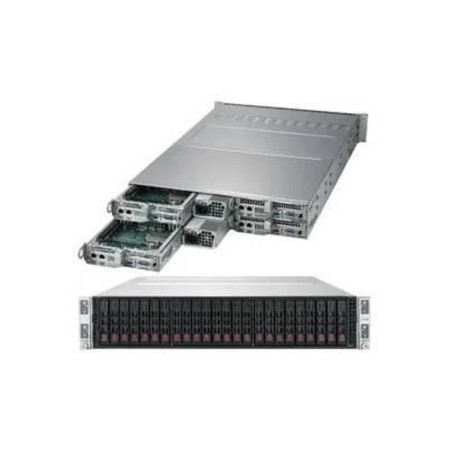

SUPERMICRO COMPUTER SYS-2029TP-HC1R Server Barebones

SYS-2029TP-HC1R

New

Super Server-Intel, X11DPT-PS, CSV-217HQ+-R2K20BP3, BPN-ADP-S3108L-H6IRP, SIOM, Black
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C621
RAM / TechnologyDDR4
RAM / Total Slots Qty16
Hard Drive / Size2.5"
Hard Drive / Interface TypeM.2; NVMe; SAS/SATA
Hard Drive / Bays Qty24
Storage Controller TypeNVMe
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60
Power / Device TypePower Supply - Redundant
Power / Provided (W)2200 Watt
Power / Voltage Required220-240Vac
Interfaces & ConnectionsSAS : 6 SAS3 (12Gbps) ports, LAN : 1 RJ45 Dedicated IPMI LAN port. USB : 2 USB 3.0 ports (rear). VGA : 1 VGA port. Serial Port / Header : 1 Fast UART 16550 port / 1 Header (internal)
Expansion Bays Total (Free)6 Hot-swap 2.5" SAS/SATA HDD trays
Expansion Slots Total (Free)2 PCI-E 3.0 x16 Low-profile slots, 1 SIOM card support
ModelCSE-217HQ+-R2K20BP3
Width17.25 Inch
Depth28.5 Inch
Height3.47 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
