| Primary Information |
|---|

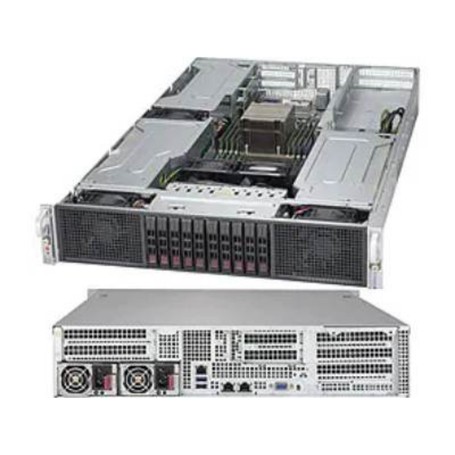

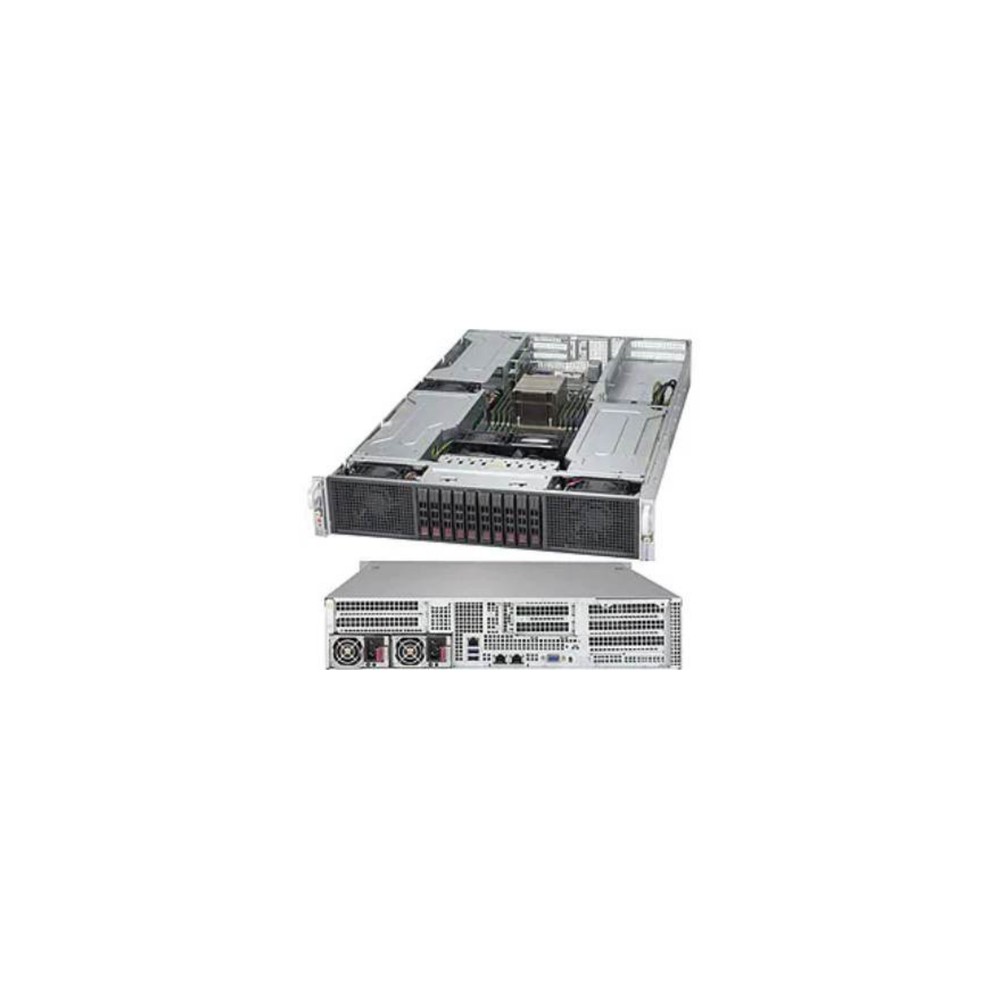

| System Type | Server Barebone |
| Cabinet Form Factor | 2U |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Max Supported Qty | 2 |
| Mainboard / Chipset Type | Intel C612 |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 16 |
| RAM / Max Supported Size | 2 TB |
| Hard Drive / Size | 2.5" |
| Hard Drive / Interface Type | SATA 6 Gb/s |
| Hard Drive / Bays Qty | 10 |
| Storage Controller Type | PCI Express; SATA 6Gb/s |
| RAID Level | RAID 0, 1, 5, 10 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply - Redundant |
| Interfaces & Connections | 10 SATA3 (6Gbps) ports, 2 RJ45 Gigabit Ethernet LAN ports,1 RJ45 Dedicated IPMI LAN port, 4 USB 3.0 ports (2 rear, 2 via header) 2 USB 2.0 ports (2 via headers), 1 VGA Connector, 1 Serial header. |
| Expansion Bays Total (Free) | 10 Hot-swap 2.5" drive bays |
| Expansion Slots Total (Free) | 4 PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option) 1 PCI-E 3.0 x8 (in x16) low-profile slot |
| Model | CSE-218GH-R2K03B |
| Width | 17.2 Inch |
| Depth | 31 Inch |
| Height | 3.5 Inch |
| Enclosure Color | Black |
| Features | 1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16 DIMM slots 3. 6 PCI-E 3.0 x16 slots (GPU/MIC, opt.), 1 PCI-E 3.0 x8 (in x16) low-profile slot 4. Intel i350 Dual-Port GbE LAN 5. 10 Hot-swap 2.5" SATA Drive Bays 6. 2000W Redundant Power Supplies Platinum Level (94%+) 7. 5 heavy duty cooling fans 8. Smart server management tools |
| RoHS | Y |
