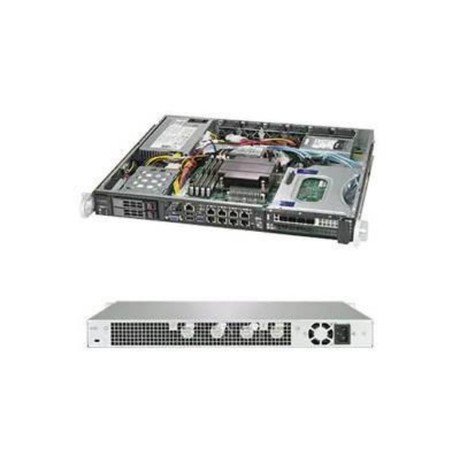

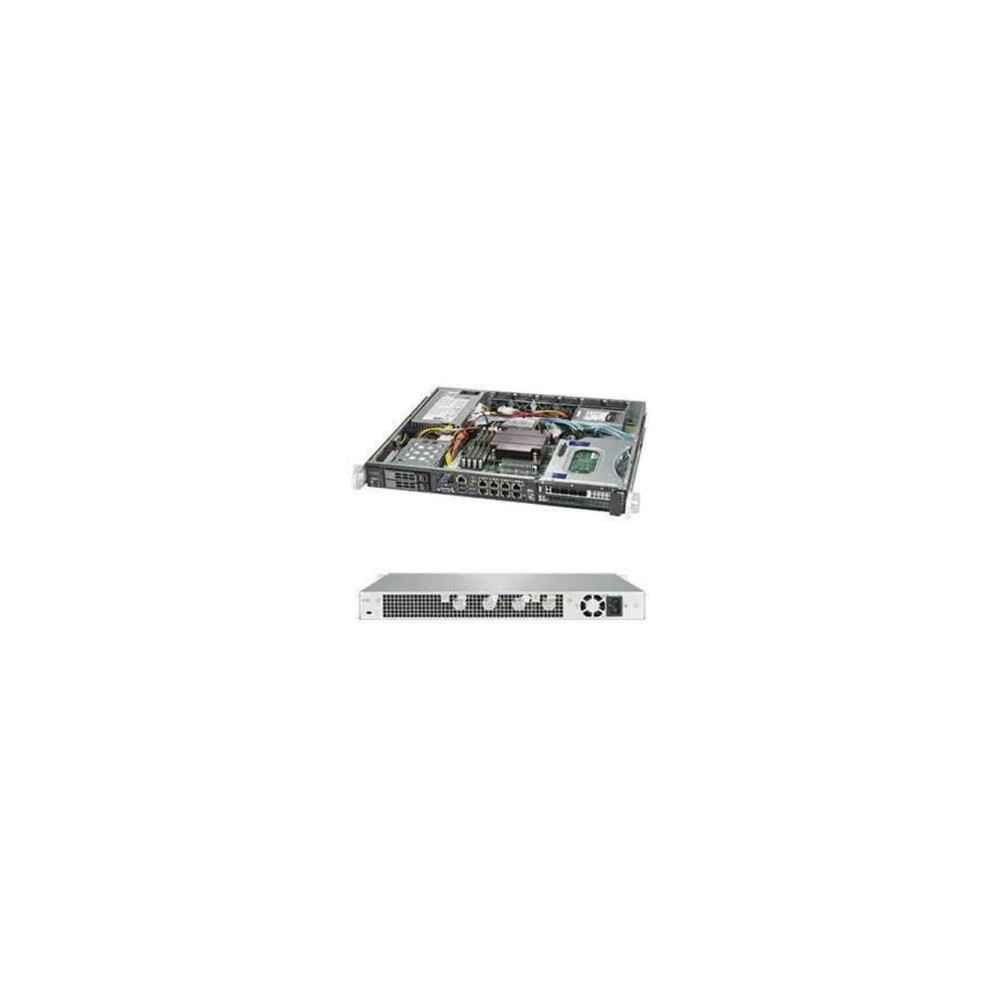

SUPERMICRO COMPUTER SYS-1019C-FHTN8 Server Barebones View larger

SUPERMICRO COMPUTER SYS-1019C-FHTN8 Server Barebones

SYS-1019C-FHTN8

New

CSE-513BTQC-350B-Server Barebone-1U-Xeon-8 Gigabit Ethernet-Power Supply-Redundant-2 Hot-swap 2.5 SATA3 drive bays,2 Internal 2.5 SATA3 drive bays(SSD only)
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty1
Mainboard / Chipset TypeIntel C246
RAM / TechnologyDDR4
RAM / Total Slots Qty4
Hard Drive / Size2.5"
Hard Drive / Interface TypeSATA-3
Hard Drive / Bays Qty2
RAID LevelRAID 0, 1, 5, 10
Data Link Protocol8 Gigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)350 Watt
Power / Voltage Required100 - 240V
Interfaces & ConnectionsSATA : 5 SATA3 (6Gbps) ports LAN : 8 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port, USB : 2 USB 3.1 ports (front), 2 USB 2.0 ports (front) Video : 1 VGA Port
Expansion Bays Total (Free)2 Hot-swap 2.5" SATA3 drive bays, 2 Internal 2.5" SATA3 drive bays (SSD only)
Expansion Slots Total (Free)1 PCI-E 3.0 x16 (FHFL) slot, M.2 : M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, M.2 Form Factor: 2280/22110, M.2 Key: M-Key
ModelCSE-513BTQC-350B
Width17.2 Inch
Depth15 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
