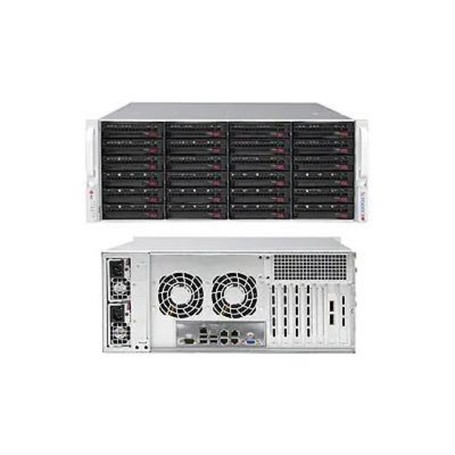

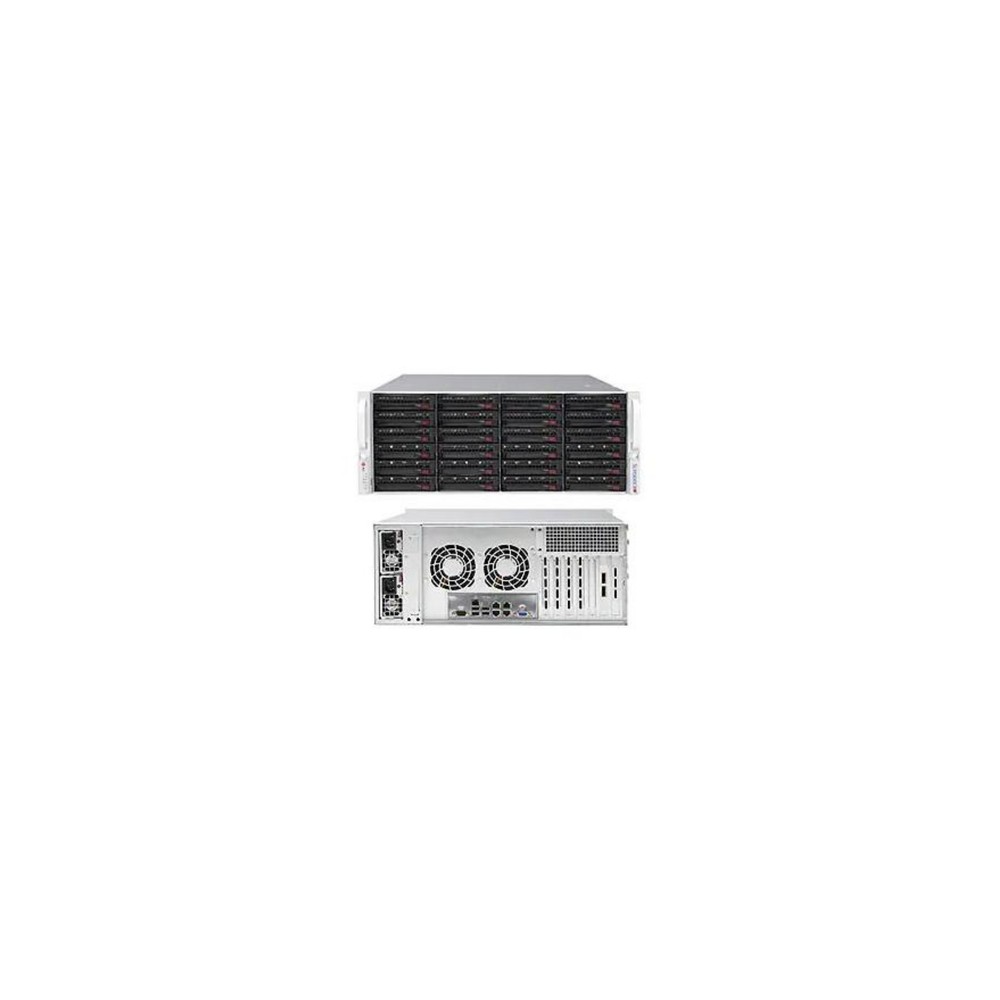

SUPERMICRO COMPUTER SSG-6048R-E1CR24L Server Barebones View larger

SUPERMICRO COMPUTER SSG-6048R-E1CR24L Server Barebones

SSG-6048R-E1CR24L

New

CSE-846BE1C-R920B-Server Barebone-4U-Xeon-Gigabit Ethernet-Power Supply-Redundant-24x 3.5 Hot-swap SAS3/SATA3 drive bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty24
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)920 Watt
Power / Voltage Required100-240 V, 50-60 Hz
Interfaces & Connections2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port 2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) 1 Type A 1 VGA port 1 Fast UART 16550 port / 1 Header
Expansion Bays Total (Free)24x 3.5" Hot-swap SAS3/SATA3 drive bays
Expansion Slots Total (Free)1 PCI-E 3.0 x16 slot 6 PCI-E 3.0 x8 slots Slot 1 & 2 occupied by controller and JBOD Expansion Port
ModelCSE-846BE1C-R920B
Width17.2 Inch
Depth26.5 Inch
Height7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
