SUPERMICRO COMPUTER SSG-2027R-E1CR24N Server Barebones View larger

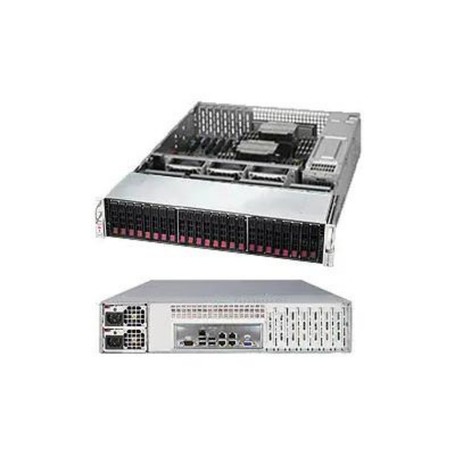

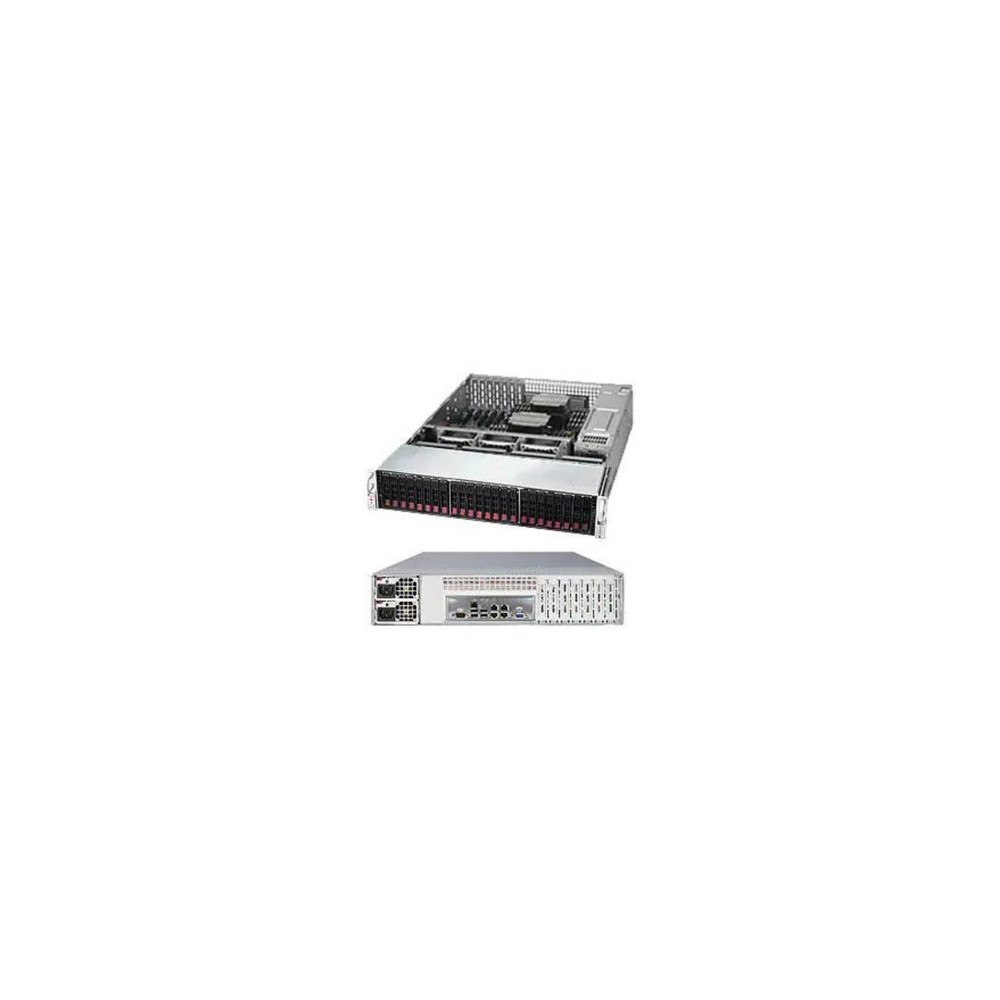

SUPERMICRO COMPUTER SSG-2027R-E1CR24N Server Barebones

SSG-2027R-E1CR24N

New

CSE-216BE1C-R920LPB-Server Barebone-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-24x 2.5 Hot-swap SAS3/SATA3 HDD bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C602
RAM / TechnologyDDR3
RAM / Total Slots Qty24
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty24
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)920 Watt
Power / Voltage Required100-240 V, 50-60 Hz
Interfaces & Connections2x SATA 3.0 ports (6Gbps) 4x SATA 2.0 ports (3Gbps) 8x SAS3 ports (12Gbps) 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port 9x USB 2.0 ports total (4 rear + 4 via header + 1 Type A) 1x VGA port 1x Fast UART 16550 port / 1 Header
Expansion Bays Total (Free)24x 2.5" Hot-swap SAS3/SATA3 HDD bays
Expansion Slots Total (Free)4x PCI-E 3.0 x16 slots 1x PCI-E 3.0 x8 slot 1x PCI-E 3.0 x8 (in x4) slot Slot 1 & 2 Occupied by Hardware RAID Controller and JBOD Expansion Port
ModelCSE-216BE1C-R920LPB
Width17.2 Inch
Depth24.8 Inch
Height3.5 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
