| Primary Information |
|---|
| System Type | Server Barebone |
| Cabinet Form Factor | 2U |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Max Supported Qty | 2 |
| Mainboard / Chipset Type | Intel C612 |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 16 |
| RAM / Max Supported Size | 2 TB |
| Hard Drive / Size | 2.5" |
| Hard Drive / Interface Type | SATA-3 |
| Hard Drive / Bays Qty | 16 |
| Storage Controller Type | PCI Express; SATA 6Gb/s |
| RAID Level | RAID 0, 1, 5, 10 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply - Redundant |
| Interfaces & Connections | 8 SAS3 (12Gbps) ports, 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port, 2 USB 3.0 ports (2 rear) 2 USB 2.0 ports (2 rear, 2 front), 1 VGA Connector, 1 COM Ports (1 rear, 1 front) 1 USB Type A |
| Expansion Bays Total (Free) | 16 Hot-swap 2.5" drive bays 8 SATA3 ports by default |
| Expansion Slots Total (Free) | 10 PCI-E 3.0 x8 slots 1 PCI-E 2.0 x4 (in x8) slot |

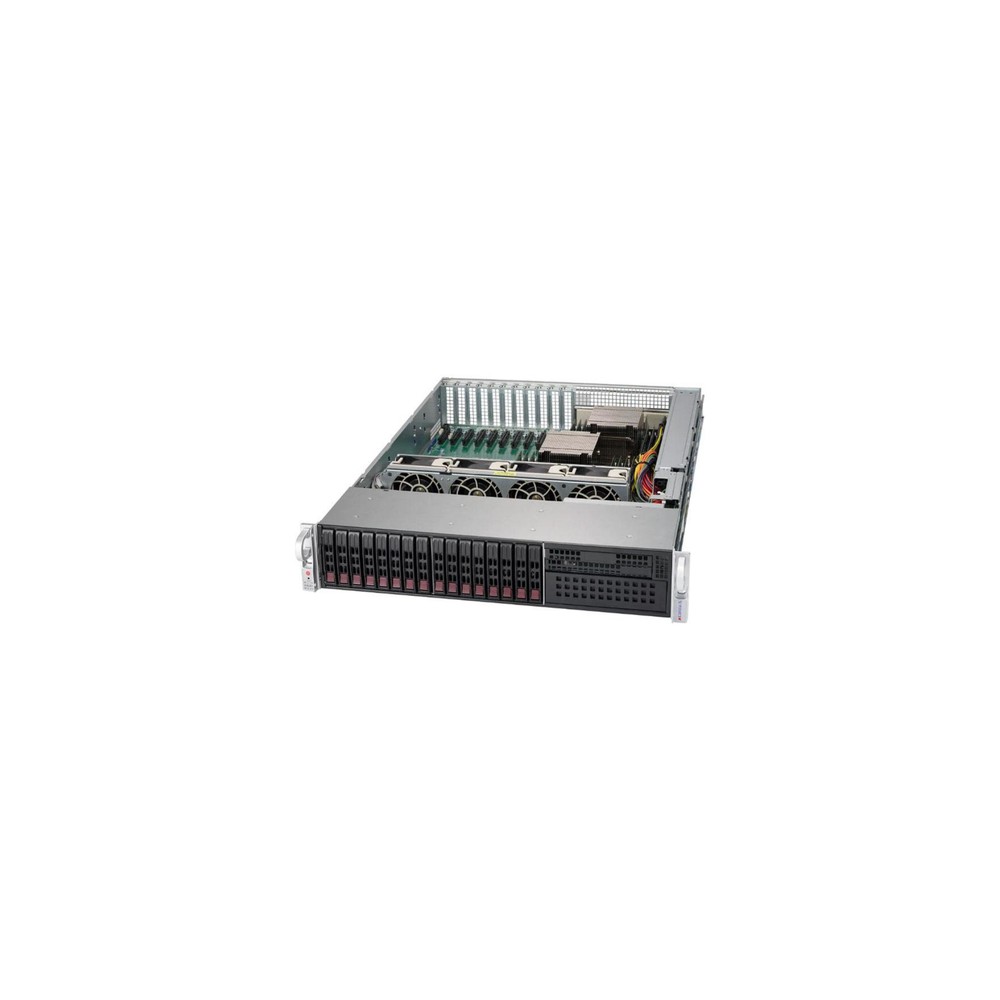

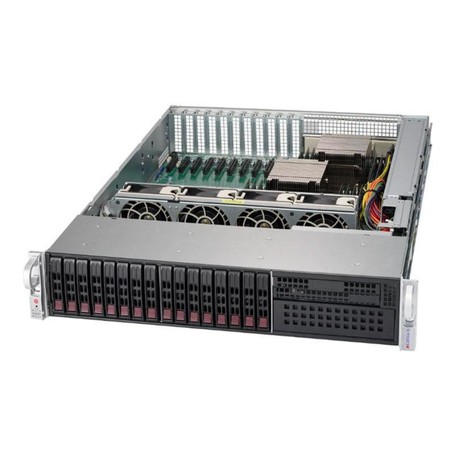

| Model | CSE-213XAC-R1K05LP |
| Width | 17.2 Inch |
| Depth | 27.76 Inch |
| Height | 3.5 Inch |
| Enclosure Color | Black |
| Features | 1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16 DIMM slots 3. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 slots 4. 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap Drive Bays 5. Integrated IPMI 2.0 with KVM and Dedicated LAN 6. Intel i350 Dual port GbE LAN 7. I/O ports: 2 SuperDOM, 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0 8. 3 high-performance 8cm PWM fans 9. 920W Redundant Power Supplies Platinum Level (94%) |
| RoHS | Y |
