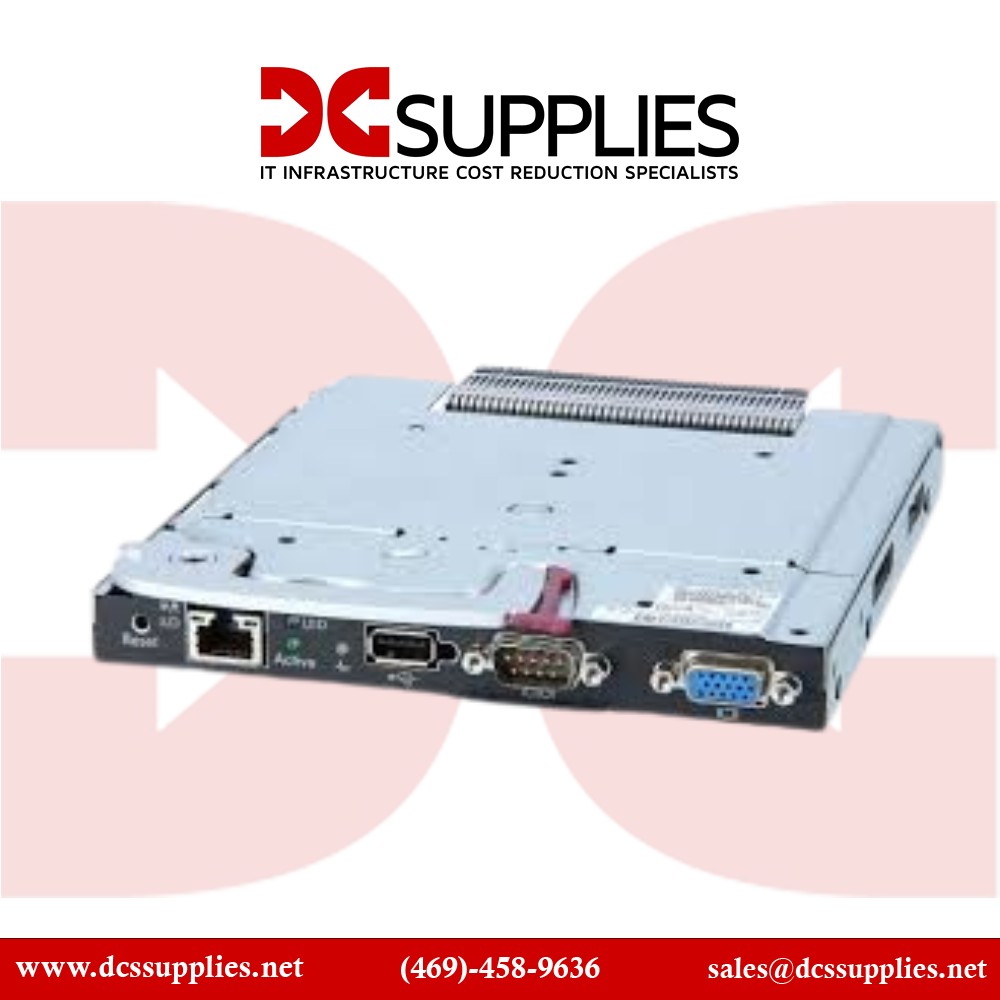

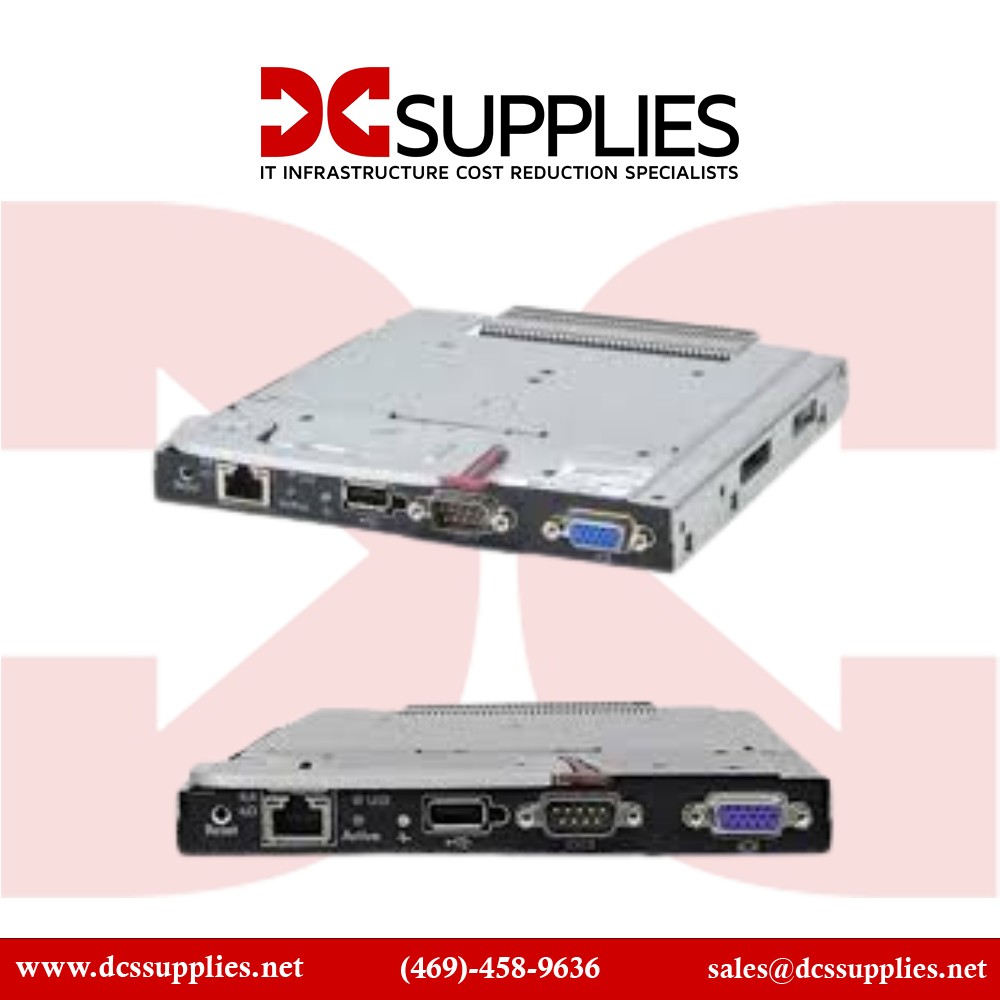

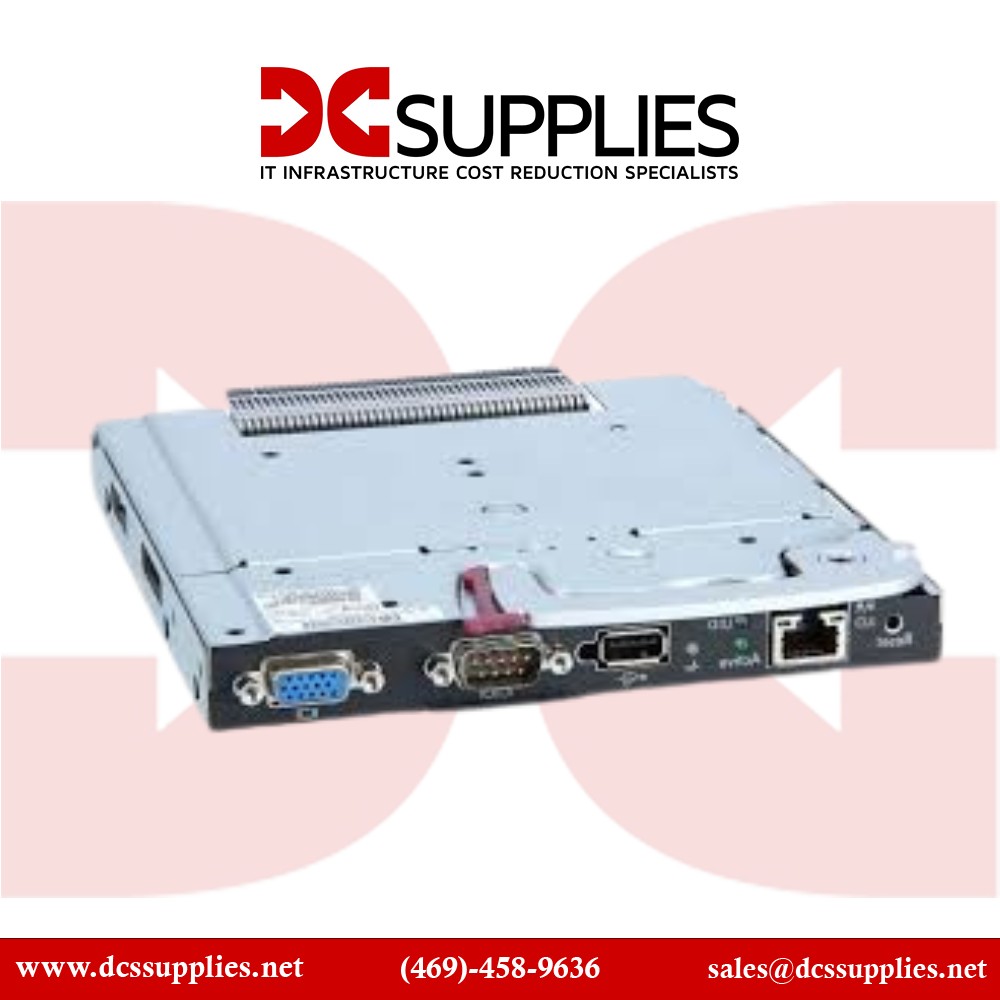

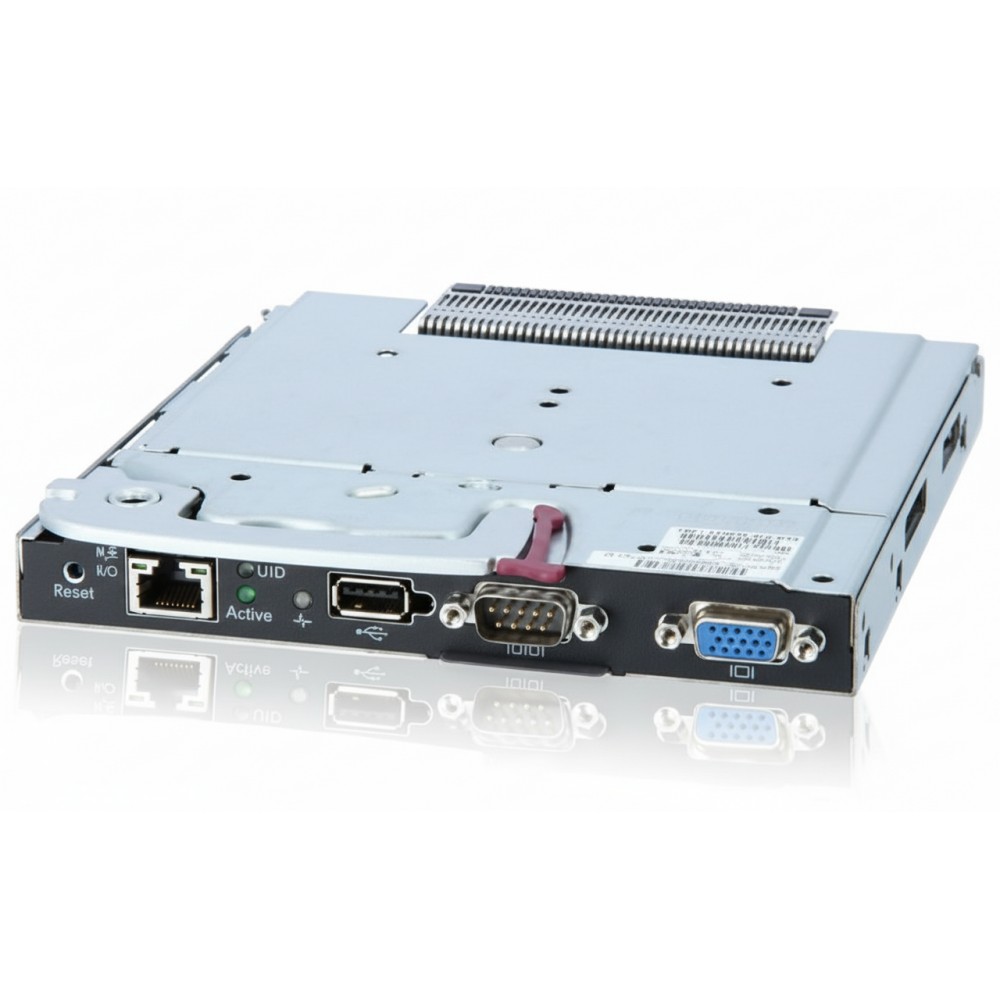

HPE456204-B21

BLc7000 DDR2 Enclosure Management Option (BladeSystem Onboard Administrator + KVM Module)

The HPE456204-B21 module×commonly referred to as the BLc7000 DDR2 Enclosure Management Option×is a factory-sourced Onboard Administrator and KVM management card designed to simplify remote management of HPEBladeSystem c7000 DDR2 chassis. Serving as the central firmware/controller for the enclosure, it enables remote console access, power control, enclosure monitoring, firmware updates, and KVM over IP functionality. Ideal for enterprises leveraging blade server infrastructure, this module ensures operational efficiency, central visibility, and simplified management for distributed or consolidated data center setups.

Features

This module installs directly into a designated management slot of the BladeSystem c7000 chassis, providing essential enclosure-level control. It enables administrators to monitor blade health, manage power and cooling, configure virtual media sessions, and perform firmware upgrades across all server blades. With onboard KVM and IP-based console access, it eliminates the need for separate console servers, offering direct access via network interfaces. The integrated memory×DDR2 class×enhances firmware and data logging support, ensuring reliable remote diagnostics and management.

Advanced Options

Designed for enterprise-grade BladeSystem deployments, this module delivers stable and secure enclosure management. With DDR2-based firmware memory and built-in redundancy support, it provides continuous oversight over blade power, thermal readings,

Product Key Features

• Integrated Onboard Administrator for chassis-wide management


• KVM over IP capabilities for remote blade console access


• DDR2-based embedded memory subsystem


• Centralized firmware updates and hardware configuration


• Power and thermal monitoring with alerts and log access


• Simplifies BladeSystem c7000 infrastructure administration

---

Reliability & Performance

and port-level connectivity. Administrators benefit from secure network access (HTTPS/SSH), activity logging, and central logging of hardware events. This module supports hot-swap KVM sessions, enabling rapid troubleshooting and remote maintenance. Remote diagnostics and console redirection are maintained even during host OS failures, ensuring minimal downtime and effective incident resolution.

Key Features :

• Integrated Onboard Administrator and KVM over IP module

• Fits HPEBladeSystem c7000 DDR2 chassis management slot

• DDR2-based embedded memory support

• Remote firmware updates and configuration management

• Real-time power, thermal, and component monitoring

• SSH/HTTPS remote access with log and alert mechanisms

• Central KVM console access and virtual media support

• Simplifies enclosure-level administration

• Compatible with blade server models in c7000 enclosure

• Reduces infrastructure overhead and cabling complexity

Specification	Details
Model Number	456204-B21
Product Type	Enclosure Management Modulewith KVM option
Compatibility	HPEBladeSystem c7000 DDR2 Enclosures
Form Factor	Enclosure-slot blade management module
Memory Type	DDR2 embedded firmware memory
KVM Support	Integrated remote KVM over IP
Management Interfaces	SSH, HTTPS, serial console; virtual media support
Power Monitoring	Real-time enclosure-level power and thermal readings
Configuration & Firmware	Remote updates via network access
Operating Temp / Humidity	~10 °C to 35 °C; 5-95% non-condensing humidity
Dimensions	Fits standard c7000 structural slot
Weight	~0.5 kg (~1.1 lb)
Warranty	~1 year for refurbished units; OEM options vary
Compliance	RoHS, WEEE
