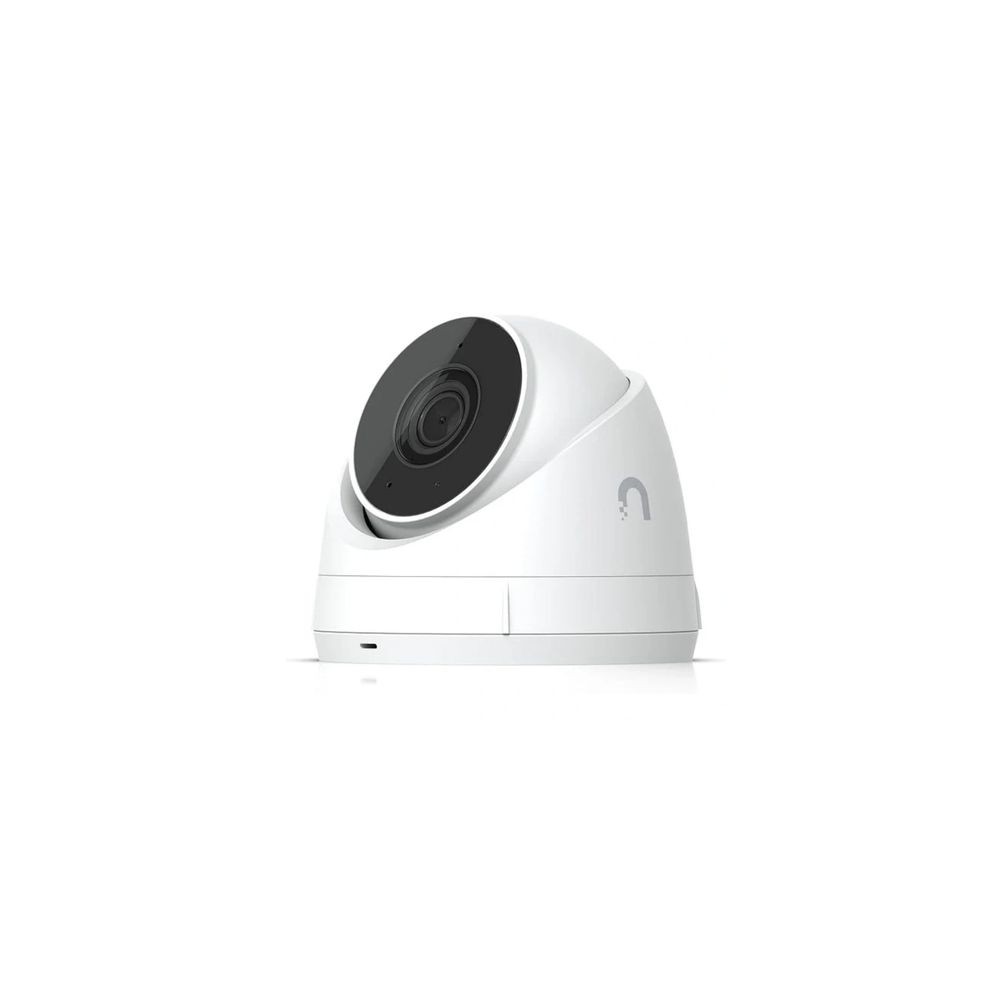

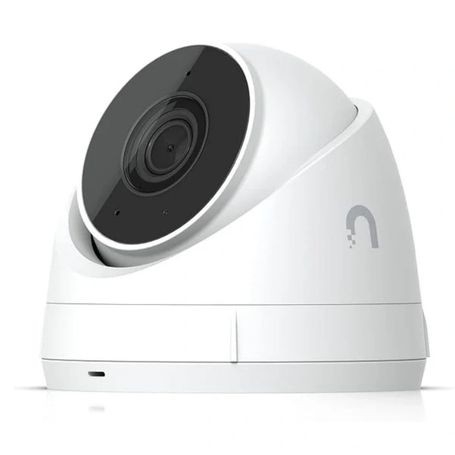

Ubiquiti UVC-G5-Turret-Ultra UniFi G5 Turret Ultra 2K 4MP PoE Security Camera with IR Night Vision
Overview
The Ubiquiti UVC-G5-Turret-Ultra is a compact UniFi security camera designed for indoor and outdoor surveillance deployments. It captures 4MP video at 2688 x 1512 resolution and up to 30 FPS, with a 102.4° horizontal viewing angle for wide-area coverage.
The camera uses PoE for network connectivity and power through its 10/100 MbE RJ45 interface. Integrated infrared illumination provides night vision up to 30 m (98 ft), while the IP66 enclosure supports outdoor installation and the IK04 rating provides tamper resistance.
Video and Optics
The camera uses a 1/2.4-inch CMOS sensor with a fixed focal-length lens. Video is captured at 4MP resolution with image controls including brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, motion-based noise reduction, masking, and text overlay.
Connectivity and Power
The UVC-G5-Turret-Ultra provides a 10/100 MbE RJ45 networking interface and operates using PoE. Its supported voltage range is 37–57V DC, with maximum power consumption rated at 4W.
Key Features
- 4MP 2688 x 1512 video resolution at up to 30 FPS
- 30 m (98 ft) infrared night vision
- 102.4° horizontal viewing angle
- IP66 weatherproof and IK04 tamper-resistant enclosure
- Integrated microphone with PoE connectivity
Applications
The turret form factor is suited to surveillance installations requiring compact mounting and wide-area video coverage. Its PoE connection, weatherproof enclosure, and infrared illumination support deployments in locations where network connectivity and power can be provided through Ethernet.
DC Supplies Product Note
The camera requires PoE and supports a 37–57V DC input range, so the deployment network should provide compatible PoE service. The standard camera provides a 10/100 MbE RJ45 interface rather than a Gigabit Ethernet interface.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G5-Turret-Ultra |
| Product Type | 2K 4MP PoE Turret Security Camera |
| Series | UniFi G5 Turret Ultra |
| Resolution | 4MP, 2688 x 1512 (16:9) |
| Maximum Frame Rate | 30 FPS |
| Image Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| IR Night Vision | 30 m (98 ft) |
| Networking Interface | 10/100 MbE RJ45 |
| Power Method | PoE |
| Maximum Power Consumption | 4W |
| Supported Voltage Range | 37–57V DC |
| Audio | Integrated microphone; can be disabled |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| Weight | 330 g (11.6 oz) |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Operating Humidity | 0–90% noncondensing |
| Certifications | FCC, IC, CE |
Frequently Asked Questions
What resolution does the UVC-G5-Turret-Ultra provide?
It provides 4MP video at 2688 x 1512 resolution with a maximum frame rate of 30 FPS.
How far can the camera see at night?
Its built-in infrared illumination provides night vision up to 30 m (98 ft).
How is the camera powered?
The camera uses PoE through its RJ45 network connection and supports a 37–57V DC voltage range.
Is the camera suitable for outdoor installation?
Yes. The camera has an IP66 weatherproof enclosure and an operating temperature range of -30 to 50°C (-22 to 122°F).
Does the camera include audio?
Yes. It has an integrated microphone that can be disabled.
