Overview

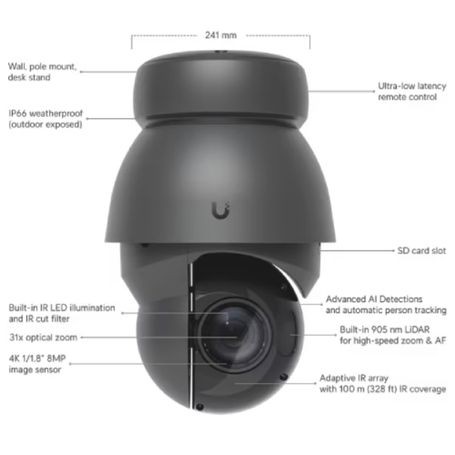

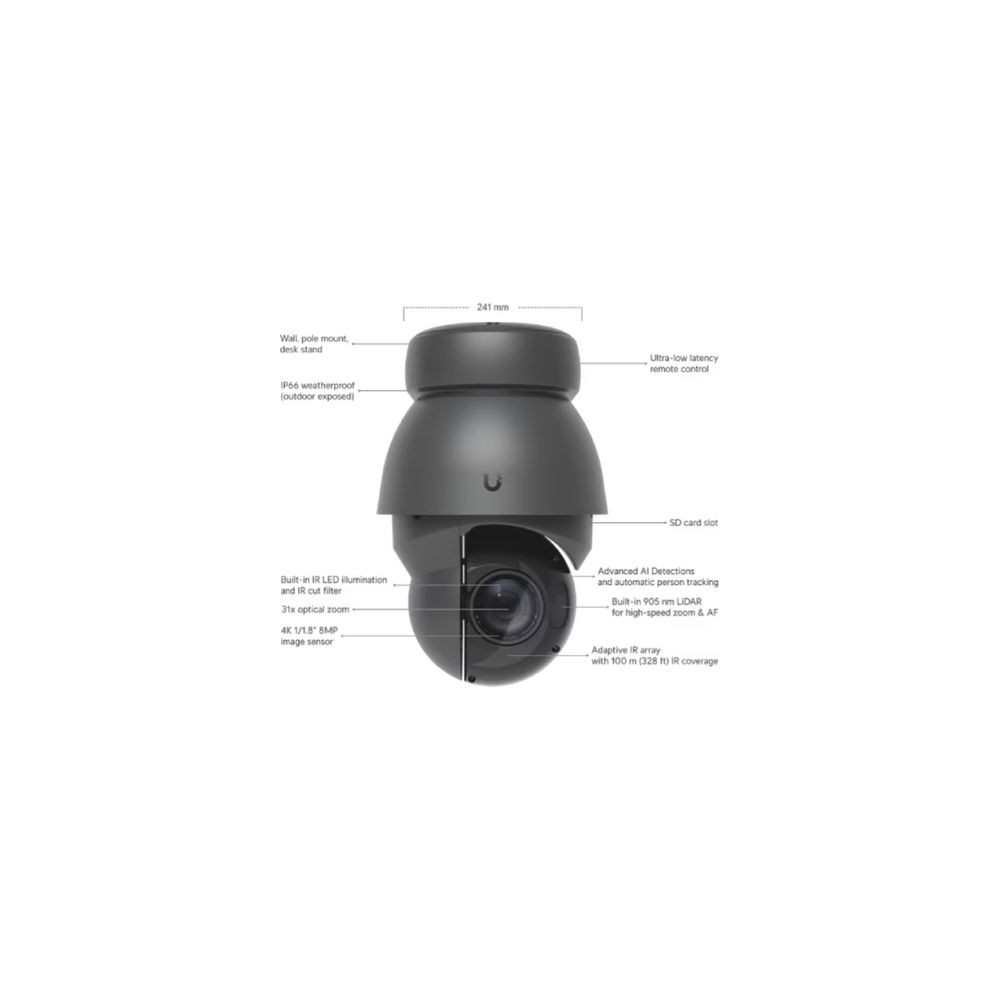

The Ubiquiti UVC-AI-PTZ-PRECISION-B is an industrial-grade UniFi AI PTZ Precision camera designed for long-range surveillance and detailed subject tracking. It combines 4K imaging, 31x optical zoom, 360° continuous pan, 120° tilt, adaptive infrared illumination, and 905 nm LiDAR technology for rapid autofocus.
Imaging and Optical Zoom
The camera uses a 1/1.8-inch 8MP sensor and produces 3840 × 2160 video at up to 30 FPS. Its 6.91–214.64 mm lens provides 31x optical zoom, with a wide field of view of 59° horizontal, 34.1° vertical, and 67.1° diagonal, narrowing to 1.98° horizontal, 1.12° vertical, and 2.27° diagonal at the telephoto end.
PTZ and LiDAR
The motorized mechanism provides 360° continuous pan and 120° tilt for broad-area coverage. Built-in 905 nm LiDAR technology enables rapid autofocus when switching between distant targets, helping maintain focus during active PTZ operation.
AI and Night Vision
The UVC-AI-PTZ-PRECISION-B supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals. Its adaptive IR LED system provides night vision up to 100 m (328 ft), while the integrated IR-cut filter supports day/night operation.
Network and Power
The camera provides one Gigabit Ethernet RJ45 interface and uses PoE++ for power. Maximum power consumption is 51W with a supported input voltage range of 42.5–57V DC. A microSD card slot provides local storage expansion.
Environmental Protection and Mounting
The camera is rated IP66 for protection against dust and water and is designed for outdoor operation from -40 to 50°C. The enclosure uses aluminum alloy and polycarbonate, while the mounting hardware uses powder-coated aluminum. Wall, pole, and desktop mounting options are supported.
Key Features
- 4K 3840 × 2160 video at up to 30 FPS
- 31x optical zoom with 6.91–214.64 mm lens
- 360° continuous pan and 120° tilt
- 905 nm LiDAR technology for rapid autofocus
- 100 m adaptive IR night vision and AI-based detection
Applications
The camera is designed for large-area surveillance where operators need to observe wide scenes and rapidly zoom into distant subjects. Suitable deployments include campuses, industrial sites, commercial properties, transportation areas, parking facilities, and large outdoor perimeters.
DC Supplies Product Note
The UVC-AI-PTZ-PRECISION-B can draw up to 51W through PoE++, so the upstream switch or injector should provide sufficient PoE++ power for the camera's maximum consumption. Its 31x optical zoom and 100 m IR range are particularly relevant when surveillance targets may be positioned at substantial distances.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-AI-PTZ-PRECISION-B |
| Product Type | PTZ Security Camera |
| Product Line | UniFi AI PTZ Precision |
| Color | Black |
| Resolution | 8MP, 3840 × 2160 |
| Maximum Frame Rate | 30 FPS |
| Sensor | 1/1.8-inch 8MP |
| Lens | 6.91–214.64 mm, f/1.36–f/4.6 |
| Optical Zoom | 31x |
| Wide FOV | 59° H / 34.1° V / 67.1° D |
| Tele FOV | 1.98° H / 1.12° V / 2.27° D |
| Pan Range | 360° continuous |
| Tilt Range | 120° |
| LiDAR | 905 nm |
| IR Night Vision | 100 m (328 ft) |
| Smart Detections | People, Vehicles, Animals |
| AI Recognition | Face Recognition, License Plate Recognition |
| Network Interface | 1 × Gigabit Ethernet RJ45 |
| Power Method | PoE++ (802.3bt) |
| Supported Voltage | 42.5–57V DC |
| Maximum Power Consumption | 51W |
| Storage | MicroSD card slot |
| Weather Protection | IP66 |
| Operating Temperature | -40 to 50°C (-40 to 122°F) |
| Operating Humidity | 0–90% noncondensing |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Pole Mount Diameter | 2–4 in (50–100 mm) or 4.5–6 in (115–150 mm) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
FAQs
What resolution does the UVC-AI-PTZ-PRECISION-B support?
It supports 8MP 4K video at 3840 × 2160 resolution and up to 30 FPS.
How much optical zoom does the camera provide?
The camera provides 31x optical zoom using a 6.91–214.64 mm lens.
How far does the infrared night vision reach?
The adaptive IR LED system provides night vision up to 100 m (328 ft).
What is the PTZ movement range?
The camera provides 360° continuous pan and 120° tilt.
What power supply does the camera require?
The camera uses PoE++ (802.3bt), supports 42.5–57V DC, and has a maximum power consumption of 51W.
