Overview

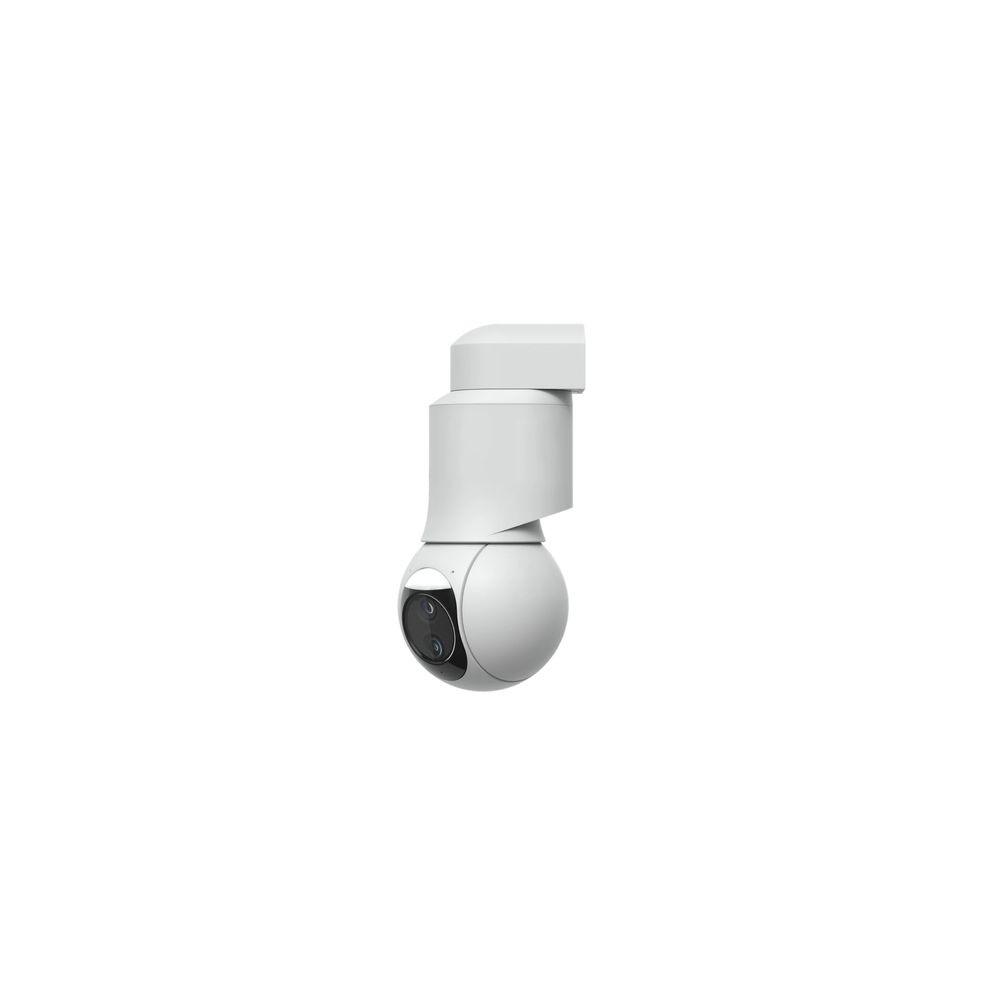

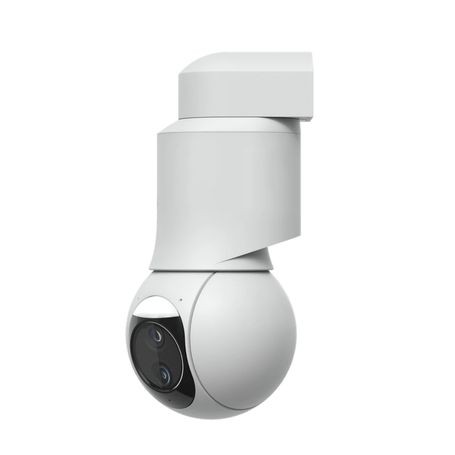

The Ubiquiti UVC-G6-PTZ-W is a white UniFi G6 PTZ camera with dual 8MP imaging sensors, 4K video, motorized pan and tilt, and 10x hybrid zoom. It combines a wide lens and telephoto lens for flexible surveillance coverage with low-latency PTZ control and on-device AI processing.
Imaging and PTZ
The camera provides 3840 × 2160 video at up to 30 FPS. The wide lens uses a 1/1.8-inch 8MP sensor with a 4.46 mm f/1.65 lens, while the telephoto lens uses a 1/1.8-inch 8MP sensor with a 16.3 mm f/2.4 lens. The PTZ mechanism supports 350° pan and 100° tilt, while the hybrid zoom combines the two optical perspectives for up to 10x magnification.
AI and Night Vision
Built-in AI processing supports face recognition, license plate recognition, and smart detection of people, vehicles, and animals. Integrated infrared illumination provides night vision up to 30 m (98 ft), with an IR cut filter for day/night imaging.
Network and Power
The UVC-G6-PTZ-W uses a 10/100 MbE RJ45 network interface and receives power through PoE+. The supported voltage range is 42.5–57V DC and maximum power consumption is 24.5W. A microSD card slot provides local recording storage.
Environmental Protection and Mounting
The camera has an IP66 weatherproof enclosure and IK04 impact resistance. The enclosure combines aluminum alloy and polycarbonate. Included mounting options support wall, surface, ceiling, and pole installation, while optional accessories support corner, in-ceiling, pendant, and conduit installations.
Key Features
- 4K video with dual 1/1.8-inch 8MP sensors
- 10x hybrid zoom using wide and telephoto lenses
- 350° pan and 100° tilt with low-latency PTZ control
- 30 m IR night vision with face and license plate recognition
- PoE+ connectivity with IP66 weather protection
Applications
The camera is suited to UniFi Protect surveillance deployments requiring active PTZ control, wide-area monitoring, optical zoom, and AI-based detection. Typical applications include building perimeters, commercial properties, parking areas, entrances, campuses, and other outdoor surveillance locations.
DC Supplies Product Note
The dual-lens design provides both a wide surveillance view and a telephoto perspective in the same PTZ camera. For network planning, allow up to 24.5W of PoE+ power consumption and provide suitable Ethernet infrastructure for the 10/100 MbE interface.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-PTZ-W |
| Product Type | PTZ Security Camera |
| Product Line | UniFi G6 PTZ |
| Color | White |
| Resolution | 4K, 3840 × 2160 |
| Frame Rate | Up to 30 FPS |
| Wide Sensor | 1/1.8-inch 8MP |
| Telephoto Sensor | 1/1.8-inch 8MP |
| Wide Lens | 4.46 mm, f/1.65 |
| Telephoto Lens | 16.3 mm, f/2.4 |
| Zoom | 10x Hybrid |
| Wide FOV | 109.9° H / 56.7° V / 134.1° D |
| Tele FOV | 26.6° H / 15.1° V / 30.4° D |
| Pan Range | 350° |
| Tilt Range | 100° |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections | People, Vehicles, Animals |
| AI Recognition | Face Recognition, License Plate Recognition |
| Audio | Two-way audio |
| Network Interface | 10/100 MbE RJ45 |
| Power Method | PoE+ |
| Supported Voltage | 42.5–57V DC |
| Maximum Power Consumption | 24.5W |
| Storage | MicroSD card slot |
| Weather Protection | IP66 |
| Impact Resistance | IK04 |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Operating Humidity | 20–90% noncondensing |
| Enclosure Material | Aluminum alloy, polycarbonate |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
FAQs
What resolution does the UVC-G6-PTZ-W support?
It supports 4K video at 3840 × 2160 resolution with a maximum frame rate of 30 FPS.
What is the zoom capability?
The camera provides 10x hybrid zoom using its wide and telephoto imaging system.
How far can the camera pan and tilt?
The PTZ mechanism supports 350° of pan and 100° of tilt.
Does the camera support PoE+?
Yes. The UVC-G6-PTZ-W uses PoE+ and supports an input voltage range of 42.5–57V DC.
Is the camera suitable for outdoor installation?
Yes. The camera has IP66 weather protection, IK04 impact resistance, and an operating temperature range of -30 to 50°C.
