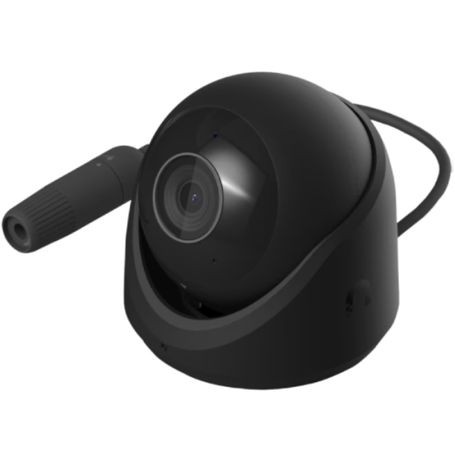

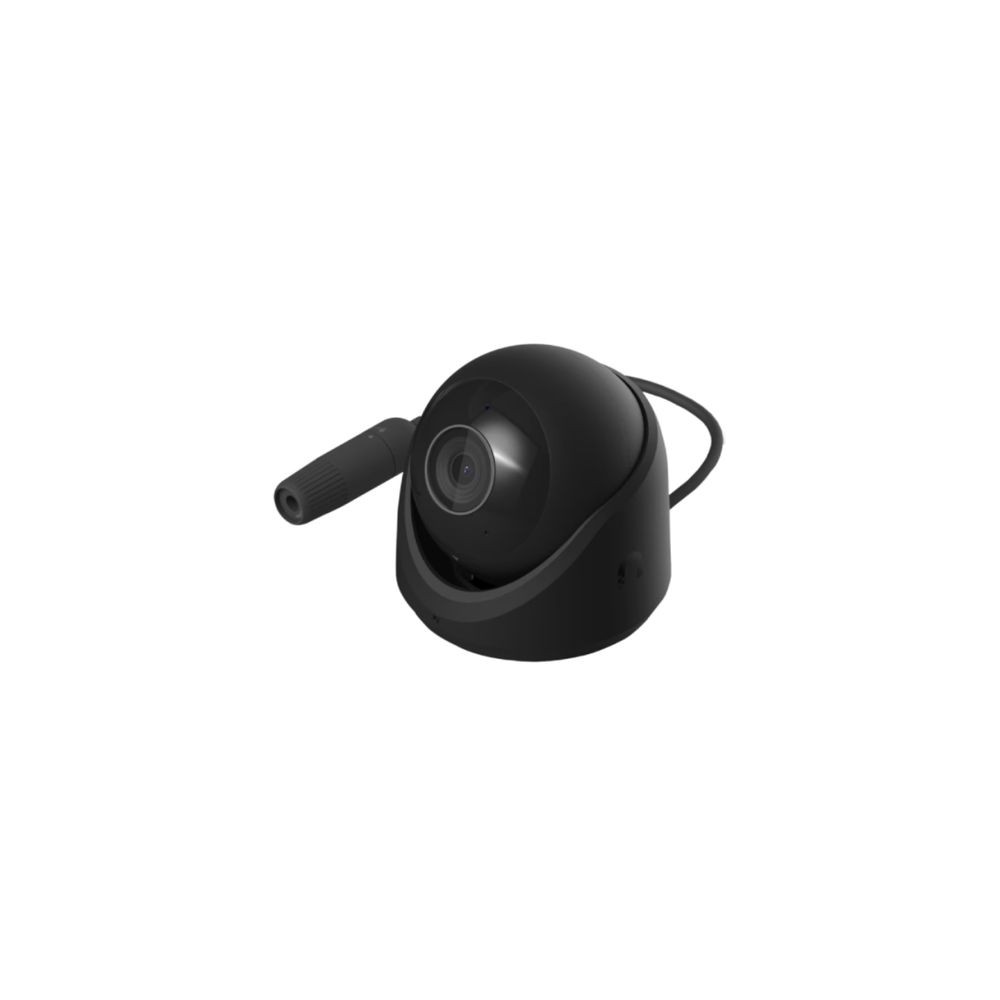

The Ubiquiti UVC-G6-TURRET-B is a black UniFi G6 Turret security camera designed for indoor and outdoor surveillance. It combines 4K imaging, an 8MP sensor, integrated infrared illumination, AI-powered detections, and PoE connectivity in a compact turret enclosure.
4K Imaging
The camera uses a 1/1.8-inch 8MP sensor with a fixed focal-length lens and records at 3864 × 2160 resolution at up to 30 FPS. Its field of view is 109.9° horizontal, 56.7° vertical, and 134.1° diagonal.
AI Detection and Night Vision
The G6 Turret supports smart detections for people, vehicles, and animals, as well as face recognition and license plate recognition. Integrated IR LED illumination and an IR cut filter provide night vision up to 30 m (98 ft).
Network and Power
The camera provides a 10/100 MbE RJ45 interface and uses PoE for power and network connectivity. Maximum power consumption is 12.5W, with a supported voltage range of 37–57V DC.
Environmental Protection
The camera is rated IP66 for weather protection and IK04 for tamper resistance. Its enclosure uses aluminum alloy and polycarbonate and is specified for operation from -30 to 50 °C.
Mounting
Ceiling and wall mounting are supported with the included mount. Optional accessories include an arm mount, pendant mount, and junction box for alternative installation configurations.
Key Features
- 4K 8MP video at up to 30 FPS
- 30 m (98 ft) integrated IR night vision
- Face recognition, license plate recognition, and smart detections
- 10/100 MbE RJ45 with PoE power
- IP66 weatherproofing and IK04 tamper resistance
Applications
- Commercial and enterprise surveillance
- Indoor and outdoor building monitoring
- Entrances, corridors, and common areas
- Retail and facility security
- UniFi Protect surveillance deployments
DC Supplies Product Note
The G6 Turret uses standard PoE rather than PoE+, with a maximum power consumption of 12.5W. A compatible PoE source should therefore be available at the camera installation point.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-G6-TURRET-B |
|---|
| Product Type | 4K PoE Turret Security Camera |
|---|
| Product Line | UniFi G6 Turret |
|---|
| Color | Black |
|---|
| Resolution | 8MP, 3864 × 2160 |
|---|
| Maximum Frame Rate | 30 FPS |
|---|
| Image Sensor | 1/1.8-inch 8MP |
|---|
| Lens | Fixed focal length |
|---|
| Field of View | 109.9° H × 56.7° V × 134.1° D |
|---|
| IR Night Vision | 30 m (98 ft) |
|---|
| Smart Detections | People, vehicles, animals |
|---|
| Face Recognition | Yes |
|---|
| License Plate Recognition | Yes |
|---|
| Networking Interface | 1 × 10/100 MbE RJ45 |
|---|
| Power Method | PoE |
|---|
| Maximum Power Consumption | 12.5W |
|---|
| Supported Voltage | 37–57V DC |
|---|
| Audio | Microphone |
|---|
| Weatherproofing | IP66 |
|---|
| Tamper Resistance | IK04 |
|---|
| Mounting | Ceiling, wall |
|---|
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|
| Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|
| Operating Humidity | 0–90% noncondensing |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
What resolution does the UVC-G6-TURRET-B support?
The camera uses an 8MP sensor and supports 3864 × 2160 resolution at up to 30 FPS.
How far can the camera see at night?
Integrated IR illumination provides night vision up to 30 m (98 ft).
Does the G6 Turret support AI detection?
Yes. It supports people, vehicle, and animal detections, along with face recognition and license plate recognition.
How is the camera powered?
The camera uses PoE and supports a 37–57V DC input range.
Can the camera be installed outdoors?
Yes. The G6 Turret has an IP66 weatherproof rating and operates from -30 to 50 °C.
