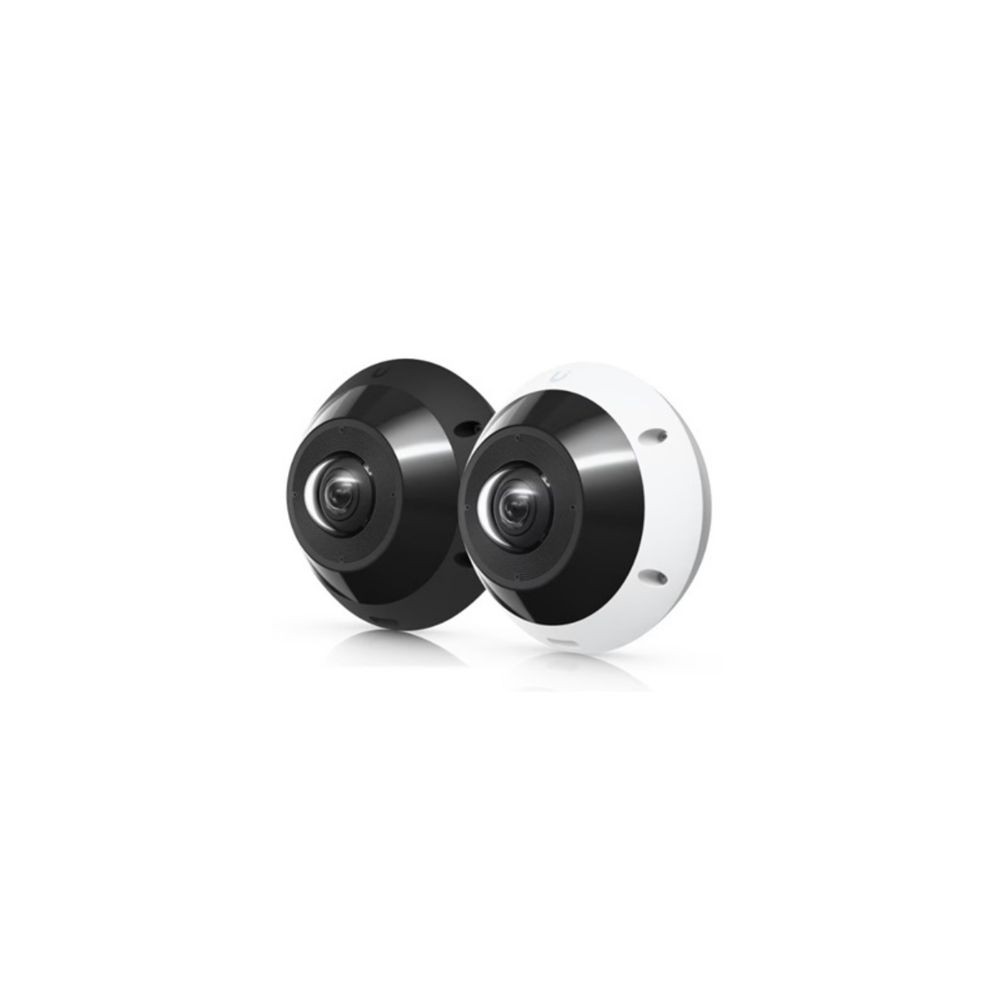

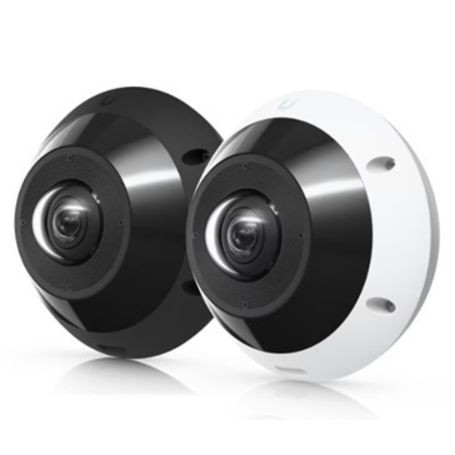

The Ubiquiti UVC-G6-PRO-360-W is the white UniFi G6 Pro 360 panoramic security camera, designed to provide broad-area surveillance from a single camera. It combines a 12MP fisheye sensor, 180° field of view, smart infrared illumination, AI-powered detections, two-way audio, and PoE+ connectivity.
Panoramic Imaging
The camera uses a 1/1.6-inch 12MP sensor and fisheye lens to capture 3504 × 3504 video at up to 24 FPS. Its 180° horizontal, vertical, and diagonal field of view provides panoramic coverage across a large area.
Night Vision and Smart Detection
Four controllable Smart IR zones provide night vision up to 15 m (50 ft). The camera supports smart detections for people, vehicles, and animals through UniFi Protect.
Network and Power
The UVC-G6-PRO-360-W provides a 10/100 MbE RJ45 interface and uses PoE+ for power and network connectivity. Maximum power consumption is 13.5W, with a supported input voltage range of 37–57V DC.
Storage and Audio
The camera supports two-way audio and includes a MicroSD card slot for local storage. It can be managed as part of a UniFi Protect surveillance deployment.
Durability and Mounting
The camera has an IP66 weatherproof rating and IK10 tamper resistance. A surface mount is included, while optional mounting accessories include a junction box, camera dual mount, and arm mount.
Key Features
- 12MP panoramic imaging at 3504 × 3504 resolution
- 180° horizontal, vertical, and diagonal field of view
- 15 m Smart IR night vision with four controllable zones
- People, vehicle, and animal smart detections
- IP66 weatherproofing and IK10 tamper resistance
Applications
- Commercial and enterprise surveillance
- Large-area indoor and outdoor monitoring
- Building entrances and common areas
- Retail and facility security
- Panoramic surveillance requiring broad coverage from a single camera
DC Supplies Product Note
The G6 Pro 360 uses a panoramic fisheye design rather than a conventional directional camera. Installation position and camera height should therefore be selected according to the area that needs coverage.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-G6-PRO-360-W |
|---|
| Product Type | 12MP Panoramic PoE+ Security Camera |
|---|
| Product Line | UniFi G6 Pro 360 |
|---|
| Color | White |
|---|
| Resolution | 12MP, 3504 × 3504 |
|---|
| Maximum Frame Rate | 24 FPS |
|---|
| Image Sensor | 1/1.6-inch 12MP |
|---|
| Lens | Fisheye |
|---|
| Field of View | 180° H × 180° V × 180° D |
|---|
| IR Night Vision | 15 m (50 ft) |
|---|
| IR Configuration | Smart IR, 4 controllable zones |
|---|
| Smart Detections | People, vehicles, animals |
|---|
| Networking Interface | 1 × 10/100 MbE RJ45 |
|---|
| Power Method | PoE+ |
|---|
| Maximum Power Consumption | 13.5W |
|---|
| Supported Voltage | 37–57V DC |
|---|
| Audio | Two-way audio |
|---|
| Local Storage | MicroSD card |
|---|
| Weatherproofing | IP66 |
|---|
| Tamper Resistance | IK10 |
|---|
| Mounting | Surface mount included |
|---|
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|
| Mount Material | Polycarbonate |
|---|
| Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|
| Operating Humidity | 0–90% noncondensing |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
What resolution does the UVC-G6-PRO-360-W support?
It uses a 12MP sensor and supports 3504 × 3504 video at up to 24 FPS.
What is the field of view?
The camera provides a 180° horizontal, 180° vertical, and 180° diagonal field of view.
Does the camera support night vision?
Yes. Smart IR provides night vision up to 15 m (50 ft) using four controllable IR zones.
How is the camera powered?
The camera uses PoE+ and supports a 37–57V DC input range.
Is the camera suitable for outdoor installation?
Yes. The camera has an IP66 weatherproof rating and IK10 tamper resistance.
Does it support local storage?
Yes. A MicroSD card slot is provided for local storage.
