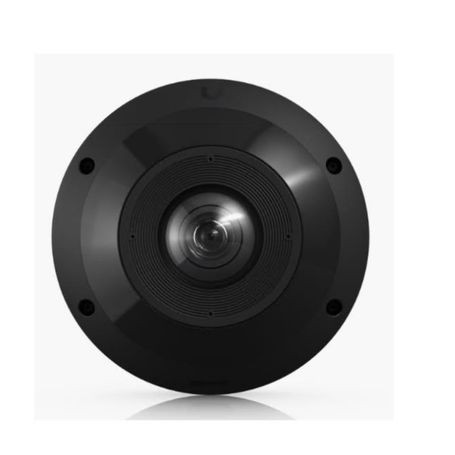

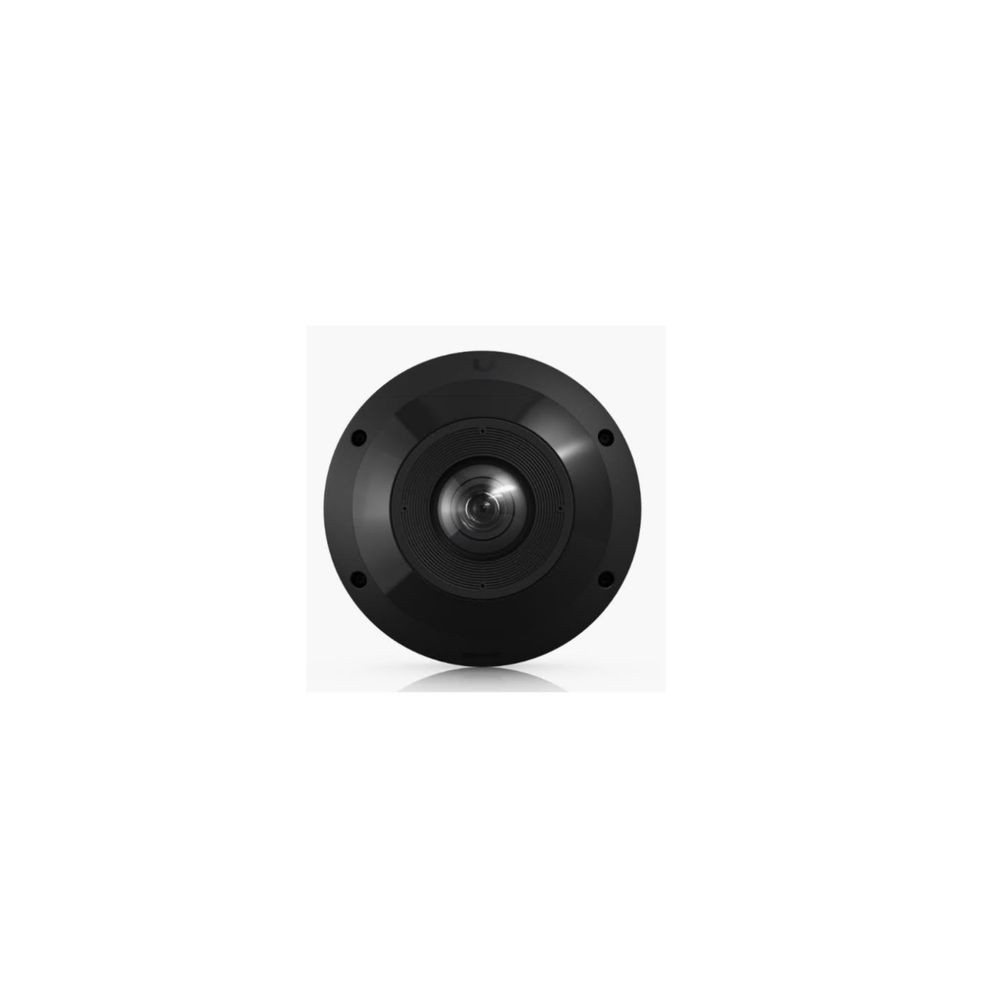

The Ubiquiti UVC-G6-PRO-360-B is a black UniFi G6 Pro 360 security camera designed for panoramic surveillance with a 180° horizontal, vertical, and diagonal field of view. It combines a 12MP fisheye sensor, digital pan-tilt-zoom functionality, smart infrared illumination, AI-powered detections, and PoE+ connectivity in a vandal-resistant outdoor enclosure.
Panoramic Imaging
The G6 Pro 360 uses a 1/1.6-inch 12MP sensor with a fisheye lens to capture 3504 × 3504 video at up to 24 FPS. Its 180° horizontal, vertical, and diagonal field of view provides comprehensive panoramic coverage from a single camera.
Smart IR and AI Detection
Integrated smart IR provides night vision up to 15 m (50 ft) using four controllable IR illumination zones. The camera supports smart detections for people, vehicles, and animals, allowing supported UniFi Protect deployments to identify relevant activity across the panoramic image.
Network, Power and Storage
The camera provides a 10/100 MbE RJ45 network interface and uses PoE+ for power and connectivity. Maximum power consumption is 13.5W. A MicroSD card slot provides local storage expansion.
Durability and Installation
The G6 Pro 360 has an IP66 weatherproof rating and IK10 tamper-resistance rating. The included surface mount supports installation, while optional mounting accessories include a junction box, arm mount, dual mount, and flush mount.
Key Features
- 12MP panoramic imaging with 180° field of view
- Digital pan-tilt-zoom functionality
- 15 m smart IR night vision with four controllable zones
- People, vehicle, and animal smart detections
- IP66 weatherproofing and IK10 tamper resistance
Applications
- Commercial and enterprise surveillance
- Large-area indoor and outdoor monitoring
- Building entrances and common areas
- Retail and facility security
- Locations requiring panoramic coverage from a single camera
DC Supplies Product Note
The G6 Pro 360 provides 180° panoramic coverage from a single 12MP sensor, reducing the need for multiple overlapping cameras in applications where a broad hemispherical view is appropriate. Installation should account for the camera's fisheye perspective and mounting position.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-G6-PRO-360-B |
|---|
| Product Type | 12MP Panoramic PoE Security Camera |
|---|
| Product Line | UniFi G6 Pro 360 |
|---|
| Color | Black |
|---|
| Resolution | 12MP, 3504 × 3504 |
|---|
| Maximum Frame Rate | 24 FPS |
|---|
| Image Sensor | 1/1.6-inch 12MP |
|---|
| Lens | Fisheye |
|---|
| Field of View | 180° H × 180° V × 180° D |
|---|
| IR Night Vision | 15 m (50 ft) |
|---|
| IR Configuration | Smart IR, 4 controllable zones |
|---|
| Smart Detections | People, vehicles, animals |
|---|
| Networking Interface | 1 × 10/100 MbE RJ45 |
|---|
| Power Method | PoE+ |
|---|
| Maximum Power Consumption | 13.5W |
|---|
| Supported Voltage | 37–57V DC |
|---|
| Audio | Two-way audio |
|---|
| Local Storage | MicroSD card |
|---|
| Weatherproofing | IP66 |
|---|
| Tamper Resistance | IK10 |
|---|
| Mounting | Surface mount included; optional specialized mounts |
|---|
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|
| Mount Material | Polycarbonate |
|---|
| Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|
| Operating Humidity | 0–90% noncondensing |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
What resolution does the UVC-G6-PRO-360-B support?
The camera uses a 12MP sensor and records at 3504 × 3504 resolution with a maximum frame rate of 24 FPS.
What is the field of view?
The G6 Pro 360 provides a 180° horizontal, 180° vertical, and 180° diagonal field of view.
Does the camera support night vision?
Yes. Smart IR provides night vision up to 15 m (50 ft) with four controllable IR illumination zones.
How is the camera powered?
The camera uses PoE+ and supports an input voltage range of 37–57V DC.
Is the camera suitable for outdoor installation?
Yes. It has an IP66 weatherproof rating and an IK10 tamper-resistance rating.
Does it support local storage?
Yes. The camera includes a MicroSD card slot for local storage expansion.
