Overview

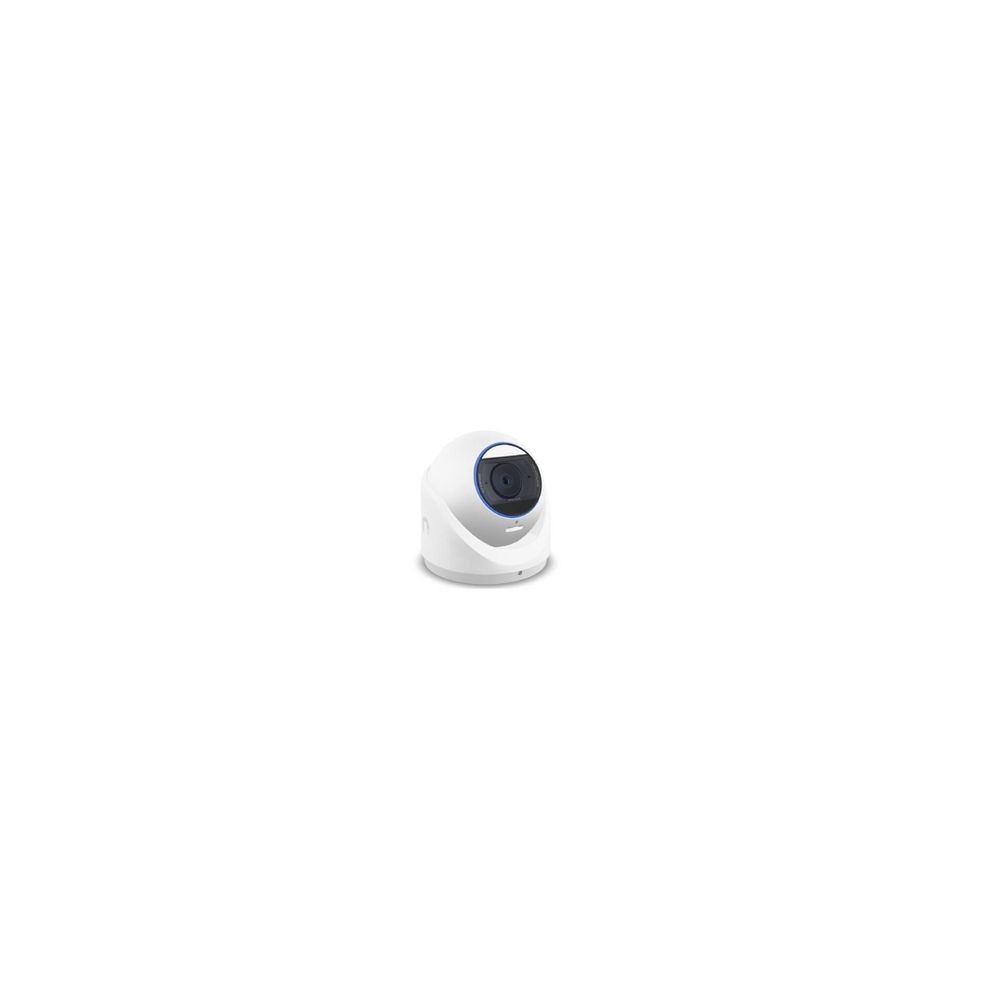

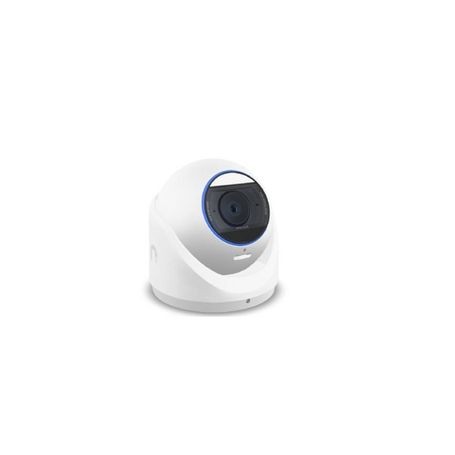

The Ubiquiti UVC-G6-PRO-TURRET-W is a UniFi G6 Pro Turret security camera designed for high-resolution indoor and outdoor surveillance. It combines an 8MP 4K image sensor, 2.36x optical zoom, adaptive IR illumination, and onboard AI-powered detection capabilities in a PoE+ turret form factor.
Imaging and Optics
The camera uses a 1/1.2-inch 8MP sensor and a variable focal-length lens covering 5.85–13.8 mm with an f/1.5–f/2.9 aperture. It records at up to 30 FPS at 3840 × 2160 resolution and provides wide and telephoto viewing modes.
AI and Night Vision
The G6 Pro Turret supports smart detection of people, vehicles, and animals, along with face recognition and license plate recognition. Built-in adaptive IR LED illumination and an IR cut filter provide night vision up to 40 m (131 ft).
Network and Audio
The camera uses a Gigabit Ethernet RJ45 interface and PoE+ for network connectivity and power. Two-way audio is supported for compatible UniFi Protect deployments.
Key Features
- 4K video with 8MP 1/1.2-inch image sensor
- 2.36x optical zoom with 5.85–13.8 mm lens
- 40 m (131 ft) adaptive IR night vision
- Face recognition, license plate recognition, and smart detections
- IP66 weatherproofing with IK04 tamper resistance
Applications
- Indoor and outdoor security monitoring
- Commercial and enterprise surveillance
- Building entrances and perimeter monitoring
- Vehicle and license plate monitoring
- UniFi Protect camera deployments
DC Supplies Product Note
The UVC-G6-PRO-TURRET-W uses PoE+ and a Gigabit Ethernet connection, making a compatible PoE+ network switch or injector an important consideration when planning installation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UVC-G6-PRO-TURRET-W |
|---|
| Product Type | 4K PoE+ Turret Security Camera |
|---|
| Product Line | UniFi Protect |
|---|
| Resolution | 8MP 3840 × 2160 |
|---|
| Maximum Frame Rate | 30 FPS |
|---|
| Image Sensor | 1/1.2-inch 8MP |
|---|
| Lens | 5.85–13.8 mm, f/1.5–f/2.9 |
|---|
| Optical Zoom | 2.36x |
|---|
| Wide Field of View | H: 113.8°, V: 61.9°, D: 134° |
|---|
| Tele Field of View | H: 45.5°, V: 25.8°, D: 52° |
|---|
| IR Night Vision | 40 m (131 ft) |
|---|
| Smart Detections | People, Vehicles, Animals |
|---|
| Face Recognition | Yes |
|---|
| License Plate Recognition | Yes |
|---|
| Audio | Two-way audio |
|---|
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
|---|
| Power Method | PoE+ |
|---|
| Supported Voltage Range | 42.5–57 V DC |
|---|
| Maximum Power Consumption | 15 W |
|---|
| Storage Expansion | MicroSD card |
|---|
| Weatherproofing | IP66 |
|---|
| Tamper Resistance | IK04 |
|---|
| Enclosure Material | Aluminum alloy, polycarbonate |
|---|
| Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|
| Operating Humidity | 0–90% noncondensing |
|---|
| Mounting | Ceiling or wall mount; arm, pendant, and junction box mounts optional |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
What is the Ubiquiti UVC-G6-PRO-TURRET-W?
It is a UniFi G6 Pro Turret 4K security camera with an 8MP sensor, optical zoom, IR night vision, and AI-powered detection features.
What resolution does the G6 Pro Turret support?
The camera supports 3840 × 2160 4K video resolution at up to 30 FPS.
How far can the camera see at night?
Ubiquiti specifies adaptive IR night vision up to 40 m (131 ft).
Does the camera support optical zoom?
Yes. The G6 Pro Turret provides 2.36x optical zoom through its 5.85–13.8 mm variable focal-length lens.
What network and power connection does it use?
The camera uses a Gigabit Ethernet RJ45 connection and PoE+ for power.
