SonicWall 03-SSC-3018 TZ570 Gen 7 Security Appliance View larger

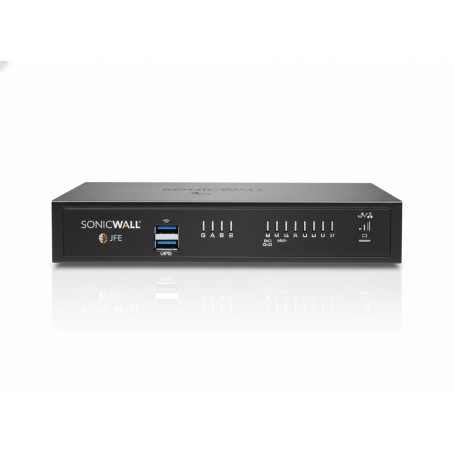

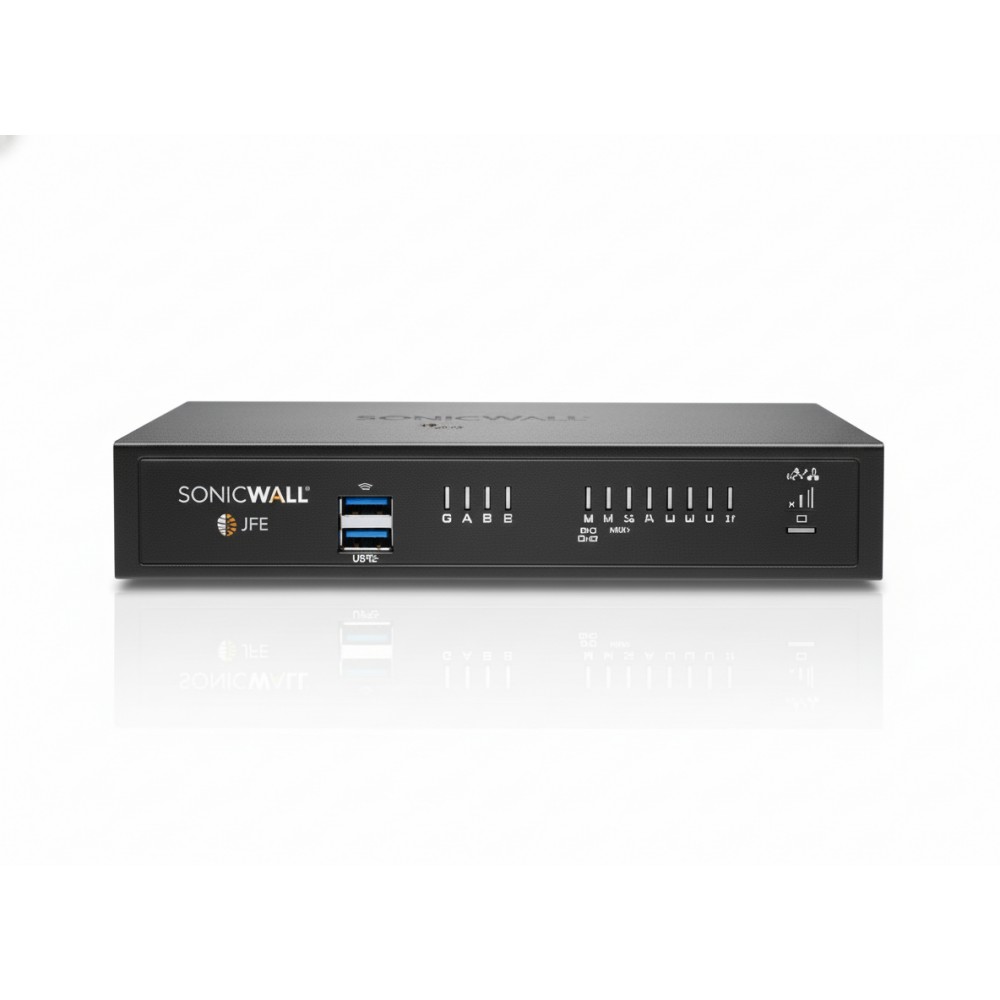

SonicWall 03-SSC-3018 TZ570 Gen 7 Security Appliance

03-SSC-3018

New

"SonicWall TZ570 NGFW with 4 Gbps firewall."

×




Detailed Specifications

SonicWall 03-SSC-3018 TZ Series (Gen 7) 4 Gbps Firewall

Overview

The SonicWall TZ570, identified by part number 03-SSC-3018, is a robust next-generation firewall (NGFW) designed to provide comprehensive security for small to mid-sized organizations and distributed enterprise environments with SD-Branch locations. As a key component of the SonicWall TZ Series (Gen 7), this desktop-form-factor appliance delivers industry-validated security efficacy paired with exceptional price-performance. It is engineered to address the evolving threat landscape, including growing web encryption and high-speed mobile connectivity, by offering automated, real-time breach detection and prevention capabilities. Equipped with the powerful SonicOS 7.0 operating system, the TZ570 integrates advanced security, networking, and management functionalities within a modern user interface. This includes integrated SD-WAN, which enhances network resilience and optimizes bandwidth across multiple sites, a crucial feature for geographically dispersed operations. The appliance supports high-speed virtual private networking (VPN) for secure remote access and site-to-site connectivity, ensuring business continuity and secure data transmission. Furthermore, its highly scalable architecture boasts high port density, including 10 Gigabit Ethernet interfaces, and features both built-in and expandable storage up to 256GB for extensive logging, reporting, and caching. Management is simplified through a single-pane-of-glass approach, compatible with SonicWall Network Security Manager (NSM), CLI, SSH, Web UI, GMS, and REST APIs, allowing for efficient administration whether locally or in the cloud. The 03-SSC-3018 bundle often includes an Advanced Edition security suite, featuring advanced threat protection services like Capture Advanced Threat Protection (ATP) with Real-Time Deep Memory Inspection (RTDMI), gateway anti-virus, anti-spyware, and intrusion prevention. These layered defenses work in concert to protect against known and unknown threats, including zero-day attacks and ransomware, by meticulously inspecting traffic at the gateway without compromising performance. Its comprehensive feature set makes it an ideal solution for organizations requiring strong security, high-speed connectivity, and streamlined management in a compact form factor.

Key Features

  • Integrated SD-WAN for optimized network resilience and bandwidth use.
  • Advanced threat protection with Capture ATP and RTDMI technology.
  • High-speed 4.0 Gbps firewall throughput for demanding network traffic.
  • Robust VPN capabilities supporting 200 site-to-site tunnels.
  • Centralized management via SonicOS 7.0 with modern UI/UX.

Specifications

SpecificationValue
Brand SonicWall
Part Number 03-SSC-3018
Product Type Next-Generation Firewall
Series TZ Series (Gen 7)
Height 1.4 inches
Width 8.9 inches
Depth 5.9 inches
Weight 2.14 lbs
Firewall Throughput 4.0 Gbps
Threat Prevention Throughput 2.0 Gbps
IPS Throughput 2.5 Gbps
Anti-Malware Throughput 2.0 Gbps
DPI SSL Throughput 750 Mbps
IPSec VPN Throughput 1.8 Gbps
Max Connections (SPI) 1,250,000
Max Connections (DPI) 400,000
Connections per Second 16,000
Site-to-Site VPN Tunnels 200
SSL VPN Licenses 2 (200 max)
IPSec VPN Clients 10 (500 max)
VLAN Interfaces 256
Network Interface Ports 8x1GbE, 2x5GbE SFP+, 2 USB 3.0, 1 Console
Operating System SonicOS 7.0
Single Sign-On (SSO) Users 2,500
Supported Access Points (Max) 32
Storage Built-in, expandable to 256GB
