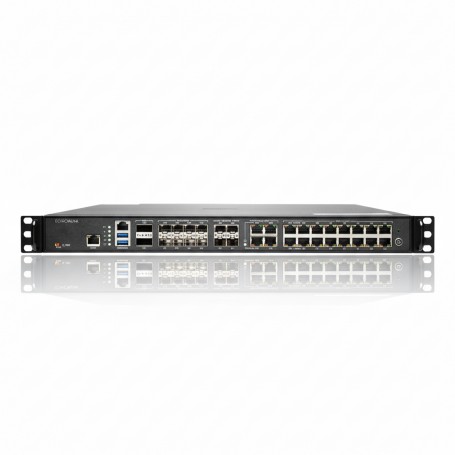

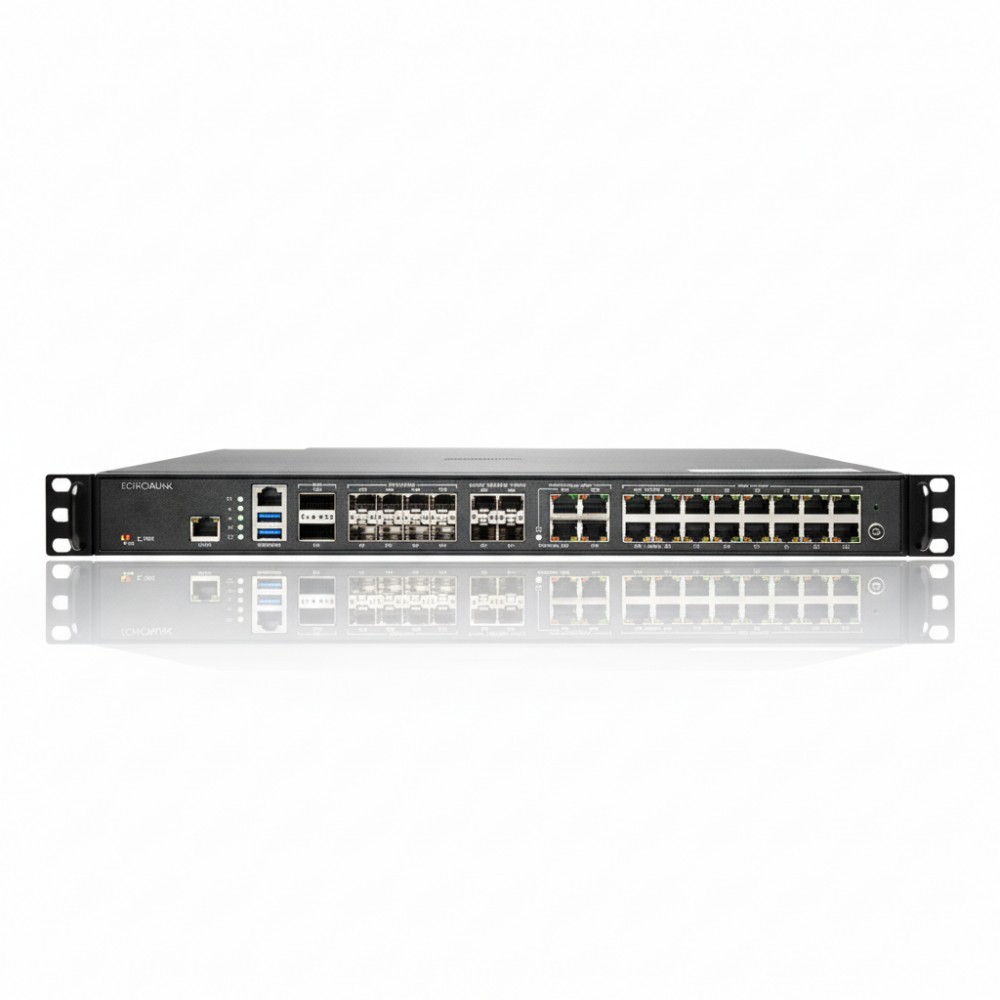

SonicWall 03-SSC-2988 NSa 6700 Network Security Firewall Appliance View larger

SonicWall 03-SSC-2988 NSa 6700 Network Security Firewall Appliance

03-SSC-2988

New

"SonicWall NSA 6700 36Gbps NGFW appliance"

×




Detailed Specifications

SonicWall 03-SSC-2988 NSA 6700 36Gbps Next-Gen Firewall

Overview

The SonicWall 03-SSC-2988 represents a bundled offering for the robust SonicWall NSA 6700, a high-performance Next-Generation Firewall (NGFW) meticulously engineered for the demanding security requirements of medium to large-sized enterprises and distributed environments. This specific part number includes the appliance and the "Secure Upgrade Essential Edition" with a three-year subscription to essential security services, providing comprehensive threat protection. Designed to operate at the network edge, the NSA 6700 effectively safeguards critical infrastructure from a wide array of cyber threats without compromising network performance. At its core, the NSA 6700 leverages multi-gigabit threat prevention capabilities, featuring a formidable 36 Gbps firewall throughput and 19 Gbps for threat prevention. It integrates advanced security technologies such as Reassembly-Free Deep Packet Inspection (RFDPI) and Real-Time Deep Memory Inspection (RTDMI), enabling real-time detection and blocking of zero-day and sophisticated malware, including encrypted threats. The appliance is equipped with a high-density port configuration, supporting a mix of 40GbE, 25GbE, and 10GbE interfaces, ensuring flexible and future-proof connectivity options for evolving network architectures. Physically, the SonicWall NSA 6700 is designed as a 1U rack-mountable unit, ideal for deployment in data centers, network closets, or main communication rooms. Its architecture supports high availability through redundant power supplies, crucial for maintaining continuous network uptime. Management is streamlined via the intuitive SonicOS 7 operating system, offering a single-pane-of-glass interface for comprehensive oversight and control of security policies, system health, and network traffic across the entire infrastructure.

Key Features

  • Multi-gigabit 36Gbps firewall throughput
  • High-density 40GbE, 25GbE, 10GbE ports
  • Advanced threat prevention (DPI, RTDMI)
  • Integrated Secure SD-WAN capabilities
  • Dual redundant power supplies for uptime

Specifications

SpecificationValue
Brand SonicWall
Part Number 03-SSC-2988
Product Type Next-Generation Firewall Appliance
Series NSa 6700
Height 1.8 in
Width 16.9 in
Depth 18.1 in
Weight 17.9 lbs
Max Firewall Throughput 36 Gbps
Threat Prevention Throughput 19 Gbps
IPS Throughput 20 Gbps
Anti-Malware Throughput 18.5 Gbps
TLS/SSL Inspection Throughput 9 Gbps
VPN Throughput (IPSec) 19 Gbps
Max Connections (SPI) 8,000,000
New Connections/sec 228,000/sec
Network Interfaces 2x40G, 8x25G, 4x10G SFP+, 4x10G Cu, 16x1G Cu
Storage 256GB M.2 (up to 1TB)
Operating System SonicOS 7
Max Access Points Supported 512
Redundant Power Supply Yes
Heat Dissipation 474.67 BTU/h
